Round Sliding Glass Electric Door Motor / Door Lock Actuator Motor CE CCC SGS
Round Sliding Glass Electric Door Motor / Door Lock Actuator Motor CE CCC SGS
Round Sliding Glass Electric Door Motor / Door Lock Actuator Motor CE CCC SGS
Round Sliding Glass Electric Door Motor / Door Lock Actuator Motor CE CCC SGS
Round Sliding Glass Electric Door Motor / Door Lock Actuator Motor CE CCC SGS
Round Sliding Glass Electric Door Motor / Door Lock Actuator Motor CE CCC SGS
Specifications
Brand Name :
CIROLLA
Model Number :
418
Certification :
CE/CCC/ SGS
Place of Origin :
Zhejiang,China
MOQ :
300PCS
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
50,000pcs/month
Delivery Time :
25-30days
Packaging Details :
Standard export carton or pallet,10pcs/carton, weight 1kg
Price :
Consultation get the latest price
Voltage :
24V
Power :
40W
Door Open style :
Sliding
Description

Round Electric Sliding Glass Door Motor Heavy Duty 24V DC Brushless​

Quick Detail:

Code: 4008 Type: Brushless Operation Voltage: 24VDC Power: 40W Rotate Direction: CW &CCW

Application: Automatic door Door Open style: Sliding Opening type: With Remote Control

Functional: Automatic operation/hold-open/closed/half-open

Security: Automatic stop/reverse during opening or closing

Door Weight Bearable: 300kg /2 Leaves Door Width: 650~1600mm

Environment temperature: -20 ~ +50ºC Lifetime: 6 million times

Description:

Automatic door system is totally micro-computer optimized. Door leaf position setting and adjustment, slide distance setting and adjustment, door leaf opening/closing speed setting and adjustment is accurately controlled by microcomputer controller.

Brushless motor provides power for automatic sliding doors, with silent operation, has big torque, long service life and high efficiency. It adopts European technology to integrate motor with gear box, which offers strong driving and reliable operation and increased power output, it can adapt to a large doors. Helical gear transmission in the gear box ensures the stable and reliable operation, even used for heavy door, the whole system operates easily.

Applications:

Electric sliding door motor can be used on any kinds of Automatic doors: Sliding Door, Swing Door, Curved Door, Folding Door, Hermetical Door, Telescopic Door, Panic Door, Revolving Door, and Hospital, which are widely used in Hotel, Hospital, Shopping Mall, Bank, Commercial office building, etc.

Specifications:

Performance data of Electric Sliding Door Motor:

Code 418
Type Brushless
Voltage 24VDC
Power 40W
No-load speed 230rpm
On-load speed 180rpm
Noise level ≤50dB
Protection class IP44
Gear Ratio 1:15
Weight 1kg
Lifetime 6 million times
Application Automatic door

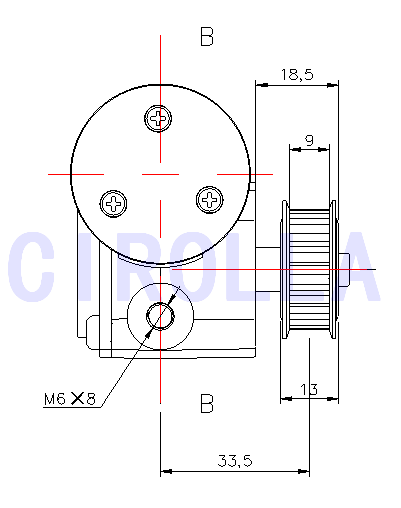

Outline drawings of Electric Sliding Door Motor:

Round Sliding Glass Electric Door Motor / Door Lock Actuator Motor CE CCC SGSRound Sliding Glass Electric Door Motor / Door Lock Actuator Motor CE CCC SGS

Round Sliding Glass Electric Door Motor / Door Lock Actuator Motor CE CCC SGS

Electric Sliding Door Application Examples:

Round Sliding Glass Electric Door Motor / Door Lock Actuator Motor CE CCC SGS
