24VDC 300W Permanent Magnet DC Motor , High Power Motor For Electric Wheelchair
24VDC 300W Permanent Magnet DC Motor , High Power Motor For Electric Wheelchair
24VDC 300W Permanent Magnet DC Motor , High Power Motor For Electric Wheelchair
24VDC 300W Permanent Magnet DC Motor , High Power Motor For Electric Wheelchair
24VDC 300W Permanent Magnet DC Motor , High Power Motor For Electric Wheelchair
24VDC 300W Permanent Magnet DC Motor , High Power Motor For Electric Wheelchair
24VDC 300W Permanent Magnet DC Motor , High Power Motor For Electric Wheelchair
24VDC 300W Permanent Magnet DC Motor , High Power Motor For Electric Wheelchair
Specifications
Brand Name :
CIROLLA
Model Number :
5007
Certification :
CE/CCC/ SGS
Place of Origin :
Zhejiang, China
MOQ :
100PCS
Price :
Consultation get the latest price
Payment Terms :
Western Union,, T/T, D/P
Supply Ability :
50,000pcs/month
Delivery Time :
10-15days
Packaging Details :
Standard export carton or pallet,1set/carton
Voltage :
24V
Power :
300W
Type :
Brush dc motor
colour :
black
Description

Motor for electric wheelchair High power, high torque DC brush motor 24VDC 300W

Quick Detail:

Code: 5007 Type: Brush dc motor Rated Voltage: 24VDC Rated Power: 300W Rotate Direction: CW &CCW

Application: Electric wheelchair

Rated speed:5300RPM

Performance data of Electric wheelchair motor :

Code Voltage Power Speed Current(max) Noise(max) Ratio Brake
VDC W RPM A dB
5007 24 300 5300+100 4.5 65 1.25 24VDC,05.A, 20kgf-cm

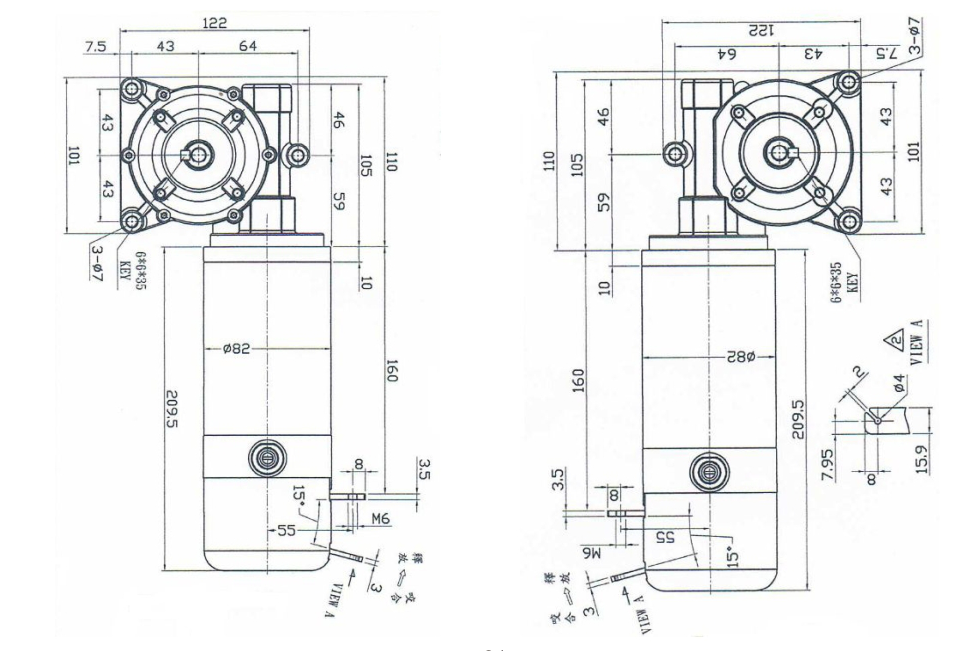

Outline drawings of Electric wheelchair motor :

24VDC 300W Permanent Magnet DC Motor , High Power Motor For Electric Wheelchair

Product detail drawing:

24VDC 300W Permanent Magnet DC Motor , High Power Motor For Electric Wheelchair24VDC 300W Permanent Magnet DC Motor , High Power Motor For Electric Wheelchair

Application Examples:

24VDC 300W Permanent Magnet DC Motor , High Power Motor For Electric Wheelchair
