Specifications
Brand Name :
CIROLLA
Model Number :
413
Certification :
CE/CCC/ SGS
Place of Origin :
Zhejiang, China
MOQ :
50pcs
Price :
Consultation get the latest price
Payment Terms :
T/T,L/C, Western Union
Supply Ability :
50,000pcs/month
Delivery Time :
7-10days
Packaging Details :
Standard export carton or pallet,10pcs/carton, weight 2.5kg
Voltage :
24V
Power :
75W
Door Open style :
Slidin
colour :
auratus
Description

Round Electric Sliding Glass Door Motor Heavy Duty 24V DC Brushless​

Quick Detail:

Code: 413 Type: Brushless Operation Voltage: 24VDC Power: 75W Rotate Direction: CW &CCW

Application: Automatic door Door Open style: Sliding Opening type: With Remote Control

Functional: Automatic operation/hold-open/closed/half-open

Security: Automatic stop/reverse during opening or closing

Door Weight Bearable: 300kg /2 Leaves Door Width: 650~1600mm

Environment temperature: -10 ~ +55ºC Lifetime: 6 million times

Applications:

Electric sliding door motor can be used on any kinds of Automatic doors: Sliding Door, Swing Door, Curved Door, Folding Door, Hermetical Door, Telescopic Door, Panic Door, Revolving Door, and Hospital, which are widely used in Hotel, Hospital, Shopping Mall, Bank, Commercial office building, etc.

Specifications:

Performance data of Electric Sliding Door Motor:

Code 413
Type Brushless
Voltage 24VDC
Power 75W
No-load speed 150rpm
On-load speed 120rpm
Noise level ≤50dB
Protection class IP44
Gear Ratio 1:15
Weight 2.5kg
Lifetime 6 million times
Application Automatic door

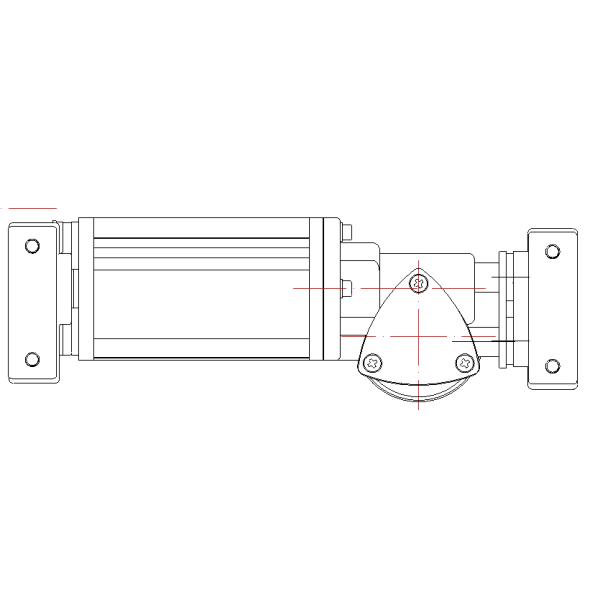

Outline drawings of Electric Sliding Door Motor:

Electric Round Glass Automatic Sliding Door Motor Heavy Duty 24V DC Brush Less 75W

Electric Round Glass Automatic Sliding Door Motor Heavy Duty 24V DC Brush Less 75W

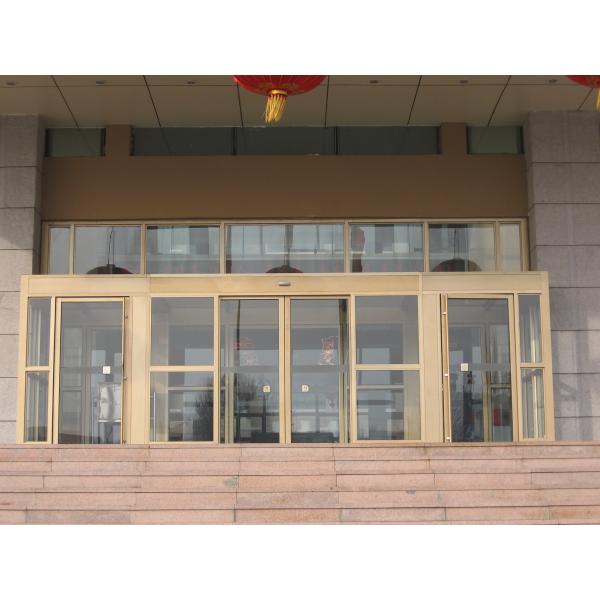

Electric Sliding Door Application Examples:

Electric Round Glass Automatic Sliding Door Motor Heavy Duty 24V DC Brush Less 75W
