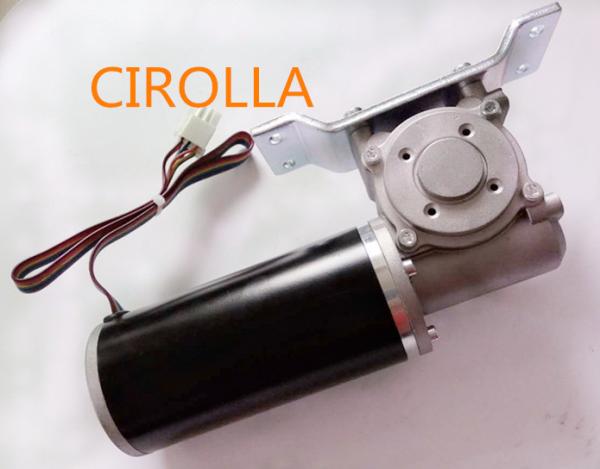

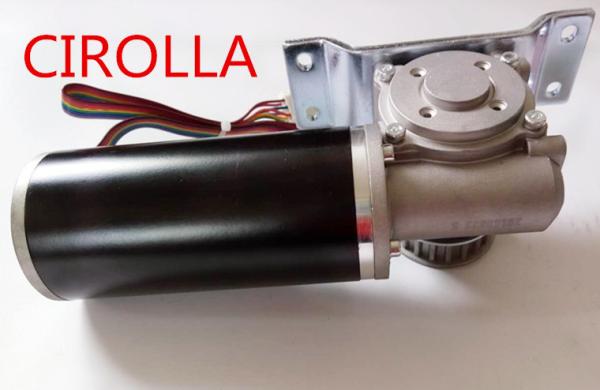

Round And Black DC Power Sliding Door Motor Light Weight And Low Noise
Round And Black DC Power Sliding Door Motor Light Weight And Low Noise
Round And Black DC Power Sliding Door Motor Light Weight And Low Noise
Round And Black DC Power Sliding Door Motor Light Weight And Low Noise
Round And Black DC Power Sliding Door Motor Light Weight And Low Noise
Round And Black DC Power Sliding Door Motor Light Weight And Low Noise
Specifications
Brand Name :
CIROLLA
Model Number :
4001
Certification :
CCC/CE/SGS
Place of Origin :
Zhejiang, China
MOQ :
300pcs
Price :
usd
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50000/month
Delivery Time :
15 working days
Packaging Details :
standard carton
shape :
round
color :
black
power :
100W
voltage :
24VDC
No load speed :
220 rpm
On load speed :
180 rpm
Description

Round and Black DC MOTOR of High Quality , Light Weight and Low Noise with CCC/CE/SGS cerficate

Description:

The advanced brush dc motor supported by intelligent Honeywell software can self-learn the stroke. The brush motor and the worm-reduction gear are integrated together, with advantageous features such as higher efficiency, larger torque and longer life span. The motor noise is extremely low because of its precise manufacturing technology and direct driving design. The motor can lock automatically if there is no triggering signal. The powerful closing force keeps the door shut fast.

Applications:

This kind of brush gear dc motors are used for Automatic sliding door operators, interior door operators, telescopic door operators, automatic swing door operators, emergency evacuation automatic doors and curved doors, which are widely used in hotels, banks, airports, commercial buildings, hospitals and factories.

Specifications:

Round And Black DC Power Sliding Door Motor Light Weight And Low Noise

100W 24VDC PMDC Motor specs

Type Brush
Voltage 24VDC
Power 100W
No load Speed 220rpm
No load Current 1.0A
On load Speed 180rpm
On load Current 4.5A
Stall torque 17Nm
Protection class IP44
Weight 2.0kg
Encoder Honeywell 2signals,100pulse

Outline drawings of 100W 24VDC PMDC Motor:

Round And Black DC Power Sliding Door Motor Light Weight And Low Noise

Competitive Advantage:

1) Silent operation, suitable for continuous service;
2) Micro-computer controller, self setup and adjustment;
3) Automatic stop when meet obstacles during opening, automatic reverse when meet obstacles during closing;
4) Adjustable door opening speed and distance;
5) Automatic closing function after opening, auto closing time adjustable;
6) Soft start and soft closing;
7) Full open or half open optional;
8) Easy open the door leaf by hands during power off;
9) High density aluminum track, special configuration design keep in shape always;
10) Smooth operation of the track, good for continuous service, quiet operation.

Automatic sliding door Working Group:

Round And Black DC Power Sliding Door Motor Light Weight And Low Noise
