Electric motor for commercial roll up garage doors Openerator DC 24V High speed 2700RPM
Electric motor for commercial roll up garage doors Openerator DC 24V High speed 2700RPM
Electric motor for commercial roll up garage doors Openerator DC 24V High speed 2700RPM
Electric motor for commercial roll up garage doors Openerator DC 24V High speed 2700RPM
Electric motor for commercial roll up garage doors Openerator DC 24V High speed 2700RPM
Electric motor for commercial roll up garage doors Openerator DC 24V High speed 2700RPM
Specifications
Brand Name :
CIROLLA
Model Number :
4CM04400
Certification :
CE/CCC/ SGS
Place of Origin :
Zhejiang, China
MOQ :
500PCS
Price :
Negotiation
Payment Terms :
T/T,L/C, Western Union
Supply Ability :
50,000pcs/month
Delivery Time :
25-30days
Packaging Details :
Standard,10pcs/carton, weight 1.0kg
Motor Type :
Brushed PMDC
Rated Voltage :
24VDC 70W
Style :
automatic garage door opener
Input power :
AC 230V, 50HZ
Environment temperature :
-20 ~ +70ºC
Application :
Automatic Garage door
Description

Electric motor for Roll-up Garage Door Openerator DC 24V High speed 2700RPM

Description:

A garage door opener is a motorized device that opens and closes Garage Doors. Motor is the drive device of the automatic garage door system.The typical electric garage door opener consists of a power unit that contains the electric motor. The power unit attaches to a track. Recent innovation in the garage door opener is a fingerprint-based wireless keypad. More sophisticated features are also available,such as an integrated carbon monoxide sensor to open the door in case of the garage being flooded with exhaust fumes.

Applications:

Widely used in automation roll-up garage door opener.

Specifications:

Motor Performance date:

Type

Brush

Voltage

24VDC

Power

70W

No load Speed

2700rpm

No load Current

0.7A

On load Speed

2100rpm

On load Current

2.7A

Stall torque

≥655m.Nm

Protection class

IP44

Weight

1.2kg

Application

garage door opener

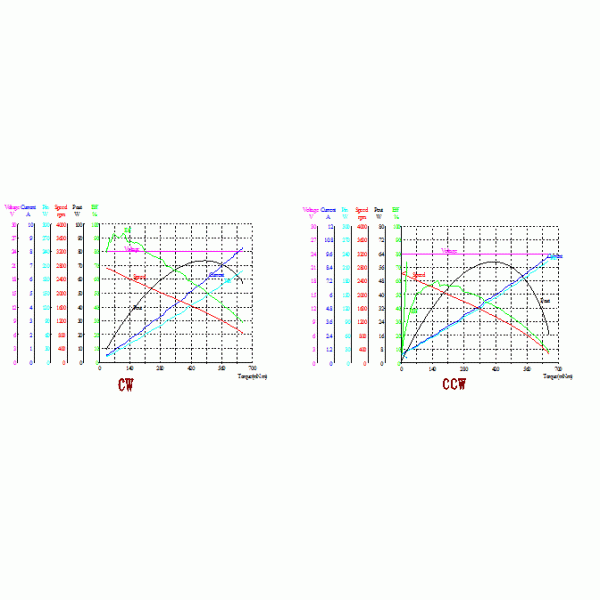

Motor Characteristic Curves:

Electric motor for commercial roll up garage doors Openerator DC 24V High speed 2700RPM

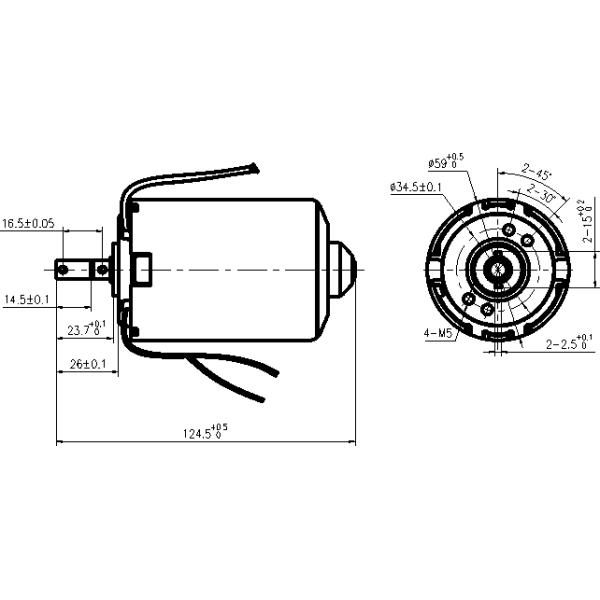

Motor Outline drawings:

Electric motor for commercial roll up garage doors Openerator DC 24V High speed 2700RPM

Competitive Advantage:

1. Doors are easily opened by hand by the releasing system in case of power off

2. Simple programming of operation settings

3. PC plastic shell, light and durable

4 Mechanism limit travel, convenient operation and easy setting

5. Turn on control box light automatically when you enter a dark room---hands free
