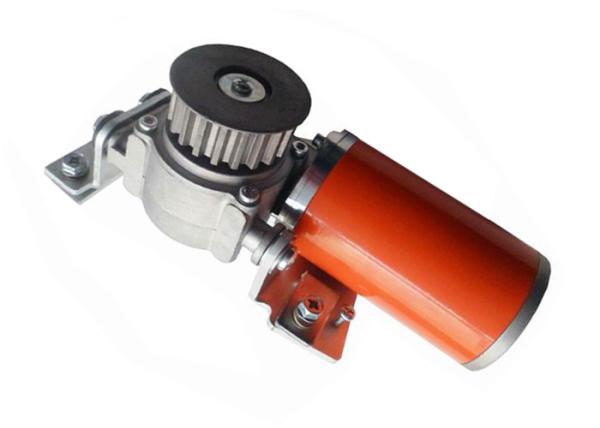

Long Lifespan Brushless DC Motor 75W for Heavy Duty Sliding Door
Long Lifespan Brushless DC Motor 75W for Heavy Duty Sliding Door
Long Lifespan Brushless DC Motor 75W for Heavy Duty Sliding Door
Long Lifespan Brushless DC Motor 75W for Heavy Duty Sliding Door
Long Lifespan Brushless DC Motor 75W for Heavy Duty Sliding Door
Long Lifespan Brushless DC Motor 75W for Heavy Duty Sliding Door
Specifications
Brand Name :
CIROLLA
Model Number :
4008
Certification :
CE/CCC/ SGS
Place of Origin :
Zhejiang, China
MOQ :
300PCS
Price :
Negotiation
Payment Terms :
T/T,L/C, Western Union
Supply Ability :
50,000pcs/month
Delivery Time :
25-30days
Packaging Details :
Standard export carton or pallet,10pcs/carton, weight 2.5kg
Motor Type :
Brushless
Voltage& Power :
24VDC, 100W
Function :
Automatic Sliding doors
Working Temperature :
-25~ c+55 c
Description

Long Lifespan Brushless DC Motor 75W for Heavy Duty Sliding Door ​

Description:

Brushed DC motors develop a maximum torque when stationary, linearly decreasing as velocity increases.Some limitations of brushed motors can be overcome by brushless motors; they include higher efficiency and a lower susceptibility to mechanical wear. These benefits come at the cost of potentially less rugged, more complex, and more expensive control electronics.

Applications:

Brushless motors are ideally suited for manufacturing applications because of their high power density, good speed-torque characteristics, high efficiency and wide speed ranges and low maintenance. The most common uses of brushless DC motors in industrial engineering are linear motors. servomotors, actuators for industrial robots, extruder drive motors and feed drives for CNC machine tools.

Specifications:

Brushless DC Motor:

Type

Brushless

Voltage

24VDC

Power

75W

No-load speed

150rpm

On-load speed

120rpm

Noise level

≤50dB

Protection class

IP44

Gear Ratio

1:15

Weight

2.25kg

Lifetime

3million cycles,10years

Application

Automatic door

Long Lifespan Brushless DC Motor 75W for Heavy Duty Sliding Door

Outline drawings Motor:

Long Lifespan Brushless DC Motor 75W for Heavy Duty Sliding Door

Competitive Advantage:

Advantage of a brushless motor is that it can operate at speeds above 10,000 rpm in both loaded and unloaded conditions. It is also capable of operating with less noise and electromagnetic interference than a brushed motor because its internal parts are completely enclosed.
