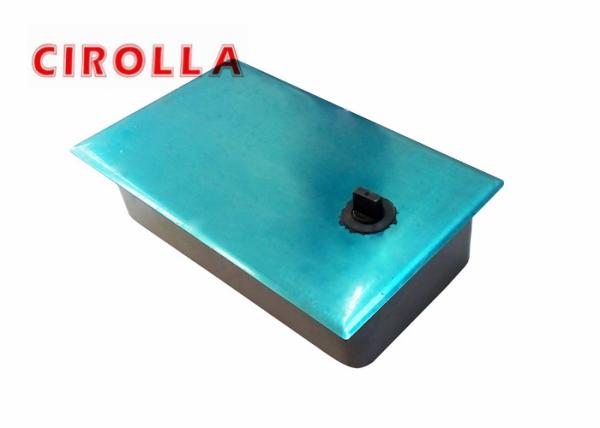

Stainless Steel 24v Brushless Motor for Floor Spring Door Operator 75W
Stainless Steel 24v Brushless Motor for Floor Spring Door Operator 75W
Stainless Steel 24v Brushless Motor for Floor Spring Door Operator 75W
Stainless Steel 24v Brushless Motor for Floor Spring Door Operator 75W
Specifications
Brand Name :
CIROLLA
Model Number :
412
Certification :
CE/CCC/ SGS
Place of Origin :
Zhejiang, China
MOQ :
300PCS
Price :
Negotiation
Payment Terms :
T/T,L/C, Western Union
Supply Ability :
50,000pcs/month
Delivery Time :
25-30days
Packaging Details :
Standard,10pcs/carton, weight 8.5kg
Motor Type :
Brushless
Type :
Door Floor spring
Material :
Stainless Steel
Color :
Silver
Function :
Automatic Door Operators
Description

Stainless Steel 24v Brushless Motor for Floor Spring Door Operator 75W​

Applications:

Brushless motors are ideally suited for manufacturing applications because of their high power density, good speed-torque characteristics, high efficiency and wide speed ranges and low maintenance. The most common uses of brushless DC motors in industrial engineering are linear motors. servomotors, actuators for industrial robots, extruder drive motors and feed drives for CNC machine tools.

Stainless Steel 24v Brushless Motor for Floor Spring Door Operator 75W

Description:

Brushless DC electric motor (BLDC motors, BL motors) also known as electronically commutated motors (ECMs, EC motors) are synchronous motors that are powered by a DC electric source via an integrated inverter/switching power supply, which produces an AC electric signal to drive the motor.

Specifications:

Motor data:

Type

Brushless

Voltage

24VDC

Power

75W

No-load speed

9rpm

On-Load speed

7.5rpm

Noise level

≤40dB

Gear Ratio

1:248

Protection class

IP55

Weight

8.5kg

Lifetime

3million cycles,10years

Application

Automatic Floor Spring

Floor Spring Door datas:

Max door weight

250kg

Max door width

1400mm

Max torque

75Nm

Install way

Ground buried

Electronic lock output

DC 24V always open /always close contact

Open and close time

2-6 sec adjustable

Close holding time

0-30 sec adjustable

Open range

45° to 90°can be adjusted

Power

220V±10% 50-60HZ

Rated current

less than 1A

Max power consumption

35W

Pending power consumption

less than 2W

Control device

Specialized super heterodyne receivers,
effective distance more that 50mm, learn model code.

Work temperature

(-40 to +80)

Line index

continuum running 3 million with no obstacles

Protection grade

IP55

Machine size

L320mm*W185.6mm*H80mm

Controller size

L225mm*W195mm*70mm

Competitive Advantage:

Brushless DC motor’s another advantage of a brushless motor is that it can operate at speeds above 10,000 rpm in both loaded and unloaded conditions. It is also capable of operating with less noise and electromagnetic interference than a brushed motor because its internal parts are completely enclosed.
