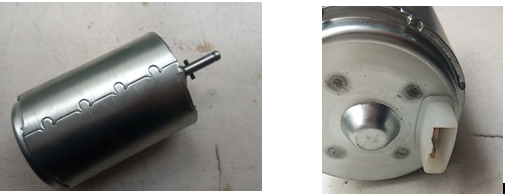

High Speed 24V Permanent Magnet Brushed DC Electric Motor 90W / 100W 2700RPM
High Speed 24V Permanent Magnet Brushed DC Electric Motor 90W / 100W 2700RPM
High Speed 24V Permanent Magnet Brushed DC Electric Motor 90W / 100W 2700RPM
High Speed 24V Permanent Magnet Brushed DC Electric Motor 90W / 100W 2700RPM
Specifications
Brand Name :
CIROLLA
Model Number :
9130
Certification :
CE/CCC/ SGS
Place of Origin :
Zhejiang, China
MOQ :
500PCS
Price :
Negotiation
Payment Terms :
T/T,L/C, Western Union
Supply Ability :
50,000pcs/month
Delivery Time :
25-30days
Packaging Details :
Standard,10pcs/carton, weight 1.5kg
Type :
DC Motor
Voltage&Power :
24VDC,90W
Construction :
Permanent Magnet
Structure and Working Principle :
Brushed
Operating Speed :
High Speed
Application :
Universal, Industrial, Household Appliances, machine power system
Description

High Speed 24V Permanent Magnet Brushed DC Electric Motor 90W / 100W 2700RPM

Description:

A permanent magnet DC motor is characterized by a linear relationship between stall torque when the torque is maximum with the shaft at standstill and no load speed with no applied shaft torque and maximum output speed . There is a quadratic power relationship between these two speed-axis points.

Applications:

PMDC motor is extensively used where small dc motors are required and also very effective control is not required, such as in automobiles starter, toys, wipers, washers, hot blowers, air conditioners, computer disc drives and in many more.

High Speed 24V Permanent Magnet Brushed DC Electric Motor 90W / 100W 2700RPM

Specifications:

PMDC motor:

Type

Brush

Voltage

24VDC

Power

90W

No load Speed

2700rpm

No load Current

13A

Stall torque

180N.cm

Protection class

IP23

Weight

1.5kg

OE No.

9 130 451 117

Motor test report:

High Speed 24V Permanent Magnet Brushed DC Electric Motor 90W / 100W 2700RPM

Motor Outline drawings:

High Speed 24V Permanent Magnet Brushed DC Electric Motor 90W / 100W 2700RPM
