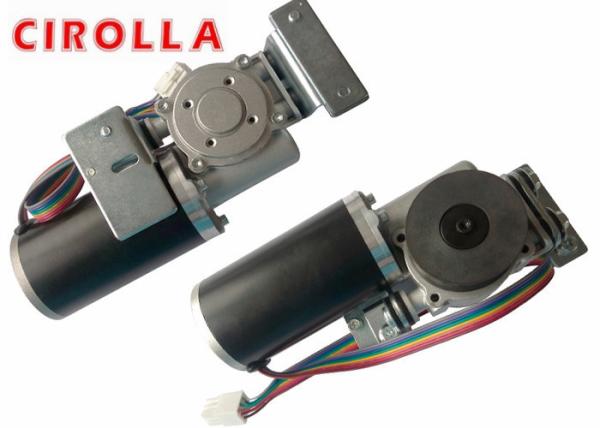

Electric Door Motor Sliding Door System Opener 280*100*90mm 2250rpm
Electric Door Motor Sliding Door System Opener 280*100*90mm 2250rpm
Electric Door Motor Sliding Door System Opener 280*100*90mm 2250rpm
Electric Door Motor Sliding Door System Opener 280*100*90mm 2250rpm
Electric Door Motor Sliding Door System Opener 280*100*90mm 2250rpm
Electric Door Motor Sliding Door System Opener 280*100*90mm 2250rpm
Electric Door Motor Sliding Door System Opener 280*100*90mm 2250rpm
Electric Door Motor Sliding Door System Opener 280*100*90mm 2250rpm
Specifications
Brand Name :
CIROLLA
Model Number :
4008
Certification :
CE/CCC/ SGS
Place of Origin :
Zhejiang, China
MOQ :
50pcs
Price :
25usd/pc
Payment Terms :
T/T,L/C, Western Union
Supply Ability :
1000pcs/day
Delivery Time :
7working days
Packaging Details :
10pcs/carton, weight 2.25kg
Motor type :
Brushless
Door Type :
Automatic Sliding doors
Dimension :
280*100*90mm
Door Weight :
1X300kg/2X150kg
Motor Speed :
2250rpm
Power&Voltage :
24VDC 75W
Description

Automatic Sliding Door System Sliding Glass Door motor Automatic Sliding Door opener

Motor functions and features:

1. We adopt brushless DC technology, service life of the brushless DC motor is longer than the brush motor, and it can be with better reliability.

2. Small volume, strong power, powerful working force

3. Ultra-quiet sound design, low noise, small vibration, we adopt the automatic lubrication technology.

4. It is made with high-strength aluminum alloy material, strong and durable.

5. It can work with the bearing metal alloy wheel driving belt, and with good quality, stability and high applicability.

6. Fully sealed structure, durable, no leaking, we adopt the rubber band to protect screws, which makes it to be with anti-pressure and weight-bearing.

7. It can work with internal security protection circuit device, even if the automatic door opens and closes frequently, it also can run with long-term no-trouble.

Description:

1. CE SGS Certificate
2. 2 years warranty
3. Weight of door leaf:150kg/leaf
4. Power:80-250V Build-in Broadband voltage 50-60HZ
5. Ultra silent

Our Services

1.We have a very good working team, producing the most top quality product for our customers.

2. We have aboundant experience of curtain and roller blind motors and so on.

3.We provide the most comfortable and timely service (Pre-sale and after-sale).

4.We have guarantee of our product if there is any problem cause by our factory

5. We can do the product as customer design and also develop new styles.

6.We have a factory, so we can provide the competitive price.

7.We provide ODM service

Technical Specification

Rang of the Door

Single-leaf

Double-leaf

Clear door opening

900-2800mm

900-2800mm

Door leaf max weight

200kg

150kg x 2

Height of track rail

125mm

Width of track rail

156mm

Power Supply

AC (AC220±10%), 50-60 Hz

Opening Speed

0.7m/s (adjustable)

Closing Speed

0.7m/s (adjustable)

Power consumption

70W

Hold-open time

0-9s (adjustable)

Ambient temperature

-20+50°C

Relative humidity(condensate)

5%-85%

Electric fuse

6.3A

Accessorial voltage

AC24V,640mA

Power supply

80VAC-15% - 260VAC+10%

Motor datas:

Type

Brushless

Voltage

24VDC

Power

75W

No-load speed

150rpm

On-load speed

120rpm

Noise level

≤50dB

Protection class

IP44

Gear Ratio

1:15

Weight

2.5kg

Lifetime

3million cycles,10years

Application

Sliding Glass door

Constructure:

Electric Door Motor Sliding Door System Opener 280*100*90mm 2250rpm

Product details:

Electric Door Motor Sliding Door System Opener 280*100*90mm 2250rpm

Production line:Electric Door Motor Sliding Door System Opener 280*100*90mm 2250rpm
