Heavy Duty Low Noise Sliding Glass Door Motor Brushless Safety with Automatic Stop

Description:

1) Input power supply AC110V-240V;
2) DC24V brushless motor

3) Door Weight 300kg/single leaf, 2X150kg/ Double leaves

4) Door Width: 650~1600mm

5) Maximum Noise below 50dB

6) Railing Type: High Strength Aluminum Alloy Rally

7) Fixed Pulley Hanging Wheel Sets/Convenient Level Adjustment/Automatic Alignment/Easy Installation

Technical details:

Motor type: brushless DC motor

Power supply / Output voltage: AC220V/DC24V

Rated power: 75W

Motor speed: 2500RPM

Output speed: 150RPM

Service life: 300million cycles

Temperature range: -10 ℃ to 55 ℃

Applications:

This Heavy duty automatic Sliding door round motor type Brushless DC Motor can be used on any kinds of Automatic doors: Sliding Door, Swing Door, Curved Door, Folding Door, Hermetical Door, Telescopic Door, Panic Door, Revolving Door, and Hospital Door etc. Which are widely used in Hotel, Hospital, Shopping Mall, Bank, Commercial office building and etc.

Specifications:

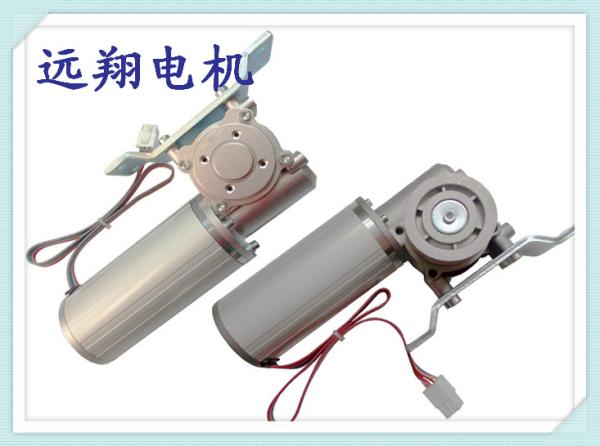

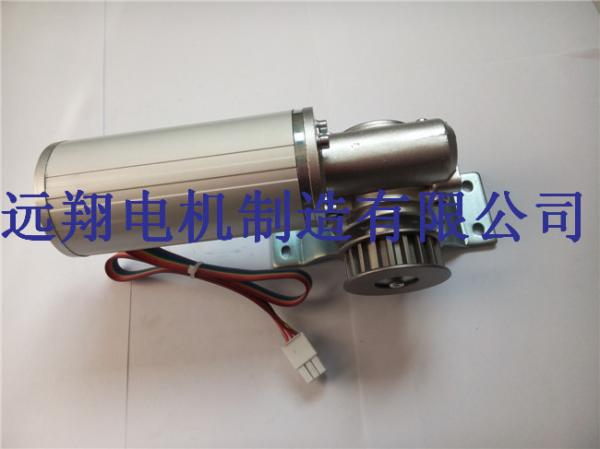

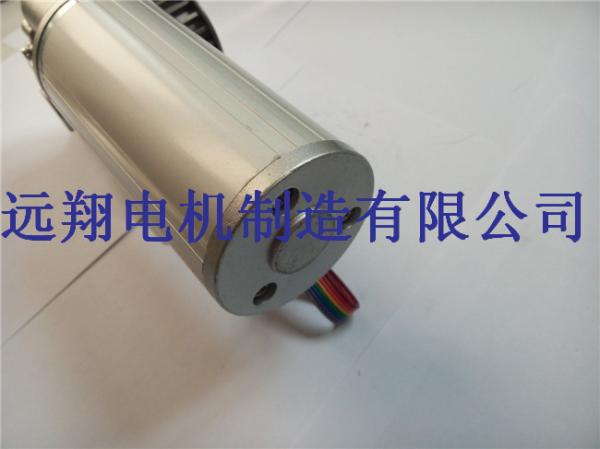

Round type Brushless dc motor:

Motor Outline drawings:

Competitive Advantage:

Round type High power automatic door motor is used for automatic sliding doors.

Motor color can be customized according to different customer requirements.

1. Brushless DC motor, small size, high power, low noise operation;

2. Automatic multi-functional motor, motor body and gear box are integerated, to avoid small belt drive vibration noise;

3. Design of worm gear transmission, high transmission efficiency, large output torque, low noise;

4. With Hall signal output, accurate control. Connection: JST terminal used in Japan;

5. Zinc alloy synchronous pulley, with the characteristics of light weight, good absorption, aging resistance, low temperature and other characteristics, effectively reduce the running process of rolling friction noise;

6. Installation is simple, safe, small size, with the installation bracket.
