70W Aluminium Sliding Door Motors SGS Certificate 2 Years Warranty
70W Aluminium Sliding Door Motors SGS Certificate 2 Years Warranty
70W Aluminium Sliding Door Motors SGS Certificate 2 Years Warranty
70W Aluminium Sliding Door Motors SGS Certificate 2 Years Warranty
70W Aluminium Sliding Door Motors SGS Certificate 2 Years Warranty
70W Aluminium Sliding Door Motors SGS Certificate 2 Years Warranty
Specifications
Brand Name :
CIROLLA
Model Number :
4004-2
Certification :
CE/CCC/ SGS
Place of Origin :
Zhejiang, China
MOQ :
50pcs
Price :
25usd/pc
Payment Terms :
T/T,L/C, Western Union
Supply Ability :
1000pcs/day
Delivery Time :
7working days
Packaging Details :
10pcs/carton, weight 2.25kg
Motor type :
Brushless
Door Type :
Sliding doors
Dimension :
280*100*90mm
Safety Detection :
Automatic Stop /Reverse during Opening or Closing
Door Weight :
1X300kg/2X150kg
Door Width :
650~1600mm
Description

DC 24V Brushless Motor Aluminium Automatic Sliding Door Operator

Description:

1. CE SGS Certificate
2. 2 years warranty
3. Weight of door leaf:150kg/leaf
4. Power:80-250V Build-in Broadband voltage 50-60HZ
5. Ultra silent

Standard Configuration

1. Motor device

2. Main controller

3. Power

4. Tension wheel device

5. Tooth device

6. Gear belt

7. Stopper

8. Aluminium track

9. Hanger device

Multiple Optional Access

Five bit program switch

Remote control handle

Electric lock

UPS battery

Safety photocell sensor

Access control system

Technical Specification

Rang of the Door

Single-leaf

Double-leaf

Clear door opening

900-2800mm

900-2800mm

Door leaf max weight

200kg

150kg x 2

Height of track rail

125mm

Width of track rail

156mm

Power Supply

AC (AC220±10%), 50-60 Hz

Opening Speed

0.7m/s (adjustable)

Closing Speed

0.7m/s (adjustable)

Power consumption

70W

Hold-open time

0-9s (adjustable)

Ambient temperature

-20+50°C

Relative humidity(condensate)

5%-85%

Electric fuse

6.3A

Accessorial voltage

AC24V,640mA

Power supply

80VAC-15% - 260VAC+10%

Competitive Advantage:

Controller:
1. With long serve life, controller Uses the advanced CPU chip processing control system.

Operating parameter be demonstrated in digital.
2. Parameter is adjusted conveniently

3. Can link to entrance manage system

The hoisting mechanisms
1. Advanced structural design , hoop always move on orbital
2. Convenient altitude control
3. The guards equipment prevented the door from derailed
4. According to your need, we make hoop of different material
5. With high intensity, even load, steady move , the hoisting mechanisms can bear 150 kilogram .
6.Power girder uses aluminium alloy material, with reasonable and credible drive structure.

7.Use life is over 1 million times of operation.

8.Doors are designed from 12mm high-quality glass, with good transparency, simple structure and luxury style.

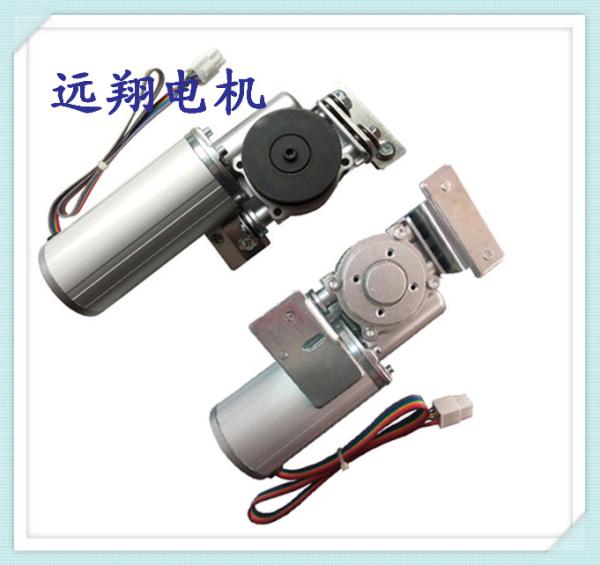

Motor datas:

Type

Brushless

Voltage

24VDC

Power

75W

No-load speed

150rpm

On-load speed

120rpm

Noise level

≤50dB

Protection class

IP44

Gear Ratio

1:15

Weight

2.5kg

Lifetime

3million cycles,10years

Application

Sliding Glass door

Motor Outline drawings:

70W Aluminium Sliding Door Motors SGS Certificate 2 Years Warranty

Automatic sliding Glass door Operator:

70W Aluminium Sliding Door Motors SGS Certificate 2 Years Warranty

CNC machining:

70W Aluminium Sliding Door Motors SGS Certificate 2 Years Warranty

Motor On-door tests:

70W Aluminium Sliding Door Motors SGS Certificate 2 Years Warranty
