Easy Installed Permanent Magnet DC Motor for Electric Sliding Door Motors 300kg
Easy Installed Permanent Magnet DC Motor for Electric Sliding Door Motors 300kg
Specifications
Brand Name :
CIROLLA
Model Number :
4002
Certification :
CE/CCC/ SGS
Place of Origin :
Zhejiang, China
MOQ :
500PCS
Price :
Negotiation
Payment Terms :
T/T,L/C, Western Union
Supply Ability :
50,000pcs/month
Delivery Time :
25-30days
Packaging Details :
Standard,10pcs/carton, weight 1.7kg
Type :
Brushless
Operation Voltage :
24VDC
Power :
60W
Rotate Direction :
CW &CCW
Application :
Automatic door
Door Open style :
Sliding
Description

Easy Installed Permanent Magnet DC Motor for Electric Sliding Door Motors 300kg

Description:

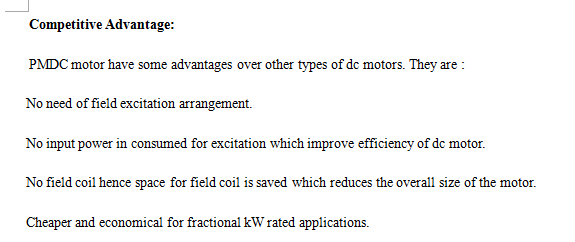

Permanent Magnet Brushed DC (PMDC) motors are the most common BDC motors found in the world.These motors use permanent magnets to produce the stator field. PMDC motors are generally used in applications involving fractional horsepower because it is more cost effective to use permanent magnets than wound stators.

Applications:

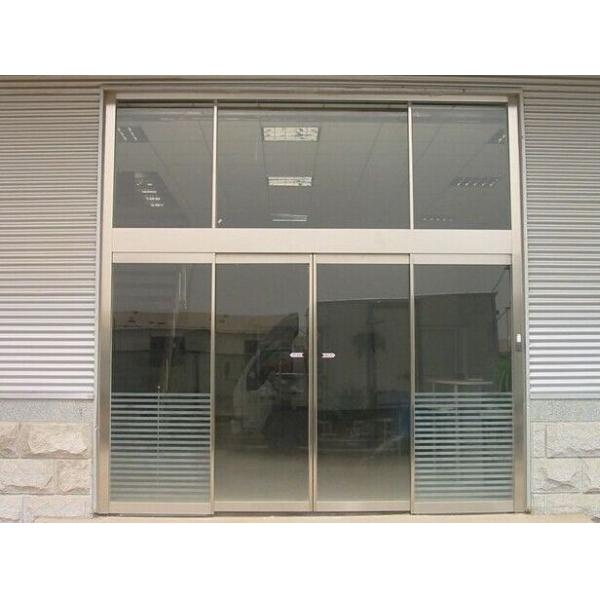

This kind of PMDC Brushed gear motor is used for Automatic Sliding Door Operators.

Easy Installed Permanent Magnet DC Motor for Electric Sliding Door Motors 300kg

Specifications:

Type

Brush

Voltage

24VDC

Power

60W

No load Speed

250rpm

No load Current

0.7A

On load Speed

200rpm

On load Current

3.5A

Stall torque

12Nm

Protection class

IP44

Weight

1.5kg

Encoder Honeywell

1signal,40pulse

Easy Installed Permanent Magnet DC Motor for Electric Sliding Door Motors 300kg
