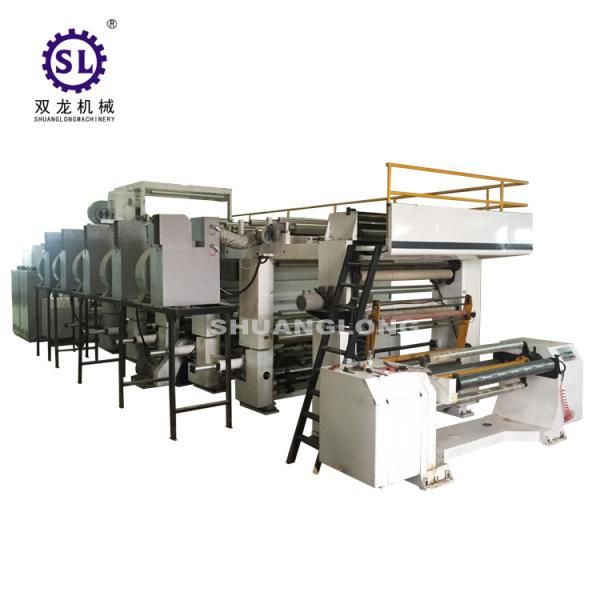

BOPP PVC High Speed Rotogravure Printing Machine 600mm / 800mm Width
BOPP PVC High Speed Rotogravure Printing Machine 600mm / 800mm Width
Specifications
Brand Name :
SL
Model Number :
SLAY-D
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Price Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5 sets per month
Packaging Details :
Export standard packing
Type :
rotogravure printing machine
Usage :
plastic film, paper printing
Printing color :
1-15 color
Power supply :
380V 50Hz
Drive type :
Electric gas or oil
Totoa power :
about 120kw
Description

BOPP PVC High Speed New Rotogravure Printing Machine

It is most reliable and heavy duty type rotogravure printing machine in China, we adopt latest Japan and European technology, use world top brand electric componnets, reasonable in price and high working performance makes it well accepted by higher grade flexible packaging making industry, if you are looking for hiqh quality and long lasting rotogravure printing machine, it is your best choice model. This series printing machine has been exported to more than 20 countries.

Features of machine:
1) The whole machine is including unwinding unit, printing unit and rewinding unit,
unwinding and rewinding can be separately, the printing color can be
increased or decreased from 4 colors to 12 colors
2) The main machine equipped with 7 motors control.

3) Each unit of computer color registration system is controlled by separating micro-
processor. Horizontal register optional.

4) Shaftless air cylinder clamping style for install printing cylinder
5) Auto splicing system works accurate and reliable, so can save the materials.

6) Printing press rubber roller, charging draw press roller are both adopted with
pneumatic control
7) Pneumatic back pressure moving doctor blade
8) Ink circulating system with air pump, viscosity controller optional.
9) Air shaft for unwinding and rewinding shaft, shaftless optional.
10) Automatic computer color registration system and picture video camera are
equipped in this type printing equipment.
11) We also provide design and printing cylinder for customers.

12) Different type of heating method so can fit for buyer's requirements.

Main Point Model SLAY-D
Printing colors 1-15 colors (based on customer requirement)
Printing material Plastic film/ Paper / Aluminum foil etc
Printing width 600mm/800mm/1000mm/1200mm
Heating way Electrical heating, Gas heating, Oil heating
Printing speed 200m/min
Total power About 220kw (8 Color)
Machine weight About 30 Ton (8 Color)
Machine size (LWH) 16500 x 3300 x 2800 (8 Color)
Unwind & Rewind Type Twin-reel rotating design (Optional disc design)
Raw material diameter 600mm (Optional 800mm or more)
Paper core diameter 76mm (Optional 152mm)
Material splicing and cutting Automatic
Tension control Dancer roller ( PLC Control)
Air shaft Shaft type air shaft
Printing Unit Printing cylinder Shaft-less type design
Printing cylinder diameter range 120-300mm (Special size possible)
Color register precision Vertical (Y-Axis) ≤±0.10mm (automatic) Horizontal (X-axis) ≤±0.10mm (Manual)
Emboss rubber roller diameter 135mm (NBR Shore (A) 60 °~ 65°)
Ink recycle Pneumatic Ink pump
Control Part Auto color register system Include
Web video inspection system Include
Water cooling system Include
7 motor drive tension system Include
Ink viscosity Not Include ( optional possible)
Reverse printing device Not Include ( optional possible)
