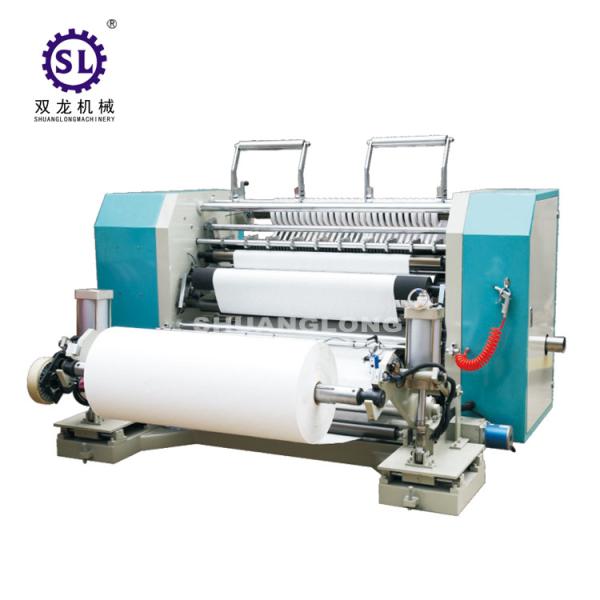

SLFQ PLC Conrol Automatic Slitting Machine for Paper and Plastic Film
SLFQ PLC Conrol Automatic Slitting Machine for Paper and Plastic Film
Specifications
Brand Name :
SL
Model Number :
SLFQ
Certification :
CE
Place of Origin :
Zhejiang, China
MOQ :
1 SET
Price :
Price Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
20SETS/MONTH
Delivery Time :
30 WORKING DAYS
Packaging Details :
Export Standard Packing
Function :
Slitting machine
Slitting Speed :
100-200m/min
Slitting Material :
Paper and plastic film
Triming :
Blowing device
Automatic :
PLC acontrol
Power :
380V 50Hz
Description

PLC Conrol Automatic Slitting Machine for Paper and Plastic Film

Quick Details

1. Material width: 1100mm

2. Unwind diameter: 800mm

3. Rewind diameter: 450mm

4. Rotary blade: 10sets

5. Razor blade: 10sets

6. Unwind penumatic loading

7. Unwind magnetic powder brake 10kg

8. Rewind magnetic cluth 10kg x 2sets

9. PLC control tension

10. Minimum width can slit: 50mm

11. Air shaft 3inch, 6inch optional

Feature

1. Main Motor equipped with inverter for speed regulation.
2. Separated General Control Cabinet, more flexible and even easier operation.
3. Automatic EPC for unwinding, photocell is suitable for tracking the edge and/or the line of material.
4. Equipped with air shaft for unwinding material loading, magnetic powder brake
5. Air shaft for rewinding (frictional cam shaft available for option), Magnetic powder clutch for rewinding tension control
6. Equipped with air trim discharge conveying system.
7. Automatic meter counting device.
8. Pressure roller for rewinding to make rewinding roll more uniform.
9. Disk knife available for option.

Advantages

1.All photo was taken from actual products.

2. We can print client's logo on our machine if needed.

3. Our machine specification can be developed as requests,

4. All of our machine with assured quality and compretitive price.

5. Fast & Timely delivery is our merits.

6. After-sales was provided.

Main Technical Date

Model SLFQ-L-700 SLFQ-L-1100 SLFQ-L-1300
Max Unwind width 700mm 1100mm 1300mm
Max Unwind diameter φ600mm φ600mm φ600mm
Paper core 3inch or 6inch
Slitting width 30-600mm 30-1000mm 30-1300mm
Sitting Speed 5-200m/min
Slitting precision ±0.15mm
Automatic tension range 3-30kg
Total power 4.5kw 5kw 5.5kw
Weight 1200kg 1500kg 1800kg
Dimention 2000 x 1100 x 1400mm 2400 x 1100 x 1400mm 2600 x 1100 x 1400mm

SLFQ PLC Conrol Automatic Slitting Machine for Paper and Plastic Film
