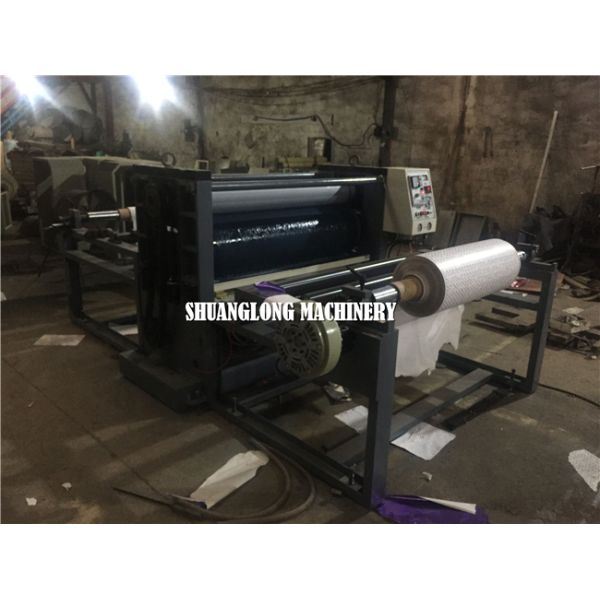

Economic Type Paper Embossing Machine For Wall Paper And Calender Paper
Economic Type Paper Embossing Machine For Wall Paper And Calender Paper
Specifications
Brand Name :
SL
Model Number :
SLYW-1350
Certification :
CE
Place of Origin :
Zhejiang, China
MOQ :
1 SET
Price :
Price negotiable
Payment Terms :
D/A, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10 SETS / MONTH
Delivery Time :
50 WORKING DAYS
Packaging Details :
EXPORT STANDARD PACKING
Base Material :
Different kind of paper
Material Size :
standard size 920mm 1150mm 1300mm
Speed :
40-150m/min (depends on material)
Embossing Type :
roll to roll type
Working Pressure :
2-10MPa
Embossing roller :
1 design come with machine
Description

Economic type paper embossing machine for wall paper and calender paper

Quick details:

1. Material diameter: 1000mm

2. Unwind tension: 10kg (depends on the material weight)

3. Main motor 4kw drive by inverter

4. Manual loading device

5. Manual tension control

6. Oil heating or chiller depends on different material embossing.

Advantage:

1.All photo was taken from actual products.

2. We can print client's logo on our machine if needed.

3. Our machine specification can be developed as requests,

4. All of our machine with assured quality and compretitive price.

5. Fast & Timely delivery is our merits.

6. After-sales was provided.

Main Specification:

Model SLYW-950 SLYW-1150 SLYW-1300
Embossing width 900mm 1100mm 1250mm
Embossing speed 50-100m/min 50-100m/min 50-100m/min
Material range 60-450gsm 60-450gsm 60-450gsm
Working pressure 2-10MPa 2-10MPa 2-10MPa
Main power 4kw 5.5kw 5.5kw
Heating power 3.6kw 3.6kw 3.6kw
Machine weight 3000kgs 3200kgs 3800kgs
Dimension (L x W x H) 3800 x 1950 x 1600mm 3700 x 2300 x 1900mm 3700 x 2400 x 1900mm

Economic Type Paper Embossing Machine For Wall Paper And Calender Paper
