Specifications
Brand Name :
HAUWEISHENDA
Model Number :
MB-2100
Certification :
ISO/CE
Place of Origin :
JIANGSU CHINA
MOQ :
1
Payment Terms :
L/C, T/T
Supply Ability :
15 sets per month
Delivery Time :
25 working days
Packaging Details :
Wooden case
Description

L type Automatic Film shrink packing sleeve shrink wrapping packaging machine with Shrink Tunnel

L type automatic industrial bottle shrink wrapping machine is designed to pack either as individual packs or as collations into their respective format of bottles, jars and canned and industrial products be wrapped unsupported, pad-supported or tray-supported. Each shrink wrapping machine consists of side feed driven conveyor, bundler, shrink tunnel and discharge conveyor and it can be incorporated into existing line.

After filling capping and labeling , Products are transported by side mounted slat conveyor to bundler. the individual items are collated into their respective formats (eg.either 4 x 6 bottles(500l) or in other packaging configurations such as the 3 x 4 bottles(750ml) or 2 x 3 bottles(1500ml). The collated product is then pushed to sealing and cutting station by air cylinder. Shrink wrapper machine commonly use two reels of film which are joined to form a web. The product to be wrapped passes through the web. The sealing bar descends to sealing and cut the film to form an envelope around the package.

The wrapped products will be pushed into shrink tunnel by the next products to be wrapped, In the shrink tunnel, recirculated hot air shrinks the film around the products tightly and neatly leaving two open ends at thesides. As the shrink wrapped product exits the shrink tunnel,forced air cooling is used to tighten the sleeve wrap to achieve a strong, secure pack ready for stacking on a pallet or placing in a shipping carton.

All processes on the Shrink Wrapping Equipment are controlled by a programmable logic controller.

Features of Wrapper

*Heavy duty frame construction made on painted steel tube
*Wheels and height adjustable legs for transport and positioning
*Machine orientation: from right to left or from left to right
*Flexibility to wrap trayed and trayless packs
*Side-mounted multi-lane Infeed conveyor with Lane Divider
*Heavy duty infeed belt able to cope with any pack weight
*Very easy access to collation area for rapid change overs with quick release parts
*Heavy duty Teflon coated sealing blade for strong, reliable seals and a long blade life
*Pneumatic presser over the exit table to hold the product during the cutting and sealing process
*Ergonomically positioned film reels allowing easy loading of film and simple film thread up
*Powered film drive to ensure lightweight products are easy to wrap

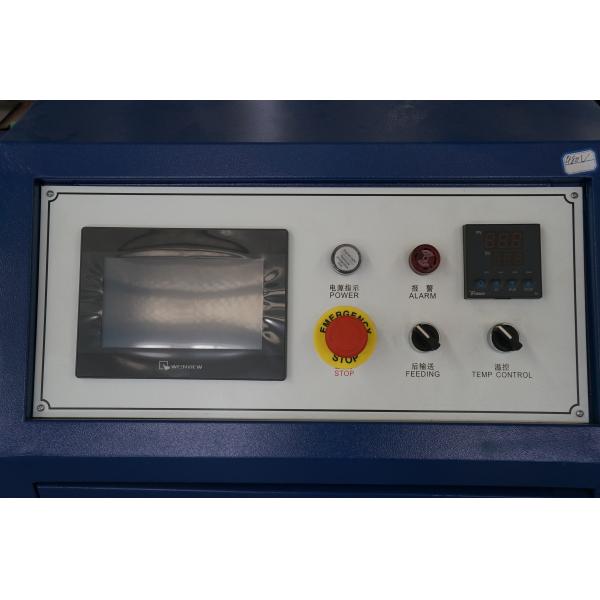

*PLC control and touch screen HMI interface
*Variable speed control by inverter
*Easy to corporate with existing production line or off line

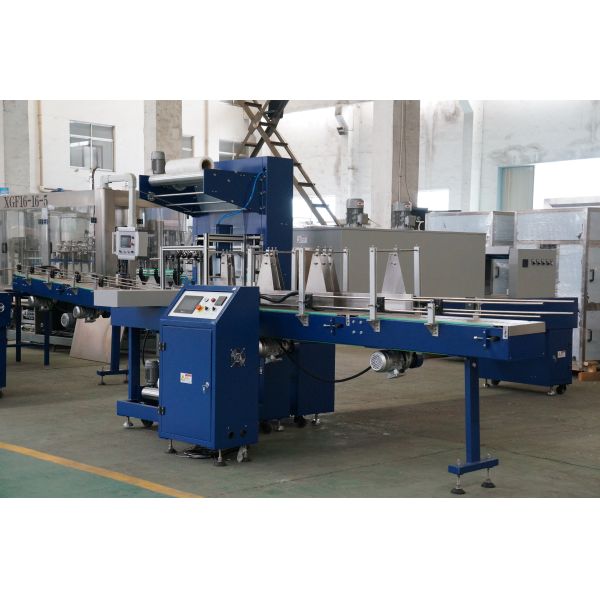

L Type Shrink Wrapping Machine Semi 100 Micro Automatic Shrink Wrapper

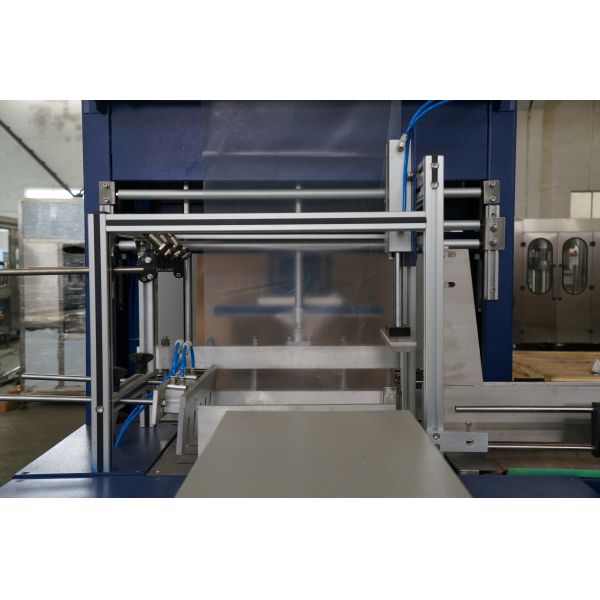

L Type Shrink Wrapping Machine Semi 100 Micro Automatic Shrink Wrapper

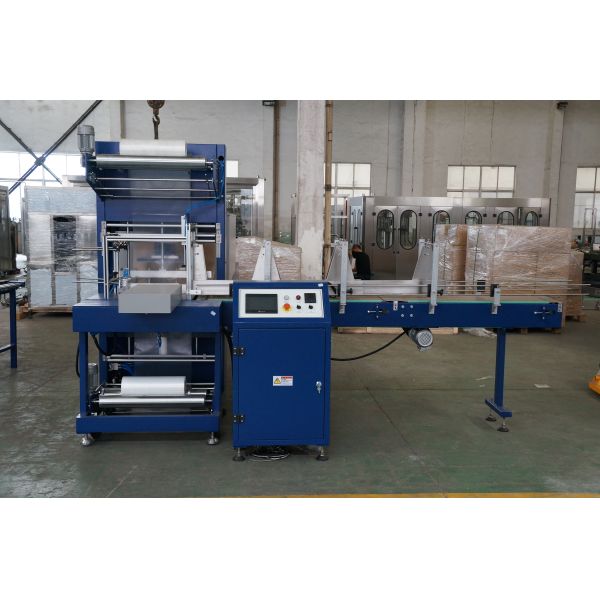

L Type Shrink Wrapping Machine Semi 100 Micro Automatic Shrink Wrapper

L Type Shrink Wrapping Machine Semi 100 Micro Automatic Shrink Wrapper

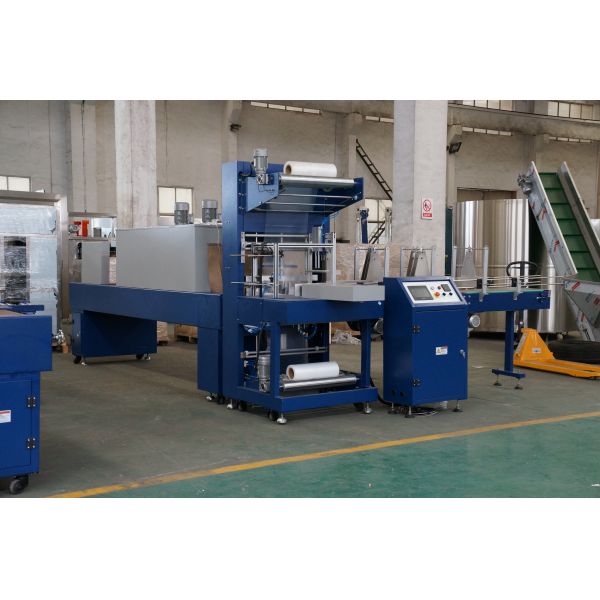

L Type Shrink Wrapping Machine Semi 100 Micro Automatic Shrink Wrapper

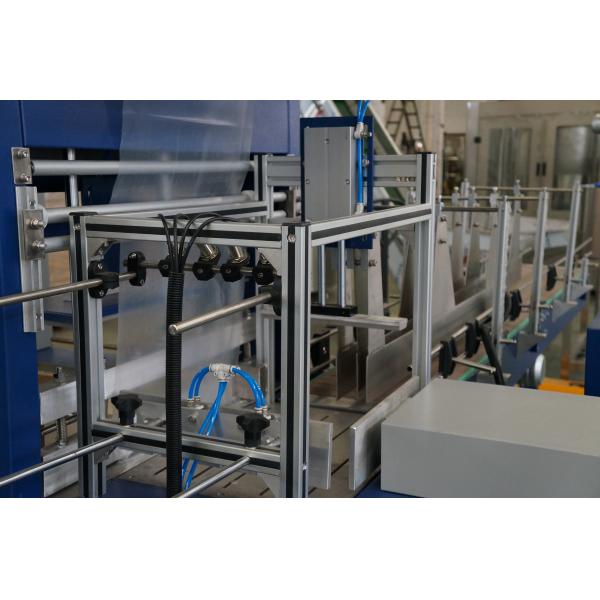

L Type Shrink Wrapping Machine Semi 100 Micro Automatic Shrink Wrapper

L type Automatic Shrink Wrap Machine

Features of Shrink Tunnel

*Heavy duty welded steel frame with adjustable height
*Wheels and height adjustable legs for transport and positioning
*Insulated shrink tunnel chamber
*Stainless steel heating elements for long life
*Shrink tunnel opening is 24″W X 16″H
*Adjustable conveyor speed
*Adjustable temperature control
*Dual blower design with adjustable air flow
*Durable and non-stick teflon mesh conveyor belt
*Discharging idle roller conveyor for accumulation and easy transportation

Main parameter:

Packing Speed 8-10Packs/Min
Max Pack Size 600(L)x400(W)x350(H)mm
Applicable Film Polyethylene(PE) Film
Max Film Width 600mm
Max Film Thickness 100Micro
Conveyor Electric Supply 220V 50/60HZ 1PH 0.75KW
Sleeve Wrapper Electric Supply 220V 50/60HZ 1PH 1.20KW
Shrink Tunnel Electric Supply 380V 50/60HZ 3PH 26.00KW
Shrink Tunnel Chamber 1800x600x400mm
Conveyor Dimension 2700x350x900mm
Sleeve Wrapper Dimension 1500x910x2000mm
Shrink Tunnel Dimension 3300x900x1850mm
Idle Roller Conveyor 1200x800x950mm
Conveyor Weight 180kgs
Sleeve Wrapper Weight 500kgs
Shrink Tunnel Weight 600kgs
Idle Roller Weight 60kgs
