Fire Alarm Water Jet Monitor 0.9MPa Automatic Targeting Firefighting Monitor
Fire Alarm Water Jet Monitor 0.9MPa Automatic Targeting Firefighting Monitor
Fire Alarm Water Jet Monitor 0.9MPa Automatic Targeting Firefighting Monitor
Fire Alarm Water Jet Monitor 0.9MPa Automatic Targeting Firefighting Monitor
Fire Alarm Water Jet Monitor 0.9MPa Automatic Targeting Firefighting Monitor
Fire Alarm Water Jet Monitor 0.9MPa Automatic Targeting Firefighting Monitor
Fire Alarm Water Jet Monitor 0.9MPa Automatic Targeting Firefighting Monitor
Fire Alarm Water Jet Monitor 0.9MPa Automatic Targeting Firefighting Monitor
Fire Alarm Water Jet Monitor 0.9MPa Automatic Targeting Firefighting Monitor
Fire Alarm Water Jet Monitor 0.9MPa Automatic Targeting Firefighting Monitor
Fire Alarm Water Jet Monitor 0.9MPa Automatic Targeting Firefighting Monitor
Fire Alarm Water Jet Monitor 0.9MPa Automatic Targeting Firefighting Monitor
Specifications
Place of Origin :
Henan, China
Brand Name :
LinkZone
Model Number :
ZDMS 0.9/30S-LZ II
Packaging Details :
International Standard Export Packing
Supply Ability :
200000 Set/Sets per Year
Price :
$2,300.00 - $2,500.00/sets
Rated working pressure (MPa) :
0.9
Rated flow (L / s) :
30
Maximum protection radius(m) :
55
Jet radius (m) :
60
Monitoring radius(m) :
60
Positioning time(s) :
≤60
Installation height (m) :
8~15
Horizontal swing angle(°) :
≥180
Vertical angle(°) :
-30~90
Port :
Shanghai,Shenzhen,Qingdao,Tianjin,Dalian
Description

fire alarm system automatic tracking and targeting fire water cannon for fire safety

Product Overview

INTELLIGENT Explosion proof FIRE MONITOR AUTOMATIC FIRE SPRINKLER SYSTEM
Our intelligent fire monitor adopts infrared thermal imaging principle and air-to-air missile tracking technology,It has the functions of real-time measurement and calculation of the real-time temperature of the fire, automatic tracking of the fire, automatic spraying to extinguish, and automatic water shutoff after the fire is extinguished.
FEATURES AT A GLANCE
ITEM#:ZDMS 0.9/30S-LZ II
DIMENSION:550×550mm
NET WEIGHT:22KG
SENSOR:IR SENSOR
VOLTAGE:220V
COMMUNICATION METHOD:CAN bus
Material:SS304
Fire Alarm Water Jet Monitor 0.9MPa Automatic Targeting Firefighting Monitor
Fire Alarm Water Jet Monitor 0.9MPa Automatic Targeting Firefighting Monitor
Front elevation
Fire Alarm Water Jet Monitor 0.9MPa Automatic Targeting Firefighting Monitor
system chart
Fire Alarm Water Jet Monitor 0.9MPa Automatic Targeting Firefighting Monitor
Front elevation
PRODUCT SPECIFICATIONS
No
Item
Standard &Requirements
Inspection results
1
Rated working pressure (MPa)
≤0.9
0.9
/
2
Rated flow (L / s)
30×(1±8%)
20.1
/
3
Maximum protection radius(m)
≥50
50
/
4
Jet radius (m)
≥60
55
/
5
Monitoring radius(m)
≥60
80
/
6
Positioning time(s)
≤60
59
60
7
Installation height (m)
8~15
8
15
8
Horizontal swing angle(°)
≥180
360
9
Vertical angle(°)
-90~+30
-90~+30
10
working temperature
4~55℃ ≤95%RH
4~55℃ ≤95%RH
PRODUCT CONFIGURATION
Fire Alarm Water Jet Monitor 0.9MPa Automatic Targeting Firefighting Monitor

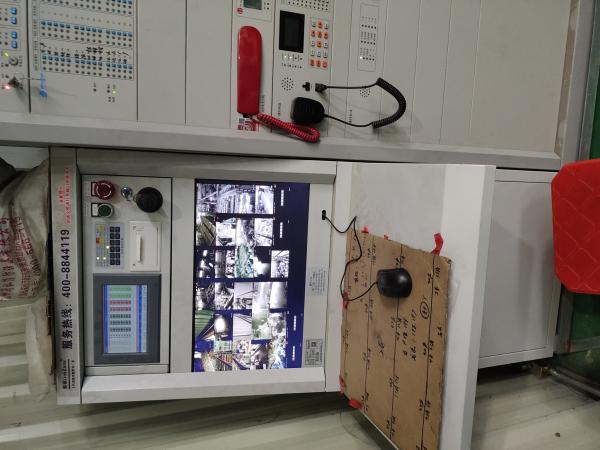

Control host
Fire Alarm Water Jet Monitor 0.9MPa Automatic Targeting Firefighting Monitor
Electric control box
Fire Alarm Water Jet Monitor 0.9MPa Automatic Targeting Firefighting Monitor
Field operation panel
Fire Alarm Water Jet Monitor 0.9MPa Automatic Targeting Firefighting Monitor
SALES AND SERVICE NETWORK
Fire Alarm Water Jet Monitor 0.9MPa Automatic Targeting Firefighting Monitor
Successful Project
Fire Alarm Water Jet Monitor 0.9MPa Automatic Targeting Firefighting Monitor
Project in Malaysia
Fire Alarm Water Jet Monitor 0.9MPa Automatic Targeting Firefighting Monitor
Project in Azerbaijan
Fire Alarm Water Jet Monitor 0.9MPa Automatic Targeting Firefighting Monitor
Project in Singapore
FAQ
Q1: Are you a manufacturer?
A1: Yes. We are a professional manufacture of intelligent fire-fighting equipment, like Full-auto Fire Monitor|Intelligent Fire Water Cannon.
Q2: What certificates do you have?
A2: We only have CCC and ISO at present. FM or UL will be got within next year.
Q3: What are the advantages of your Intelligent Fire Monitor|Fire Water Cannon?
A3: Our Intelligent Fire Monitor|Fire Water Cannon integrates the following functions: 1. Remote Video Surveillance. 2. Fire Alarm. 3. Intelligent Fire Extinguishing.
