Popular Auto Fire Fighting Monitor System IR Sensor Remote Fire Monitor 5L/S
Popular Auto Fire Fighting Monitor System IR Sensor Remote Fire Monitor 5L/S
Popular Auto Fire Fighting Monitor System IR Sensor Remote Fire Monitor 5L/S
Popular Auto Fire Fighting Monitor System IR Sensor Remote Fire Monitor 5L/S
Popular Auto Fire Fighting Monitor System IR Sensor Remote Fire Monitor 5L/S
Popular Auto Fire Fighting Monitor System IR Sensor Remote Fire Monitor 5L/S
Popular Auto Fire Fighting Monitor System IR Sensor Remote Fire Monitor 5L/S
Popular Auto Fire Fighting Monitor System IR Sensor Remote Fire Monitor 5L/S
Popular Auto Fire Fighting Monitor System IR Sensor Remote Fire Monitor 5L/S
Popular Auto Fire Fighting Monitor System IR Sensor Remote Fire Monitor 5L/S
Popular Auto Fire Fighting Monitor System IR Sensor Remote Fire Monitor 5L/S
Popular Auto Fire Fighting Monitor System IR Sensor Remote Fire Monitor 5L/S
Specifications
Place of Origin :
Henan, China
Brand Name :
LinkZone
Model Number :
ZDMS 0.6/5S-LZ II
Packaging Details :
International Standard Export Packing
Supply Ability :
200000 Set/Sets per Year
MOQ :
3 sets
Price :
$1,030.00 - $1,200.00/sets
Rated working pressure (MPa) :
0.6
Rated flow (L / s) :
5
Maximum protection radius(m) :
30
Jet radius (m) :
34
Monitoring radius(m) :
40
Positioning time(s) :
≤30
Installation height (m) :
6~15
Horizontal swing angle(°) :
360°
Minimum pitch profile(°) :
-90~+30
Overall Dimensions :
35*23*48CM,8KG
Port :
Shanghai,Shenzhen,Qingdao,Tianjin,Dalian
Description

Popular automatic fire suppression system automatic fire fighting equipment for large space fire safety

Product Overview

INTELLIGENT FIRE MONITOR AUTOMATIC FIRE SPRINKLER SYSTEM

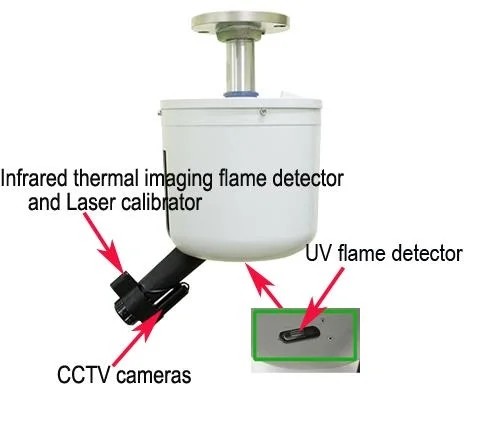

Our intelligent fire monitor adopts infrared thermal imaging principle and air-to-air missile tracking technology,It has the functions of real-time measurement and calculation of the real-time temperature of the fire, automatic tracking of the fire, automatic spraying to extinguish, and automatic water shutoff after the fire is extinguished.
FEATURES AT A GLANCE
DIMENSION:480×360mm
NET WEIGHT:8.1KG
MODEL: ZDMS0.6/5S-LZ II
SENSOR:IR SENSOR
VOLTAGE:220V
COMMUNICATION METHOD:CAN
KEYWORD:INTELLIGENT FIRE MONITOR
Popular Auto Fire Fighting Monitor System IR Sensor Remote Fire Monitor 5L/S
Popular Auto Fire Fighting Monitor System IR Sensor Remote Fire Monitor 5L/S
Right elevation
Popular Auto Fire Fighting Monitor System IR Sensor Remote Fire Monitor 5L/S
Left elevation
Popular Auto Fire Fighting Monitor System IR Sensor Remote Fire Monitor 5L/S
Front elevation
PRODUCT SPECIFICATIONS
No
Item
Standard &Requirements
Inspection results
1
Rated working pressure (MPa)
≤0.8
0.6
/
2
Rated flow (L / s)
5×(1±8%)
5.05
/
3
Maximum protection radius(m)
≥30
30
/
4
Jet radius (m)
≥34
34
/
5
Monitoring radius(m)
≥40
40
/
6
Positioning time(s)
≤30
29.5
29.9
7
Installation height (m)
6~15
6
15
8
Horizontal swing angle(°)
≥180
360
9
Minimum pitch profile(°)
-90~+30
-90~+30
10
Diameter of water-inlet(mm)
Φ 34.5 ± 0.5
Φ 34.5 ± 0.5
11
Diameter of water-outlet(mm)
Φ 15.5 ± 0.5
Φ 15.5 ± 0.5

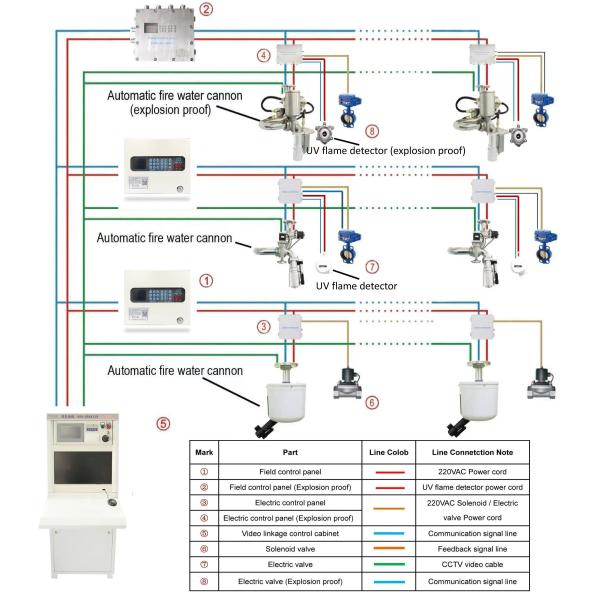

PRODUCT CONFIGURATION
Popular Auto Fire Fighting Monitor System IR Sensor Remote Fire Monitor 5L/S
Control host
Popular Auto Fire Fighting Monitor System IR Sensor Remote Fire Monitor 5L/S
Electric control box
Popular Auto Fire Fighting Monitor System IR Sensor Remote Fire Monitor 5L/S
Field operation panel
SALES AND SERVICE NETWORK
Popular Auto Fire Fighting Monitor System IR Sensor Remote Fire Monitor 5L/S
Successful Project
Popular Auto Fire Fighting Monitor System IR Sensor Remote Fire Monitor 5L/S
Project in Malaysia
Popular Auto Fire Fighting Monitor System IR Sensor Remote Fire Monitor 5L/S
Project in Azerbaijan
Popular Auto Fire Fighting Monitor System IR Sensor Remote Fire Monitor 5L/S
Project in Singapore
