35m Fire Protection Remote Fire Monitor UV Detector And IR Sensor Built In
35m Fire Protection Remote Fire Monitor UV Detector And IR Sensor Built In
35m Fire Protection Remote Fire Monitor UV Detector And IR Sensor Built In
35m Fire Protection Remote Fire Monitor UV Detector And IR Sensor Built In
35m Fire Protection Remote Fire Monitor UV Detector And IR Sensor Built In
35m Fire Protection Remote Fire Monitor UV Detector And IR Sensor Built In
Specifications
Brand Name :
LinkZone
Model Number :
ZDMS0.6/10S-LZ II
Certification :
CCCF
Place of Origin :
Henan, China
MOQ :
1sets
Price :
Negotiable
Supply Ability :
200000 Set/Sets per Year
Packaging Details :
International Standard Export Packing
Product Name :
Fire Fighting Monitor
Rated working pressure :
0.6MPa
Rated flow :
10L/s
Maximum protection radius(m) :
35m
Jet radius (m) :
39m
Monitoring radius(m) :
40m
Positioning time(s) :
≤30s
Installation height (m) :
6~25m
Description

UV Detector And IR Sensor Built In Fire Fighting Monitor For Fire Protection

Product Description
The automatic fire fighting monitor is widely used in large-space places whose heights are between 6-25m. It applies the micro processor to control the fire monitor.It can probe fire the first time with detection technology of infrared sensing, ultraviolet
sensing and plasma sensing and put out fire in the bud. This product has high efficient
that it can start and stop automatically and repeatedly with quick response.
The homing fire extinguishing device has main units of fire extinguishing unit, solenoid
valve, service valve, manual alarm button, aud ibleand visual alarm, manual
controller, zone control box, end water-test-equipment and pipeline. The installing
contains pipeline installing and electrical installing.
The autoamtic fire fighting monitor is a new auto-scan and positioning fire extinguishing device, which combines
function of fire probing and extinguishing. It can probe fire, send alarm signals and adjust
direction to aim at fire to put out it automatically. When a fire happens, it adjusts its nozzle
direction and aim at fire after logic analysis of microprocessor. It is of features of timely
probing, accurate positioning, concentrate flow jet, auto starting and stopping and big
working range.

35m Fire Protection Remote Fire Monitor UV Detector And IR Sensor Built In
PRODUCT SPECIFICATIONS
No
Item
Standard &Requirements
Inspection results
1
Rated working pressure (MPa)
≤0.8
0.6
/
2
Rated flow (L / s)
5×(1±8%)
5.05
/
3
Maximum protection radius(m)
≥30
30
/
4
Jet radius (m)
≥34
34
/
5
Monitoring radius(m)
≥40
40
/
6
Positioning time(s)
≤30
29.5
29.9
7
Installation height (m)
6~15
6
15
8
Horizontal swing angle(°)
≥180
360
9
Minimum pitch profile(°)
-90~+30
-90~+30
10
Diameter of water-inlet(mm)
Φ 34.5 ± 0.5
Φ 34.5 ± 0.5
11
Diameter of water-outlet(mm)
Φ 15.5 ± 0.5
Φ 15.5 ± 0.5

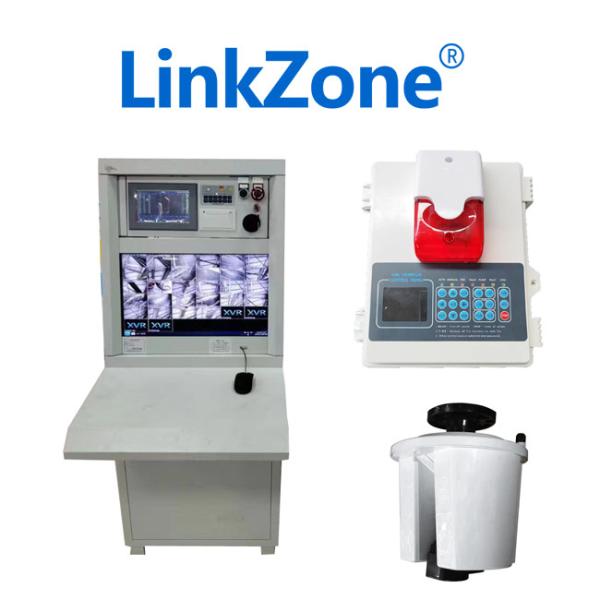

PRODUCT CONFIGURATION
35m Fire Protection Remote Fire Monitor UV Detector And IR Sensor Built In
35m Fire Protection Remote Fire Monitor UV Detector And IR Sensor Built In
SALES AND SERVICE NETWORK
35m Fire Protection Remote Fire Monitor UV Detector And IR Sensor Built In
Successful Project
35m Fire Protection Remote Fire Monitor UV Detector And IR Sensor Built In

FAQ
Q1: Are you a manufacturer?
A1: Yes. We are a professional manufacture of automatic fire fighting monitor, like Full-auto Fire Monitor|Fire Water Cannon.
Q2: What certificates do you have?
A2: We only have CCC and ISO at present. We will do FM later.
Q3: What are the advantages of your automatic fire fighting monitor?
A3: Our automatic fire fighting monitor integrates the following functions: 1. Remote Video Surveillance. 2. Fire Alarm. 3. Automatic Fire Extinguishing.
