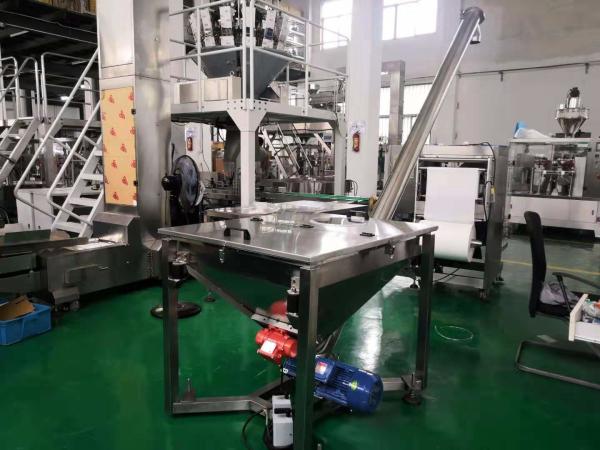

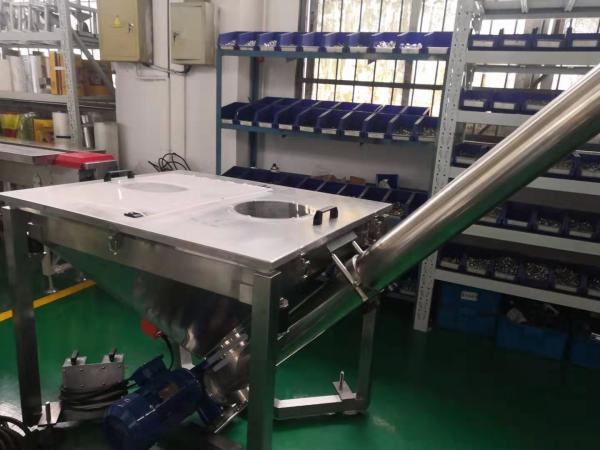

Powder 2m3/h Inclined Screw Food Grade Conveyor With Hopper
Powder 2m3/h Inclined Screw Food Grade Conveyor With Hopper
Powder 2m3/h Inclined Screw Food Grade Conveyor With Hopper
Powder 2m3/h Inclined Screw Food Grade Conveyor With Hopper
Powder 2m3/h Inclined Screw Food Grade Conveyor With Hopper
Powder 2m3/h Inclined Screw Food Grade Conveyor With Hopper
Powder 2m3/h Inclined Screw Food Grade Conveyor With Hopper
Powder 2m3/h Inclined Screw Food Grade Conveyor With Hopper
Powder 2m3/h Inclined Screw Food Grade Conveyor With Hopper
Powder 2m3/h Inclined Screw Food Grade Conveyor With Hopper
Powder 2m3/h Inclined Screw Food Grade Conveyor With Hopper
Powder 2m3/h Inclined Screw Food Grade Conveyor With Hopper
Specifications
Brand Name :
ZON PACK
Model Number :
ZH-CS2
Certification :
CE Certification
Place of Origin :
China
MOQ :
1 Set
Price :
2500-3000USD per set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
299 Sets per month
Delivery Time :
20-25 Working days
Packaging Details :
Wooden case
Name :
screw conveyor
Charging Capacity :
2-12m3/h
Diameter of pipe :
Ø102-Ø219
Hopper Volume :
100L/200L
Charging Height :
Standard 1.85M, 1-5M could be designed and manufactured.
Charging angle :
Standard 45degree,30-60 degree are also available.
Power Supply :
3P AC208-415V 50/60Hz
Frame Material :
SUS304
Description

high speed 304SS inclined screw conveyor with hopper for powder conveying


Technical Feature

1. Vibrating screw feeding conveyor is composed of double motor, feeding motor, vibrating motor

and with respective control.

2. Hopper with vibrator makes material to flow easily, and the size of hopper can be customized.

3. Hopper is separated from twisting shaft and with reasonable structure and easily loading and unloading.

4. Hopper with dustproof structure and all the material is made of SS304 except for motor, which won't be polluted

by the dust and powder.

5. Product releasing with reasonable structure that is easy for scrapped materials and tailing removing.

Machine Specificatin

Model
ZH-CS2
Charging Capacity
2m3/h
3m3/h
5m3/h
7m3/h
8m3/h
12m3/h
Diameter of pipe
Ø102
Ø114
Ø141
Ø159
Ø168
Ø219
Hopper Volume
100L
200L
200L
200L
200L
200L
Total Power
0.78KW
1.53KW
2.23KW
3.03KW
4.03KW
2.23KW
Total Weight
100kg
130kg
170kg
200kg
220kg
270kg
Hopper Dimensions
720x620x800mm
1023 ×820×900mm
Charging Height
Standard 1.85M, 1-5M could be designed and manufactured.
Charging angle
Standard 45degree,30-60 degree are also available.
Power Supply
3P AC208-415V 50/60Hz


Machine Application:

ZH-CS2 screw conveyor is developed for conveying powder product, such as milk powder, rice powder,

sugar, gourmet powder, amylaceum powder, washing powder, spices, etc.

Powder 2m3/h Inclined Screw Food Grade Conveyor With Hopper

Machine Details:


Powder 2m3/h Inclined Screw Food Grade Conveyor With Hopper

Powder 2m3/h Inclined Screw Food Grade Conveyor With Hopper






Case Shows

Powder 2m3/h Inclined Screw Food Grade Conveyor With Hopper

Our Service

Powder 2m3/h Inclined Screw Food Grade Conveyor With Hopper Powder 2m3/h Inclined Screw Food Grade Conveyor With Hopper

Pre-Sales Service After-Sales Service
* Inquiry and consulting support. * Training how to install the machine, training how to use the machine.
* Sample testing support. * Engineers available to service machinery overseas.

* View our factory.


Service Terms:

Our mission is provide high quality products and comprehensive service to our customers.We are dedicated to

providing customers with perfect and efficient service.

1. Training service:

We will train your engineer to install our machines and how to fix some small problems.You can send your

engineer to our factory or we can dispatch our engineer to your company.

2. Trouble shooting service:

Sometimes if you can not fix the problem by yourselves,we will send our engineer to help you if you need.By the

way,you need to afford the round trip and accommodation fee.

3.Spare part replacement:

Our warranty time is 18 months.In this period,if your spare part is broken,we will send you the part for free.

4.The documents that will be supplied:

1) Invoice

2) Packing List

3) Bill of Lading

4) Other files that buyer wanted.
