Specifications
Brand Name :
ZON PACK
Model Number :
ZH-DW400
Certification :
CE Certification
Place of Origin :
China
MOQ :
1 Set
Price :
5000-6000USD per set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
300 Sets per month
Delivery Time :
20-25 Working days
Packaging Details :
Wooden case
Name :
high speed check weigher
Model :
ZH-DW400
Weighing range :
0.2-10kg
Frame Material :
SUS304
Display Type :
Touch Screen
Zero calibration :
Auto Zero Tracking
Scale Interval :
1g
Belt Speed :
70m/min
Rejector :
air blow, Pusher, shifter
Protection level :
IP30/IP54/IP66
Description

Fast speed and factory price HBM sensor food pouch check weigher

Technical Feature

1. High speed ,high accuracy online weight checking

2. Advanced and proper rejection system

3. Human-main friendly 7'' HMI panel operation

4. Strong anti-vibration and interference design

5. Special tailor made design and high integrated programme with scanning and printing system

6. Top-level craft, professional mechanical design.

7. Strong stainless steel structure; water-proof design.

8.Touch screen, friendly operation interface.

Technical Specification

Model ZH-DW160 ZH-DW230S ZH-DW230L ZH-DW300

ZH-DW400

 ZH-DW500 ZH-DW600
Weighing Range 10-600g 20-2000g 20-2000g 50-5000g 0.2-10kg 0.5-20kg 10-50kg
Scale Interval 0.05g 0.1g 0.1g 0.2g 1g 1g 5g
Best Accuracy ±0.1g ±0.2g ±0.2g ±0.5g ±1g ±2g ±5g
Max Speed 250 pcs/min 200 pcs/min 155pcs/min 140pcs/min 105pcs/min 75pcs/min 75pcs/min
Belt Speed 70m/min 70m/min 70m/min 70m/min 70m/min 60m/min 60m/min
Product Size 200mm (L)
150mm (W)		 250mm (L)
220mm (W		 350mm (L)
220mm (W)		 400mm (L)
290mm (W)		 550mm (L)
390mm (W)		 700mm (L)
490mm (W)		 1000mm (L)
590mm (W)
Weighing
Platform
Size		 280mm (L)
160mm (W)		 350mm (L)
230mm (W)		 450mm (L)
230mm (W)		 500mm (L)
300mm (W)		 650mm (L)
400mm (W)		 800mm (L)
500mm (W)

1200mm (L)
600mm (W)
No. of Sorting Segment 2 Segments or 3 Segments
Rejector air blow, Pusher, shifter
Power Parameter 220V/110V 50/60Hz
Protection Level IP30/IP54/IP66
Frame Material SUS304

Application

It is suitable to check weight of various products, over or less weight will

be rejected out, qualify bags will be passed to next equipment.

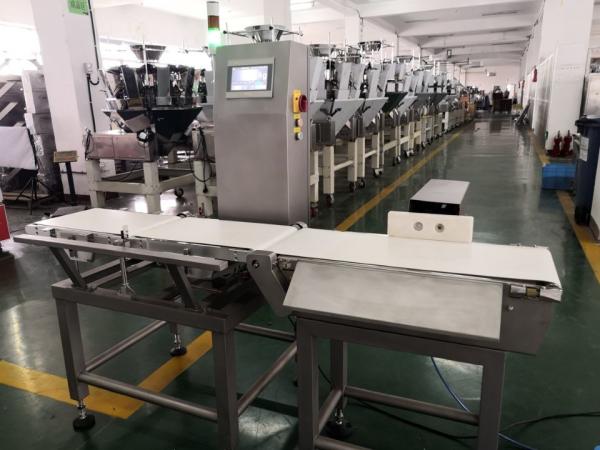

Machine Details

HBM Sensor Food Pouch High Speed Checkweigher Metal Detector

Our Cases

HBM Sensor Food Pouch High Speed Checkweigher Metal Detector

Our Service

HBM Sensor Food Pouch High Speed Checkweigher Metal Detector HBM Sensor Food Pouch High Speed Checkweigher Metal Detector

Pre-Sales Service After-Sales Service
* Inquiry and consulting support. * Training how to install the machine, training how to use the machine.
* Sample testing support. * Engineers available to service machinery overseas.

* View our factory.


Service Terms:

Our mission is provide high quality products and comprehensive service to our customers.We are dedicated to

providing customers with perfect and efficient service.

1. Training service:

We will train your engineer to install our machines and how to fix some small problems.You can send your

engineer to our factory or we can dispatch our engineer to your company.

2. Trouble shooting service:

Sometimes if you can not fix the problem by yourselves,we will send our engineer to help you if you need.By the

way,you need to afford the round trip and accommodation fee.

3.Spare part replacement:

Our warranty time is 18 months.In this period,if your spare part is broken,we will send you the part for free.

4.The documents that will be supplied:

1) Invoice

2) Packing List

3) Bill of Lading

4) Other files that buyer wanted.
