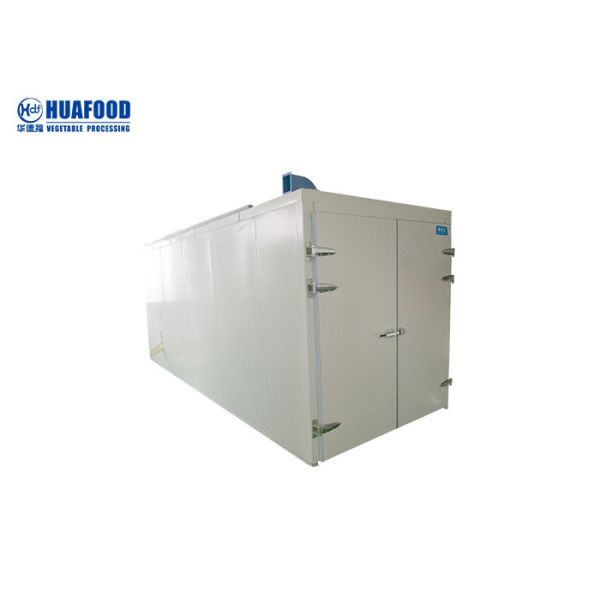

Professional Food Drying Machine Electric Heating Hot Air Circulation Oven 380v
Professional Food Drying Machine Electric Heating Hot Air Circulation Oven 380v
Professional Food Drying Machine Electric Heating Hot Air Circulation Oven 380v
Professional Food Drying Machine Electric Heating Hot Air Circulation Oven 380v
Professional Food Drying Machine Electric Heating Hot Air Circulation Oven 380v
Professional Food Drying Machine Electric Heating Hot Air Circulation Oven 380v
Specifications
Brand Name :
HDF
Model Number :
ZL-KNC-14p-8A
Certification :
CE
Place of Origin :
Henan Zhengzhou China
MOQ :
1 set
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50 sets per month
Delivery Time :
5-8days
Packaging Details :
standard wooden packing
Product name :
Intelligent heat pump drying equipment
Function :
drying foods
Compressor brand: :
Copeland
machine size :
4.46×2.2×2.29（m）
Weight :
450kg
power :
380V,50HZ
Warranty :
2 year
temperature range :
50-250（℃）
Description

Professional supply of hot air circulation oven,power 380v industrial oven, electric heating oven

Product Description:
Drying room, also known as drying and curing room [1] For large electrical, motor, paint, chemical products, appearance curing, food and various products of moisture drying advanced hot air circulation system to make the studio temperature distribution even. The low noise fan system creates a quiet working environment. Sealed electric heating tube, stable performance and long life. The bottom is equipped with a track and equipped with a trolley for loading workpieces or test pieces, which is highly efficient. The intake and exhaust devices can adjust the amount of ventilation in the working chamber. A separate console can be used for close control or centralized control in the control room. It can choose high-precision intelligent program temperature control instrument temperature control, P.I.D parameter self-adjustment, solid state relay power adjustment, preset multi-stage program temperature control curve. The intelligent temperature control instrument controls the temperature and the control is sensitive and reliable. The recorder records the entire process temperature profile. The over-temperature protection device can emit an audible and visual alarm signal and cut off the heating power to protect the safety of equipment and workpieces.
Professional Food Drying Machine Electric Heating Hot Air Circulation Oven 380v

Features:
● The industry's first patented technology, intelligent drying equipment integrating dehumidification, drying, dehumidification and fresh air ventilation;
● Applicable to belt continuous drying system, combined with closed dehumidification and heat pump drying, energy saving and emission reduction, more than 40-60% energy saving than traditional belt dryer;
● Applicable to various drying and dehumidifying modes below 65 degrees of air outlet, especially suitable for drying in high humidity environment;
● Innovative exhaust heat energy recovery, fresh air zero-power pre-heating technology, energy efficiency of the unit increased by 30%-50%;
● The unit automatically controls the temperature range according to the demand, and meets the requirements of large temperature difference and gradient constant temperature mutual operation process;
● One-piece design, flexible according to the site conditions.

Parameter:

Door position Open the door at one end, open
Number of cars 8 pieces, each 12 layers × 4 disks
Number of trays 384pieces
Plate size (L × W) (mm) 750×450
Console PLC control, color touch screen, intelligent operation mode, automatic temperature control and humidity control, reserved electric auxiliary heat, power can be set, operation status display, fault display, etc.
Circulation fan Axial fan, power 2.2kW, 4 sets, two-way circulation, uniform drying
Centrifugal fan Centrifugal fan, class F, power 0.75kW
Box material Stainless steel polyurethane insulation board, thickness 75mm
Environmental requirements Seasonal temperature; cement floor, smooth and smooth

FAQ:

Q: Are you a direct manufacturer or a trading company ?

A: We are a factory. We specialize in the production of food machinery since 2001 and support customization according to your needs. Welcome to visit the factory anytime.

Q: What products can you offer?

A: Our company mainly produces fruit and vegetable cleaning equipment, vegetable cutting machine, frying machine, seasoning machine, packaging machine, French fries production line, chicken claw production line, and other food processing machinery. In addition to supporting customization, we can also provide turnkey projects.

Q: What's the payment term?

A:We support L/C, D/A, T/T, Western Union, Paypal,etc. 2 years'guarantee period,whole life's free guidance.
