3 Ton Per Day 50L Full Garri Processing Plant Double Layer Structure
3 Ton Per Day 50L Full Garri Processing Plant Double Layer Structure
3 Ton Per Day 50L Full Garri Processing Plant Double Layer Structure
3 Ton Per Day 50L Full Garri Processing Plant Double Layer Structure
3 Ton Per Day 50L Full Garri Processing Plant Double Layer Structure
3 Ton Per Day 50L Full Garri Processing Plant Double Layer Structure
Specifications
Brand Name :
Huafood
Model Number :
Customized
Certification :
CE,ISO
Place of Origin :
CHINA
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
100Set per months
Delivery Time :
10-20 working days
Packaging Details :
International Standard Wooden Case Packaging
Electric heating and motor power :
10KW 0.75KW
Diameter depth :
600*420mm
Heat transfer oil quantity :
25kg
weight :
110kg
Material :
Stainless Steel 304
Capacity :
Customers' Request
Control :
Button
Volume :
50L
Description

3 Ton Per Day Full Garri Processing Plants To Nigeria

▶Product description:

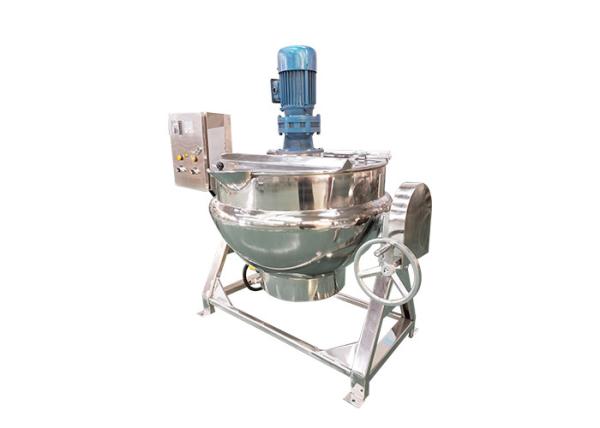

1. The pot body is a double-layer structure consisting of inner and outer spherical pots, and the overall material is 304 stainless steel.
2. Structure form: it can be divided into tilting type and vertical structure. It should be mixed with or without mixing according to the technological requirements.
3. The pot body with stirring device: the top center is stirred, the reducer output shaft and the propeller shaft are connected by looper.
4. The tilting sandwich pot can be tilted to 90 degrees, and the tilting mode is manual turnover and automatic turnover.
5. Large area of heating, uniform heating, uniform bottom scraping and no cooking.
Our company produces the tilting jacketed kettle, vertical jacketed kettle, stirring and scraping bottom stirring mixing jacketed kettle.

3 Ton Per Day 50L Full Garri Processing Plant Double Layer Structure

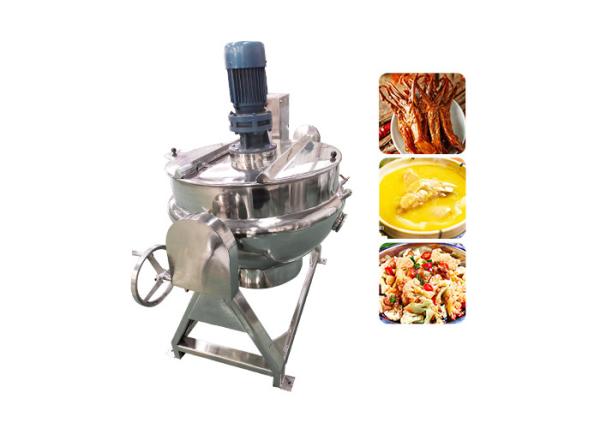

The jacketed kettle processing is widely used in various types of food, can also be used for large-scale restaurant or Cafeteria cook, stew, soup, porridge, is a good equipment in food processing to improve quality, shorten the time, improve working conditions.

3 Ton Per Day 50L Full Garri Processing Plant Double Layer Structure

3 Ton Per Day 50L Full Garri Processing Plant Double Layer Structure

▶Parameter:

Volume(L) Electric heating
and motor power
(KW)		 Diameter depth
(MM)		 Heat transfer oil
quantity(KG)		 weight(kg) voltage(V)
50 10KW 0.75KW 600*420 25 110 380V
100 12KW 0.75KW 700*470 32.5 125 380V
200 16KW 1.5KW 800*550 42.5 150 380V
300 18KW 1.5KW 900*600 60 200 380V
400 24KW 1.5KW 1000*680 75 250 380V
500 27KW 2.2KW 1100*720 100 300 380V
600 30KW 2.2KW 1200*780 125 350 380V

▶Main features:

The electric heating jacketed pot uses 380V power as the heat source. The jacketed pot is equipped with electric heating rods, electric heating tubes and heat transfer oil (customer self-prepared), and the maximum temperature can reach 320 degrees. It is controlled by an electric control box and equipped with a temperature control system. The electric heating jacketed pot has a large heating area, uniform heating, high thermal efficiency, short liquid boiling time, and easy heating temperature control.

3 Ton Per Day 50L Full Garri Processing Plant Double Layer Structure

3 Ton Per Day 50L Full Garri Processing Plant Double Layer Structure
