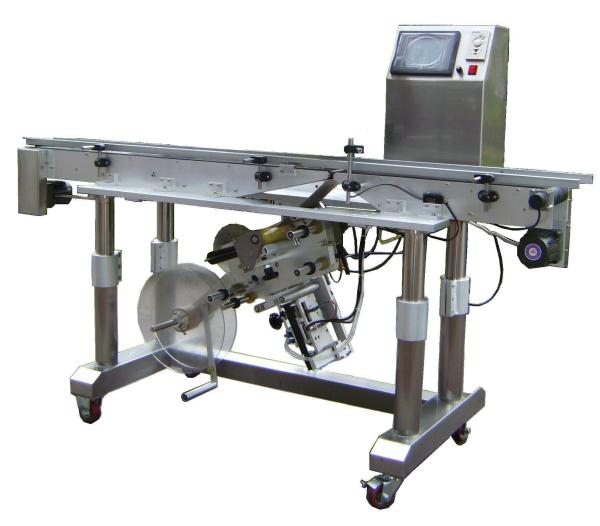

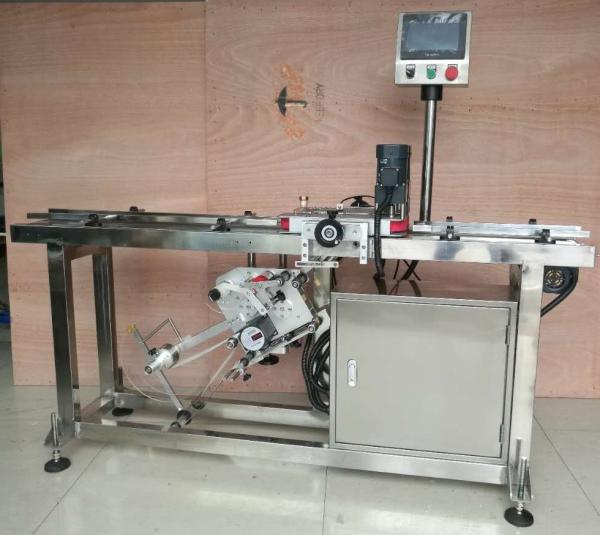

10mm-147mm 800W Flat Fully Automatic Box Labeling Machine Applicator Machine YM210X
10mm-147mm 800W Flat Fully Automatic Box Labeling Machine Applicator Machine YM210X
10mm-147mm 800W Flat Fully Automatic Box Labeling Machine Applicator Machine YM210X
10mm-147mm 800W Flat Fully Automatic Box Labeling Machine Applicator Machine YM210X
10mm-147mm 800W Flat Fully Automatic Box Labeling Machine Applicator Machine YM210X
10mm-147mm 800W Flat Fully Automatic Box Labeling Machine Applicator Machine YM210X
10mm-147mm 800W Flat Fully Automatic Box Labeling Machine Applicator Machine YM210X
10mm-147mm 800W Flat Fully Automatic Box Labeling Machine Applicator Machine YM210X
Specifications
Brand Name :
YIMU
Model Number :
YM210X
Certification :
CE
Place of Origin :
Shanghai
MOQ :
1set
Price :
Negotiate
Payment Terms :
T/T, L/C, D/P, Western Union, MoneyGram
Supply Ability :
28 sets per month
Delivery Time :
13-16days
Packaging Details :
wooden case, L215*W72*H152CM, 320KG
Name :
Automatic Jar Bottom Labeling Machine
Warranty :
4 years
Labeling accuracy :
＜ +/- 1mm
Voltage :
220V/50Hz,1phase, customized
Dimension(l*w*h) :
L2100 xW960 x H1540mm
Labeling speed :
30-80 pcs/min
Description

YM210X Fully Automatic Flat Box Bottom Sticker Label Applicator Machine Essential Oil Labeling

Application:

Bottom labeling machine is designed for labeling stickers on all kinds of objects with flat surface, side surface, regular rectangles, square shape such as bags, paper, pouch, card,books, boxes, jar, cans, tray etc,It can improve working efficiency greatly and reduce production error.It is widely used in daily chemical,cosmetics,food and beverage industries.


Device Advantages:
1. Easy adjustment, setting up front and back, left and right, up and down flat surface and slip surface, vertical and angle slip adjustable seat. Different bottle label no dead corner, adjust easily and fast
2. Automatic sub bottle, adopt star type sub bottle's mechanism, have efficiency to avoid mistake when sub bottles. Improve stability.
3. Touch screen control , HMI easy to operate with function of education, parameter changing clearly and easy to shift.
4. Intelligent control,Automatic photoelectric tracing, no label for when product didn't come, automatic correct, automatic testing, can avoid leaking and wasting.
5. Body material use stainless steel and alloy aluminum,more strong and health, conformable with GMP requirement 6. Have functions of automatic stop , counting, power saving(will automatic into waiting model for power saving when no products coming in the right time)

Equipment parameter

Moder YM210X
Labeling speed 30-100 PCS/min
Labeling accuracy 0.6mm
Machine size 2000*750*1550mm
Label size Width:10-147mm,Length:10-300mm
Power 220V/380V 50Hz,800W
Label roll

Inner core :76mm

Outside roll Max.: 360mm

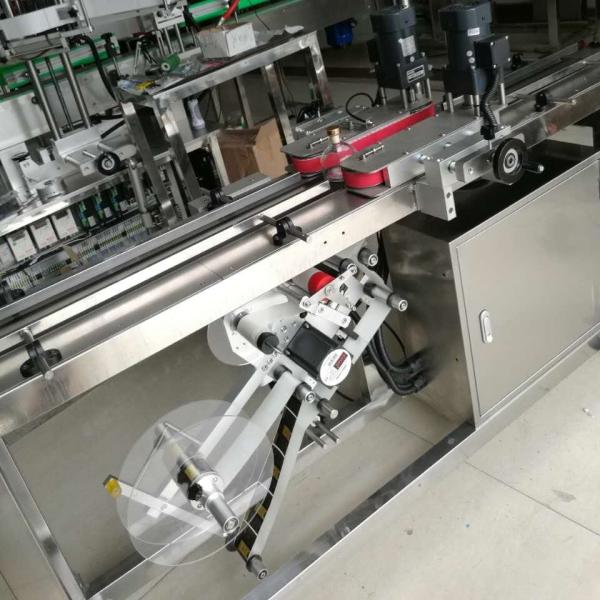

Sample:

10mm-147mm 800W Flat Fully Automatic Box Labeling Machine Applicator Machine YM210X10mm-147mm 800W Flat Fully Automatic Box Labeling Machine Applicator Machine YM210X

Main configuration

No Name Brand
1 PLC control system Siemens (Germany) /Mitsubishi (Japan)
2 HMI Siemens (Germany) /WEINVIEW (Taiwan)
3 stepper motor RAYNEN(SHANGHAI)/ KINCO (Germany)
4 stepper motor driver RAYNEN(SHANGHAI)/ KINCO (Germany)
5 Frequency changers Siemens (Germany)/ DELTA (Taiwan)
6 Photoelectricity KEYENCE (Japan)
7 labels photoelectric sensor FOTEK(Taiwan)
8 Bearings Japan
9 Stainless steel material 304SS


10mm-147mm 800W Flat Fully Automatic Box Labeling Machine Applicator Machine YM210X

10mm-147mm 800W Flat Fully Automatic Box Labeling Machine Applicator Machine YM210X
