Specifications
Brand Name :
YIMU
Model Number :
CM400
Certification :
CE, SGS
Place of Origin :
Shanghai
MOQ :
1set
Price :
Negotiable
Payment Terms :
T/T, L/C, D/P, Western Union
Supply Ability :
25set/month
Delivery Time :
20-25 working days
Packaging Details :
wooden case, L2600*W1100*H1800mm, 800KG
Product name :
Automatic Straight Linear Four Heads Capping Machine Lubricating Engine Oil Bottle Capper
Material :
SUS304+316L
Function :
capping machine
Application :
Chemical, Medical, Cosmetics, Food
Bottle height :
70-350mm
Bottle diameter :
30-120mm
Power :
1.5 KW
Warranty :
3 years
Packaging type :
Wooden box
Weight :
600kg
Description

Automatic Straight Linear Four Heads Capping Machine Lubricating Engine Oil Bottle Capper

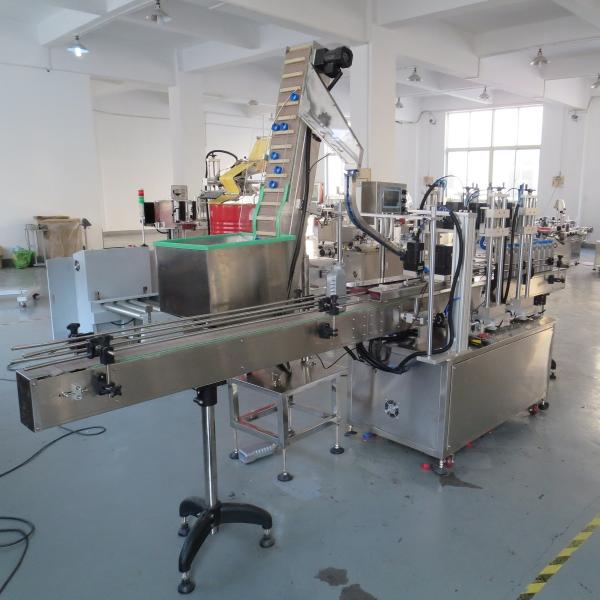

Machine include cap automatic feeding elevator or vibrating disk, 2-3m conveyor, 1-4 capping heads, control system.

Pesticide bucket capping machine, Liquid chemical fertilizer bucket capping filling machine, Automobile urea bucket capping machine, Antifreeze bucket capping machine, Motor oil bucket capping machine, Lubricant barrel capping machine, medical alcohol barrel capping machine, etc

Suitable for any kinds bottle automatic arrange cap, feeding cap, screw cap. such as metal cap, plastic cap, glass bottle, plastic bottle and so on

1, Through the PLC control panel, you can set parameters like capping speed and capping torque. Easy to operate.The language of panel can be customized as needed. Please contact us if you need.

2, The capping torque and lifting height of the capping head are controlled by servo motors, with fast changeover and high capping accuracy.

3, After the cap slides down to the bottle mouth, it will be corrected by the cylinder pre-pressure device to further confirm the accuracy and precision of the capping.

TECHNICAL PARAMETER:
Model CM400
Capacity(bottles/min) 50-70
Conveyor running side from left to right / from right to left
Conveyor speed(m/min) ≤20
Capping yield ≥99%
Suitable for cap size φ15-80mm
Suitable for bottle size any kinds and size bottle
Feeding cap system by elevator or vibrating feeding cap
Capping head 4 heads
Power supply(In China) AC220V 50/60HZ single phase(customized)
Power 1500W
Machine weight 800KG
Machine size L2500 W1000 H1700mm(can be customized)

Linear Ropp Cap Sealing Machine Bottle Filling Capping And Labeling Machine

Linear Ropp Cap Sealing Machine Bottle Filling Capping And Labeling Machine
