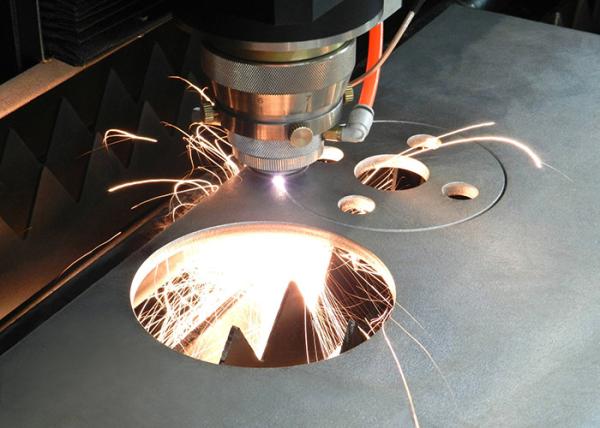

Fiber Metal Laser Cutting Machine / 3d Laser Metal Cutting Machine With Water Cooling System
Fiber Metal Laser Cutting Machine / 3d Laser Metal Cutting Machine With Water Cooling System
Fiber Metal Laser Cutting Machine / 3d Laser Metal Cutting Machine With Water Cooling System
Fiber Metal Laser Cutting Machine / 3d Laser Metal Cutting Machine With Water Cooling System
Specifications
Brand Name :
DXH Laser
Model Number :
DXH-FC3015
Certification :
CE,FDA,ISO9001
Place of Origin :
Kunshan,China.
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50 sets per day
Delivery Time :
7 work days
Packaging Details :
wooden package
Name :
CNC Laser Metal Cutting Machine
Type :
DXH-FC3015
Processing Area :
3000*1500mm
Cutting Thickness :
20mm
Control System :
PC
Laser Power :
IPG 1000W
Whole Power Consumption :
8-20KW
Power Supply :
380V/50HZ
Description

1000w CNC Laser Metal Cutting Machine Fiber Laser Cutter With Water Cooling System Automatic Operation System For Pipes

CNC LASER METAL CUTTING MACHINE INTRODUCE

Laser Cutting Machine integrates optical, mechanical and electrical technology into one machine, which adopts laser technology, computer control technology and high-performance CNC (computer numerical control) laser power system. Laser Cutting Machine is capable of processing all kinds of sheet metal with high speed and efficiency.

Laser Cutting Machine is applied in both metallic sheet and pipes cutting. The maximum size of sheet it can cut is that 3000mm×1500mm, the maximum size of pipes is that thickness 3mm, length 6000mm, round pipe Ф25-Ф160mm, square pipe 25mmx25mm-100mmx100mm (diagonal 30mm-160mm). The products will have smooth edge with high quality surface finish, small kerf width and little heat effect. The machine is especially suitable for cutting metal sheet or pipe.

IPG-1000W Fiber Laser

(1) Laser output power 1000W

(2) Laser wavelength 1070nm

(3) Output energy modulating 10%-100%

(4) Input Power <8KW

(5) Working Temperature 15-35ºC

Industry Application

Widely used in sheet metal processing, advertising signs production, high and low voltage electrical cabinet production, mechanical parts, kitchen utensils, automobiles, machinery, metal crafts, saw blades, electrical parts, glasses industry, spring, circuit boards, Electronics, hardware, knives and other industries.

Technical Parameters

Laser output power

1000w

Laser wavelength

1070nm

Laser medium

Glass fiber with rate-earth element

Laser beam quality

<0.373mrad

Min beam width

≤0.125mm

Max range for X axis

3000mm

Max range for Y axis

1500mm

Max range for Z axis

250mm

Axial accuracy

≤±0.05mm/m

Repeat accuracy

≤±0.03mm/m

Max size for cutting (XY axis)

3000mmx1500mm

Max thickness of cutting carbon steel

16mm (Optimum thickness 0.5--12mm)

Max thickness of cutting Stainless Steel

8mm (Optimum thickness 0.5--7mm)

Max size of cutting metal pipes

round pipe Ф160mm

square pipe 100mmx100mm (diagonal 30mm-160mm)

thickness 3mm, length 6000mm

Power supply

380V/50HZ


Fiber Metal Laser Cutting Machine / 3d Laser Metal Cutting Machine With Water Cooling System

RFQ

Question 1: I want to buy this machine,what suggestion can you give?
Answer:What material do you processing? What's the size of your material?(Better show me your product picture)

Question 2: What about the delivery time?
Answer: We are the manufacturer,for standard machines, about 7-10 working days.
Question 3: Where's your factory located? How can I visit there?
Answer: Our factory is located in Kunshan City,China. If you want to visit us, we will arrange to pick you up at airport or station.

Question 4: This is the first time I use this kind of machine, is it easy to operate?

Answer: There are english manual or guide video that show how to use machine.
Question 5: If machine have any problem after I using, how can I do ?
Answer: The warranty is one year.Within the warranty period if machine have any problem we will supply the accessories free.

our service

1) Machine has been adjusted before delivery.

2) English software, user manual and detailed installation & training Videos DVD

3) Warranty period: one year on parts from date of shipping date, 3 additional years on free repair. Life-time technical support.

4) Machine spare parts and repair service is offered in lifetime.

5) Free training is offered in the plant and free samples are available.

6) 24 hours technical support by e-mail, calling or door-to-door service.

7) Professional cnc machine supplier with 10 years experiences.

8) International quality certificate: CE, ISO9001

For more machine information, Please contact with Lucky at any time.

All our staffs sincerely invite you and your team visit our company at any time.
