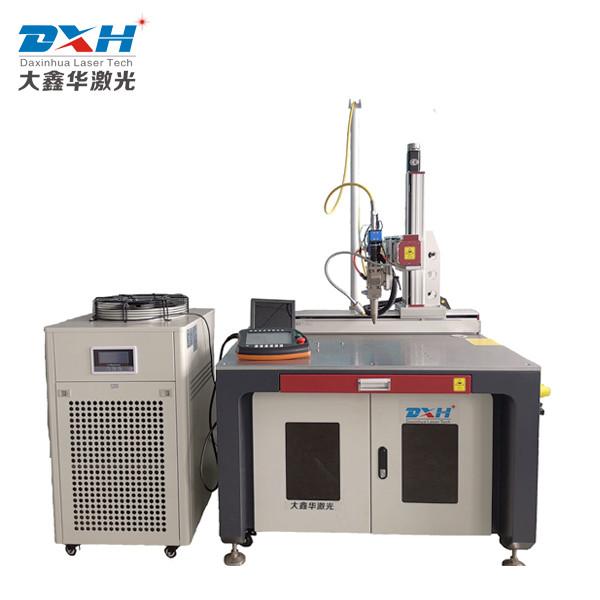

Automatic Continuous Welding Machine , 4 Axis Hand Held Laser Welding Machine
Automatic Continuous Welding Machine , 4 Axis Hand Held Laser Welding Machine
Automatic Continuous Welding Machine , 4 Axis Hand Held Laser Welding Machine
Automatic Continuous Welding Machine , 4 Axis Hand Held Laser Welding Machine
Specifications
Brand Name :
DXH LASER
Model Number :
DXH-WF200
Certification :
CE,FDA,SGS
Place of Origin :
Kunshan,China
MOQ :
1set
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100 sets per day
Delivery Time :
7 working days
Packaging Details :
wooden package
Name :
Fiber Laser Welding Machine With Robot Arm Welding
Type :
DXH-WF200
Laser Power :
200W 300W 500W
Pulse Max Energy :
80J
Laser Wavelength :
1064nm
Laser Welding Frequency :
≤100HZ
Laser Welding Depth :
0.1-2.0mm
Output Light :
1-4 roads
Cooling Type :
Water Cooling
Total Power :
≤6KW
Machine System Size :
1540*690*1550 mm
Description

Robot Six Axis Laser Welding Machine ( Fiber Laser Source )

​Introduce

  1. Robot six-axis laser welding machine is a high-energy laser beam coupling into the optical fiber, long-distance transmission, through collimating collimating parallel light, focusing on the workpiece to implement a welding laser welding equipment. Difficult to access the welding site, with simple universal instrument can be docking large molds, difficult to access the precision parts, the implementation of non-contact transmission of flexible transmission, with greater flexibility. The laser beam enables time and energy beam splitting, simultaneous multi-beam processing, and more precise welding conditions.

Feature

► Suitable for large format space welding, can be six-axis linkage, can be any space welding, not limited to plane welding.
► High repeatability, repeatable and repeatable welds.
► Some places can replace manual operation, suitable for some difficult space welding.

Application

  • Used in optical communications devices, medical, electronics, batteries, fiber coupling devices, CRT gun, metal parts, mobile phone vibration motors, watches precision parts, automotive steel precision welding.

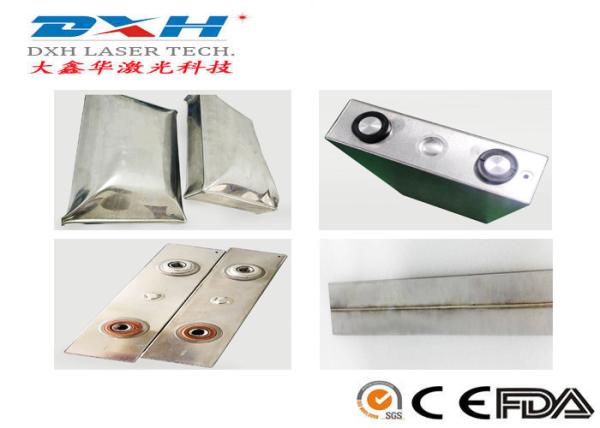

Samples

Automatic Continuous Welding Machine , 4 Axis Hand Held Laser Welding Machine

Technical Parameters

Technology Specifications (for reference)

Max Laser Power

500W

Single Pulse Max Capacity

120J

Laser Wavelength

1064nm

Laser Welding Frequency

≤100HZ

Laser Welding Depth

0.1-3.5mm

Pulse Width

0.1-50ms

Control System

IPC/CNC2000

Spot Size

0.2-2mm

Standard workbench

300*200mm/Optional

Positioning System

Red Indicator/CCD/Microscope

Power Requirement

380V/50HZ/40A

Cooling Type

With circulating water cooling

Power Consumption

15kw

Fiber Laser Welding System Pre-Sale and After-Sale Service:


Pre-sale Service
1. Welcome to send sample material to us for testing laser marking engraving effect for you.
2. We offer pictures, videos and other relevant documents for you to know more about the machine.
3. We are online and would respond fast to answer all your questions.
4. If you have chance visiting China, you are warmly welcome to visit our factory.


After-sale Service
1. Fiber Laser Welding Machine‘s warranty is 1 year. Any parts have a quality problem during the warranty period, We will send you a new replacement for free. And Customer affords the replacement shipping cost.
2. The training video, detailed manual, and catalog sent with the machine. The customer could study the operation of the machine by watching the clear training video. And the use of laser marking engraving machine will be very easy.
3. If there is a technical problem or new inquiry, Mactron?has a fast response to?service support by online or email even if need by the phone call.
4. Professional technical support and after sales following up. A free software update.
