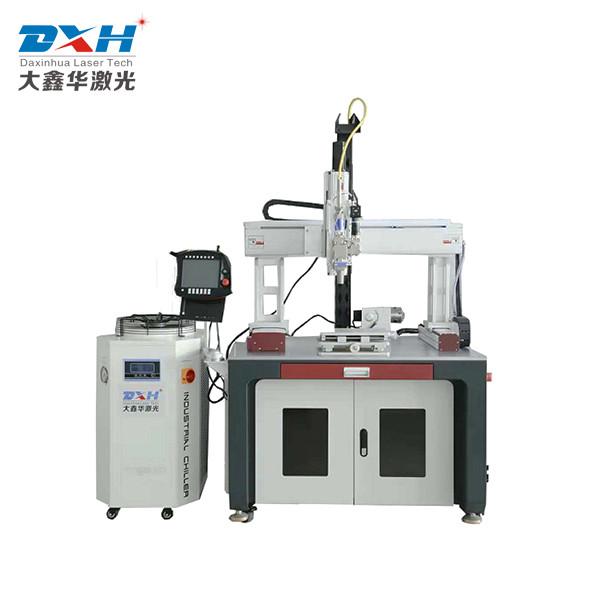

Medium High Power Cnc Laser Welding Machine / Portable Laser Welder 1000-3000W
Medium High Power Cnc Laser Welding Machine / Portable Laser Welder 1000-3000W
Medium High Power Cnc Laser Welding Machine / Portable Laser Welder 1000-3000W
Medium High Power Cnc Laser Welding Machine / Portable Laser Welder 1000-3000W
Specifications
Brand Name :
DXH LASER
Model Number :
DXH-MF1000
Certification :
CE,FDA,SGS
Place of Origin :
Kunshan,China
MOQ :
1set
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100 sets per day
Delivery Time :
7 working days
Packaging Details :
wooden package
Name :
Medium High Power Cnc Laser Welding Machine
Type :
DXH-MF1000
Laser Power :
1000-3000W
Pulse Max Energy :
80J
Laser Wavelength :
1064nm
Laser Welding Frequency :
≤100HZ
Laser Welding Depth :
0.1-2.0mm
Output Light :
1-4 roads
Cooling Type :
Water Cooling
Total Power :
≤6KW
Description

Fiber High Speed Spectroscopical Laser Welding Machine

​Introduce

  1. High-power fiber laser welding machine with 1000-3000 watt fiber laser, electro-optical conversion efficiency, long life laser, life expectancy up to 100,000 hours. Power 25% -30% conversion of energy into laser energy, photoelectric conversion rate is 10 times YAG laser, intelligent operation: light, machine, water, electricity, gas integrated anti-static type.

Features

► High energy density, low heat input, low thermal deformation, narrow melting and heat affected zone and large penetration.
► High cooling rate results in fine weld microstructure and good joint performance.
► Compared to contact welding, laser welding eliminates the need for electrodes, reducing man-hours and costs.
► Weld fine, deep, small dimensions, precision; smooth appearance, smooth, beautiful.
► No supplies, small size; flexible processing, low operating costs.
► Optical fiber transmission, can be equipped with assembly line or manipulator.

Application

  • For aviation, aerospace, automotive, power batteries, machinery manufacturing, shipping, chemical industry and daily necessities and other industries widely used.

Samples

Medium High Power Cnc Laser Welding Machine / Portable Laser Welder 1000-3000W

Technical Parameters

Technology Specifications(For Reference)

Max Laser Power

200W

300W

500W

Single pulse max capacity

80J

100J

120J

Laser Wavelength

1064nm

1064nm

1064nm

Laser Welding Frequency

≤100HZ

≤100HZ

≤100HZ

Laser Welding Depth

0.1-2.0mm

0.1-2.5mm

0.1-3.5mm

Output Light Path

1-4road/optional

1-4road/optional

1-4road/optional

Standard workbench

300*200mm/Optional

300*200mm/Optional

300*200mm/Optional

Positioning System

CCD/Microscope

CCD/Microscope

CCD/Microscope

Power Requirement

380V/50HZ/40A

380V/50HZ/40A

380V/50HZ/40A

Cooling Type

With circulating water cooling

With circulating water cooling

With circulating water cooling

Power Consumption

≤6KW

≤12KW

≤15KW

Fiber Laser Welding System Pre-Sale and After-Sale Service:
Pre-sale Service


1. Welcome to send sample material to us for testing laser marking engraving effect for you.


2. We offer pictures, videos and other relevant documents for you to know more about the machine.


3. We are online and would respond fast to answer all your questions.


4. If you have chance visiting China, you are warmly welcome to visit our factory.


After-sale Service


1. Fiber Laser Welding Machine‘s warranty is 1 year. Any parts have a quality problem during the warranty period, We will send you a new replacement for free. And Customer affords the replacement shipping cost.


2. The training video, detailed manual, and catalog sent with the machine. The customer could study the operation of the machine by watching the clear training video. And the use of laser marking engraving machine will be very easy.


3. If there is a technical problem or new inquiry, Mactron?has a fast response to?service support by online or email even if need by the phone call.


4. Professional technical support and after sales following up. A free software update.
