Specifications
Brand Name :
DXH Laser
Model Number :
DXH-FC3015
Certification :
CE,FDA,ISO9001
Place of Origin :
Kunshan,China.
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50 sets per day
Delivery Time :
7 work days
Packaging Details :
wooden package
Name :
CNC Laser Metal Cutting Machine
Type :
DXH-FC3015
Processing Area :
3000*1500mm
Cutting Thickness :
6mm
Control System :
PC
Laser Power :
500W-6000W
Whole Power Consumption :
8-20KW
Power Supply :
380V/50HZ
Description

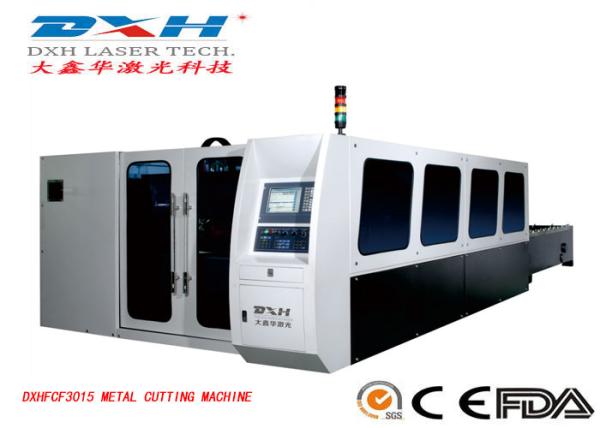

Fully Enclosed Fiber Laser Cutting Machinery Laser Power 500W to 6000W PC Control System Safety Operation

Technical Parameters

Equipment Models

DXHFC3015

Laser Output Power

500W-6000W

Laser Wavelength

1068~1080nm

Laser Quality

3.5~4mm*mrad

Minimum Line Width

≦0.15mm

Cooling Mode

Water Cooling

Maximum Cutting Range

3000mm×1500 mm

Travel of X-axis

3000mm

Travel of Y-axis

1500mm

Travel of Z-axis

> 250mm

Axial Positioning Accuracy of Workbench

0.05mm/m

Repetitive Positioning Accuracy of Workbench

≦±0.03mm

Cutting Processing Parameters of DXHFC4020 4000W Laser Cutting Machine

Material Maximum Cutting Thickness/mm Best Cutting Thickness Range/mm
Carbon Steel 25 0.5-20
Stainless Steel 12 0.5-10

NOTES:

1.Environment requirements of fiber laser source: temperature is about 15 to 35 degree, relative humidity is less than 85 percent.

2. Power distribution cabinet: 380V, 50Hz, three-phase and four wire with short circuit protection.

3. Equipment shall be installed with special grounding wire, the grounding resistance should not exceed 4Ω.

4.Necessary lifting equipment and personnel are provided.

5. Provide the necessary testing materials such as steel plate.

6. Auxiliary conditions for the normal operation of laser cutting equipment:

1) cutting auxiliary gas (N2, O2);

2) compressed air supply system without water and oil.

7. Equipment space and foundation requirements: the foundation is the concrete, the minimum thickness is 300 mm; no earthquake around the foundation or shock absorber.

Fully Enclosed Fiber Laser Metal Cutting Machine , CNC Metal Laser Cutter PC Control

RFQ
Question 1: I want to buy this machine,what suggestion can you give?
Answer:What material do you processing? What's the size of your material?(Better show me your product picture)
Question 2: What about the delivery time?
Answer: We are the manufacturer,for standard machines, about 7-10 working days.
Question 3: Where's your factory located? How can I visit there?
Answer: Our factory is located in Kunshan City,China. If you want to visit us, we will arrange to pick you up at airport or station.
Question 4: This is the first time I use this kind of machine, is it easy to operate?
Answer: There are english manual or guide video that show how to use machine.
Question 5: If machine have any problem after I using, how can I do ?
Answer: The warranty is one year.Within the warranty period if machine have any problem we will supply the accessories free.

our service

1) Machine has been adjusted before delivery.
2) English software, user manual and detailed installation & training Videos DVD
3) Warranty period: one year on parts from date of shipping date, 3 additional years on free repair. Life-time technical support.
4) Machine spare parts and repair service is offered in lifetime.
5) Free training is offered in the plant and free samples are available.
6) 24 hours technical support by e-mail, calling or door-to-door service.
7) Professional cnc machine supplier with 10 years experiences.
8) International quality certificate: CE, ISO9001

For more machine information, Please contact with Lucky at any time.
