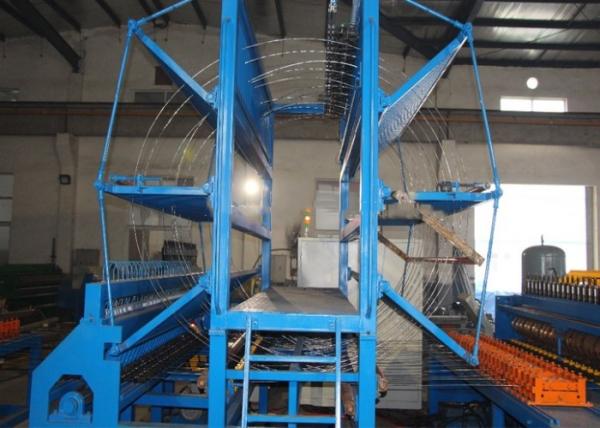

3 - 8mm Construction Cold Ribbed Steel Bar Mesh Welding Machine

description

We are produce and sell kinds of wire mesh machine, the usage is prevention road, railway, airport, residence

district, seaport, garden, feeding and husbandry, Welded steel bar panels are widely used in construction

reinforcement, the ground for the tunnels, bridges, highway, airport and wharf, also in construction of wall body.

.
Features

1. The machine is used for wire diameter 5-12mm, it is an automatic equipment that desiged and manufactured by ourselves. This machine is driven by pneumatic system and composed of line wire support system, water cooling welding transformer, pneumatic control cross wire falling system, servo motor pulling mesh device.
2. Water-cooling transformer and water-cooling lower electrodes to make sure the welding firm during a long working time, and prolong the service life.
3. Feeding and Welding System Cross wire feeding: Firstly, the coil wires are straighten and cut into fixed length by straightening cutting machine, which become weft wire. Then worker put the weft wires into wire hopper. Wire hopper under the control of step motor, the weft wires falling automatically one by one
Line wire feeding: warp wires are the same to weft wires, firstly use straightening cutting machine to straighten and cut coil wire into fixed length. Then the line wires are sent by labor and fed automatically, when it welding and drawing, labors can prepare the wires, it increases the production efficiency.
4. The mesh pulling system is controlled by step motor, which makes the pulling mesh aperture more standard
and accurate.
5. Mesh falling system: Automatic falling mesh panel system is adopted, so it save much labor to move the mesh panels.

Specification

Usage
Construction reinforcing mesh, highway cement concrete pavement using mesh reinforcement , bridge deck pavement using mesh reinforcements, sprayed concrete with mesh reinforcement, tunnel lining with steel mesh

service

1. Quality Products:
We follow the policy of Seeking Development through Qualityand Establishing Reputation via Quality Products. We try to meet customers' requirements with excellent quality products.
2. Honest Service:
We offer honest service to customers. We provide products with sincere and excellent service and the most prompt delivery.
3.Innovation:
We have advanced inspection and production equipment and can develop new products to meet the demand of market. We can also accept customized orders. Our strong R&D capability enables us to innovate almost everyday.
4.We enjoy:
Advanced wire mesh weaving machines; Experienced and well-trained work staff; Quali
