Hydraulic Straightening And Cutting Wire Machine , CNC Straightening Cutting Machine Low Noise
Hydraulic Straightening And Cutting Wire Machine , CNC Straightening Cutting Machine Low Noise
Hydraulic Straightening And Cutting Wire Machine , CNC Straightening Cutting Machine Low Noise
Hydraulic Straightening And Cutting Wire Machine , CNC Straightening Cutting Machine Low Noise
Hydraulic Straightening And Cutting Wire Machine , CNC Straightening Cutting Machine Low Noise
Hydraulic Straightening And Cutting Wire Machine , CNC Straightening Cutting Machine Low Noise
Specifications
Brand Name :
Chengke
Model Number :
CK-WS
Certification :
ISO
Place of Origin :
Heibei China
MOQ :
1 Set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
30 Sets
Delivery Time :
15 Works day
Packaging Details :
No
Condition :
New
Speed :
18-25m/min
Voltage :
380v
Product Name :
Wire Rod Straightening Machine
Warranty :
1 Year
After-sales :
overseas service provided
Description

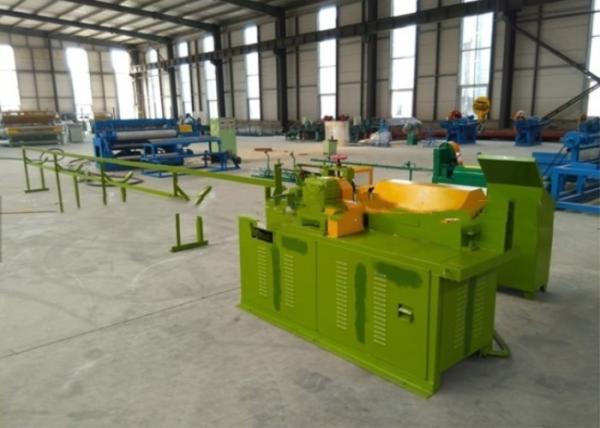

Hydraulic Cut Off Low Noise CNC Steel Rod Straightening And Cutting Machine


description

1. Wire straightener and cutting machine can straighten and cut stainless steel wire, aluminum wire, cold-drawing wire and steel wire.
2. This kind of machine wire diameter is from 1.5 to 12mm.
3. The length could adjust according to customers demand. It is used in straightening-cutting stainless steel wire, aluminum wire, cold-drawing wire, and steel wire with plastics.
4. This machine has many advantages, such as neat cutting mouth, less error and good functions.

Features

1. Different lengths and numbers are remembered by the machine;
2. Hydraulic cut off, high accuracy but low noise;
3. Covering Less Space,convenient to move and install ;
4. Running steadily, easy to maintain, exchange parts are available;
5. Alter number and length without shutting;
6. Number of machines can be operated by one worker at a time.

parameters

ModelUnitCK1.5-3.5CK2-5CK3-6CK4-8CK4-12CK5-12
wire diametermm1.5-3.52.0-5.03.0-6.04.0-8.04.0-125.0-12
Cutting lengthmm30-200030-600030-6000200-6000200-6000600-12000
Cut errormm+/- 1+/- 2+/- 3+/- 4+/- 5+/- 10
Speedm/min253030353045
Straight motorkw1.51.52.247.511
Cut motorkw0.750.750.75344


SALES SERVICE

1. Machine to be installed and commissioned by our technicians. We can send our technician to install the machine accordingly if the buyer need.
2. Training: the buyer should charge of visa, return ticket, food and accommodation overseas and USD100/person/day for salary.
3. Technician: Normally need one or two technician.
4 Training time: one week (contains the time of installation and adjustment)
