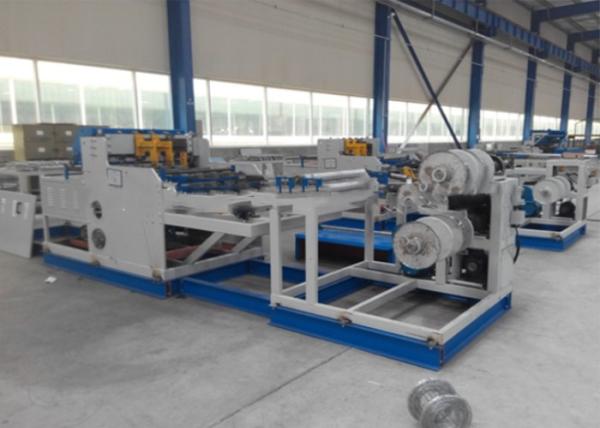

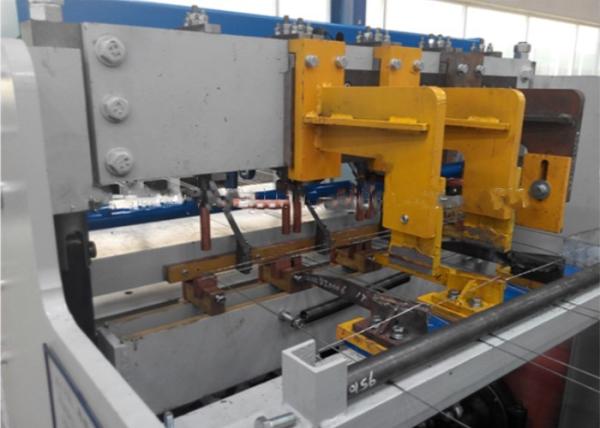

Galvanized Wire Brick Force Wire Making Machine Wire Diameter 1.5 - 3.0mm Semi Automatic
Galvanized Wire Brick Force Wire Making Machine Wire Diameter 1.5 - 3.0mm Semi Automatic
Galvanized Wire Brick Force Wire Making Machine Wire Diameter 1.5 - 3.0mm Semi Automatic
Galvanized Wire Brick Force Wire Making Machine Wire Diameter 1.5 - 3.0mm Semi Automatic
Galvanized Wire Brick Force Wire Making Machine Wire Diameter 1.5 - 3.0mm Semi Automatic
Galvanized Wire Brick Force Wire Making Machine Wire Diameter 1.5 - 3.0mm Semi Automatic
Galvanized Wire Brick Force Wire Making Machine Wire Diameter 1.5 - 3.0mm Semi Automatic
Galvanized Wire Brick Force Wire Making Machine Wire Diameter 1.5 - 3.0mm Semi Automatic
Specifications
Brand Name :
ChengKe
Model Number :
CK-BM-780Q
Certification :
ISO
Place of Origin :
Hebei China
MOQ :
1 Set
Payment Terms :
L/C, T/T, , Western Union
Supply Ability :
35 Sets
Delivery Time :
15 work Days
Packaging Details :
Packed according to international standard or as request
Product Name :
Semi Automatic Galvanized Wire Brick Force Wire Making Machine
Mesh Width :
780 mm
Wire diameter :
1.5-3.0mm
Welding Speed :
40times/min
Original :
China
After Sale :
Engineers Available To Service Overseas
Description

Semi Automatic Galvanized Wire Brick Force Wire Making Machine

description

1. The machine adopts synchronous control technique.

2. The welding time and separate welding are controlled by PLC for system digital input panel or touch screen buttons.It can be more intelligent operations and rationalizing.

3. The advantages of the device are stable performance ,strong welding spot and accurate welding aperture.

4. The machine adopts synchronous control technology of power electric,auto-sharding,automatic rolling,high yield,stable performance,strong welding spot,without welded tracks.

5. It is easy for operator.

Features

This operation is accurate, it has stable function, firm welded point and without tracks.

Not only welding speed is fast but also it is easy to learn and operate.

The stop motor controls fallen wefts structure and drawing materials are automatic so it is even and accurate, the edge of mesh is regular, it is unnecessary to slice the side.

Drawing mesh adopts the device with the elastic tension link and fixing the mesh, it is easy to regulate mesh hole and mesh size is rather accurate, welding aperture could also adjust randomly within the range.

Usage

It is usually applied to wall reinforcement,has the characteristics of seismic resistance.

Packing

1 . The spare parts and control cabinet will be loaded in wooden box.
2 . The main machine is nude packing or plastic packing

Specification

Semi Automatic Galvanized Wire Brick Force Wire Making Machine
Number of electrodes 8 or 6
Max mesh width 780 mm
Wire diameter 1 . 5 - 3 . o mm
Cross wire space 75 , 115 , 150 , 230 mm
Line wire space 300 mm
Power capacity 160 KVA
Welding speed 30 - 40 nips/minute
Control system PLC control

Service

Pre-Sales Service:

Inquiry and consulting support.

Sample testing support.

View our Factory.

Online visit

After-Sales Service:

Training how to install,operate and maintain the machine.

Engineers available to service machinery overseas.

One year gurantee for the whole machine.

Operation manual is availabl
