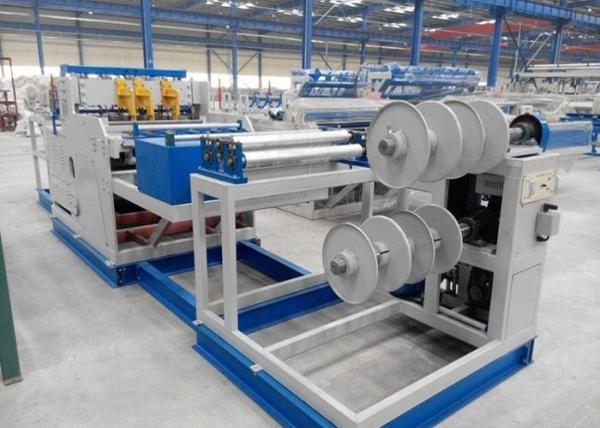

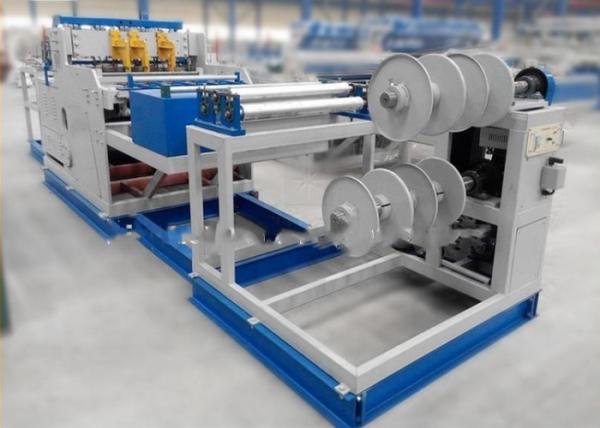

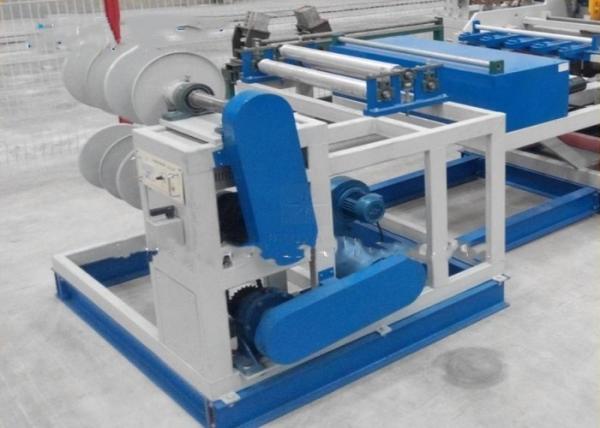

Low Carbon Steel Brick Force Wire Making Machine Rated Power 72KVA 6 X 1.5 X1.5M
Low Carbon Steel Brick Force Wire Making Machine Rated Power 72KVA 6 X 1.5 X1.5M
Low Carbon Steel Brick Force Wire Making Machine Rated Power 72KVA 6 X 1.5 X1.5M
Low Carbon Steel Brick Force Wire Making Machine Rated Power 72KVA 6 X 1.5 X1.5M
Low Carbon Steel Brick Force Wire Making Machine Rated Power 72KVA 6 X 1.5 X1.5M
Low Carbon Steel Brick Force Wire Making Machine Rated Power 72KVA 6 X 1.5 X1.5M
Low Carbon Steel Brick Force Wire Making Machine Rated Power 72KVA 6 X 1.5 X1.5M
Low Carbon Steel Brick Force Wire Making Machine Rated Power 72KVA 6 X 1.5 X1.5M
Specifications
Brand Name :
ChengKe
Model Number :
CK-BM-780Q
Certification :
ISO
Place of Origin :
Hebei China
MOQ :
1 Set
Payment Terms :
L/C, T/T, , Western Union
Supply Ability :
30 Sets/Month
Delivery Time :
15 Workdays
Packaging Details :
Packed according to international standard or as request
Product Name :
Brick Reinforcement Wire Welding Machinery
Mesh Width :
780 mm
Wire diameter :
1.5-3.0mm
Welding Speed :
40times/min
Voltage :
380V
After Sale :
Engineers Available To Service Overseas
Description

Automatic High Quality Brick Reinforcement Wire Welding Machinery

description

This operation is accurate, it has stable function, firm welded point and without tracks. Not only welding speed is fast but also it is easy to learn and operate.

The stop motor controls fallen wefts structure and drawing materials are automatic so it is even and accurate, the edge of mesh is regular, it is unnecessary to slice the side.

Drawing mesh adopts the device with the elastic tension link and fixing the mesh, it is easy to regulate mesh hole and mesh size is rather accurate, welding aperture could also adjust randomly within the range.

It is automatic to make mesh in pieces and in rolls.

Specification

Wire diameter 1.6-2.5mm Rated voltage 380V
Space of cross wires 65,115,165mm Space of line wires 250-300mm
Rated power 72KVA Number of electrodes 6 or 8
Overall dimension 6X 1.5 X1.5M Welding speed 45 times/min

Features

1. wire dia:2-3 mm ,
the cross spacing : 57mm,75mm,230mm
the line spacing :300mm

2. wire dia:1.5-2.5mm
the cross spacing:115mm,230mm
the line spacing :300mm

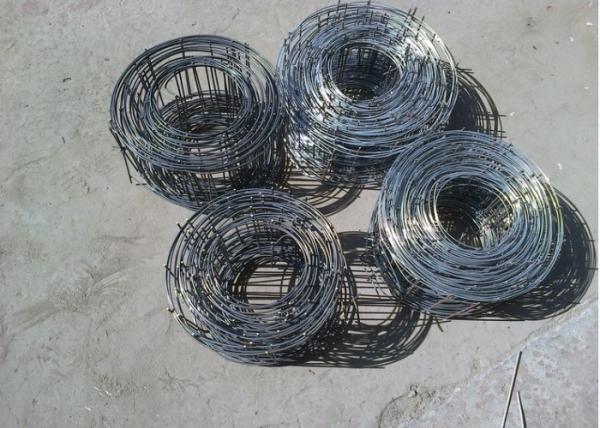

Both machine could produce three pieces of wire mesh at the same time.Each piece of mesh have 8mm extra length at both side.
The available wire is black wire or galvanized wire.

Usage

It is usually applied to wall reinforcement,has the characteristics of seismic resistance.

Packing

1 . The spare parts and control cabinet will be loaded in wooden box.
2 . The main machine is nude packing or plastic packing

Service

Pre-Sales Service:

Inquiry and consulting support.

Sample testing support.

View our Factory.

Online visit

After-Sales Service:

Training how to install,operate and maintain the machine.

Engineers available to service machinery overseas.

One year gurantee for the whole machine.

Operation manual is availabl
