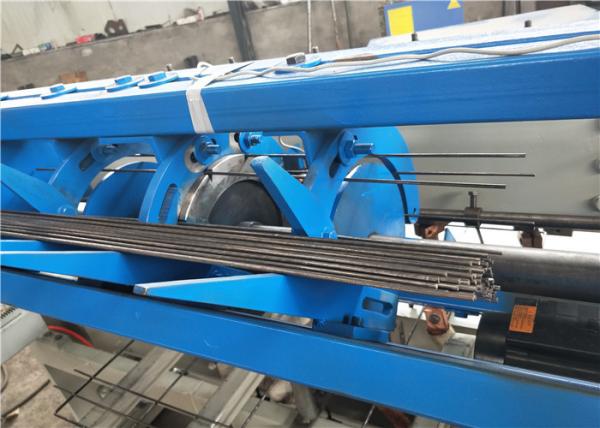

PLC Control Chicken Cage Welding Machine Easy Operation For Galvanized Mesh
PLC Control Chicken Cage Welding Machine Easy Operation For Galvanized Mesh
PLC Control Chicken Cage Welding Machine Easy Operation For Galvanized Mesh
PLC Control Chicken Cage Welding Machine Easy Operation For Galvanized Mesh
PLC Control Chicken Cage Welding Machine Easy Operation For Galvanized Mesh
PLC Control Chicken Cage Welding Machine Easy Operation For Galvanized Mesh
PLC Control Chicken Cage Welding Machine Easy Operation For Galvanized Mesh
PLC Control Chicken Cage Welding Machine Easy Operation For Galvanized Mesh
Specifications
Brand Name :
Chengke
Model Number :
JK - AC - 1200Q
Certification :
ISO
Place of Origin :
Heibei China
MOQ :
1 Set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
30 Sets/Month
Delivery Time :
15 Workdays
Packaging Details :
with plastic package
Product Name :
PLC Control Galvanized Mesh Chicken Cage Welding Machine
Wire diameter :
1.5-3mm
Warranty :
1 Year
Voltage :
380V
wire space :
50-200mm
speedy :
50-60times/min
Description

PLC Control Galvanized Mesh Chicken Cage Welding Machine Easy Operation

description

The machine is made of thick steel plate and profile steel, high strength, high toughness, main structure more solid.The welding adopts synchronous power control and separate-control, making the welding transformers working separately to reduce the capacity requirement of power transformer, reduce the impact current.The cross wire space adjustment adopts PLC micro-computer control, set on the touch screen.The mesh pulling system in cycle is automatically calculated. The mesh pulling car can pulling mesh by the cycle automatically.The machine will stop working automatically if there is no cross wires in hopper device.The cutting machine can cut the mesh as demand length automaticall

Features

1. The line wire is coil wire feeding.

2. The weft wire is pre-straight and pre-cut.

3. The welding power comes from the spring. It is easily to control the welding pressure, more over ten times than the traditional hopper.

4. The machine uses synchronous control technique, welding time and separate welding adopt Japan, Sony digital control system which can be input to touch screen control panel to adjust the mesh size, and it can weld different size mesh on the same wire mesh panel.

5. The mesh pulling system is controlled by step motor, which makes the pulling mesh aperture more standard and accurate.

6. This kind of machine is used for 2-5mm. It is an automatic welding equipment designed and manufactured by ourselves absorbing advanced resistance welding technology from home and abroad.

Specification

Name Parament Unit
Wire diameter 2-5 mm
Width of mesh 2000 mm
Weft Wire Distance 100-200 mm
Warp Wire Distance 100-200 mm
welded points 21 points
Welding frequency 40-60 times/min
Weight 3.5 ton
Rated capacity 4*125 kva
Dimension (L x W x H) 2.7*2.3*1.5 m
Rated voltage 380/420 V
Need Worker 2-3 person
