5 - 12mm Steel Bar Straightening And Cutting Machine , Deformed Rebar Straightening Machine
5 - 12mm Steel Bar Straightening And Cutting Machine , Deformed Rebar Straightening Machine
5 - 12mm Steel Bar Straightening And Cutting Machine , Deformed Rebar Straightening Machine
5 - 12mm Steel Bar Straightening And Cutting Machine , Deformed Rebar Straightening Machine
5 - 12mm Steel Bar Straightening And Cutting Machine , Deformed Rebar Straightening Machine
5 - 12mm Steel Bar Straightening And Cutting Machine , Deformed Rebar Straightening Machine
5 - 12mm Steel Bar Straightening And Cutting Machine , Deformed Rebar Straightening Machine
5 - 12mm Steel Bar Straightening And Cutting Machine , Deformed Rebar Straightening Machine
Specifications
Brand Name :
Chengke
Model Number :
CK-WS
Certification :
ISO
Place of Origin :
Heibei China
MOQ :
1 Set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
30 Sets
Delivery Time :
15 Works day
Packaging Details :
No
Condition :
New
wire length :
0.8-12M
Color :
Customer Demand
Cutting Thickness :
5-12MM
Warranty :
1 Year
After-sales :
overseas service provided
Description

5 - 12mm Wire Rod Straightening And Cutting Machine Automatic Fall Silk

description


Firstly, the speed of the motor is driven by the belt drive, which makes the straightening tube rotate at high speed, and the steel bar through the straightening tube is straightened, and the rust skin of the steel surface is removed by the straightening mold.

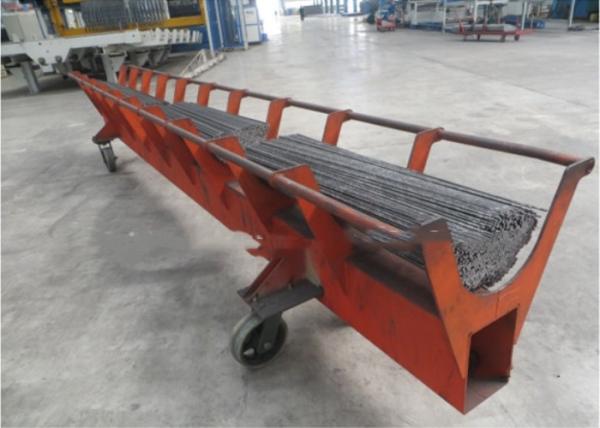

By the motor through another pair deceleration belt drive and gear reducer, on the one hand, drive two transfer roller, traction bar movement forward, drive the crank pulley on the other hand, under the hammer head movement when steel bar until the scheduled length, hammer hammer head, cutting the steel, cut off the steel into the rack, due to the spring action, knife back in situ, to complete a cycle

Features

1. High speed: this machine can reach high speed 130 m/min that is 3 or 4 times of the same kind machine of other companies. 2. Accurate cutting precision : this is the outstanding advantage of our machine and the tolerance of cutting length is ±1mm.

3. Accurate straightening precision: straightened wire precision is ≤2mm/m.

4. Finished wire length can be as short as 0.8m which is much appliable for short wire straightening.

5. Wide range application: wide range raw material is suitable for this kind machine such as sooth round steel, cold ribbed steel or

deformed steel bar. We can recommend the machine according to the raw material.

6. Easy operation: the machine is fully automatic and be controlled by PLC systerm and only one person is enough for operation.

7. Smooth working process: precise machine part and strict quality control making sooth working for long time.

parameters

Model CK5-12mm
Wire diameter 6.0 ~ 12.0mm
Cutting Length 0.8~12m

Length precision

Straightening precision

≤±1mm

≤2
Straightening precision ≤2mm
Straightening motor 30KW
Cutting motor 4KW
Power 380V 50hz
Speed 3 level:70,100,130 m/min, speed adjustable
