Rebar Butt Electric Spot Welder , Flash Butt Welding Machine For Steel Strip / Rod / Steel Tube
Rebar Butt Electric Spot Welder , Flash Butt Welding Machine For Steel Strip / Rod / Steel Tube
Rebar Butt Electric Spot Welder , Flash Butt Welding Machine For Steel Strip / Rod / Steel Tube
Rebar Butt Electric Spot Welder , Flash Butt Welding Machine For Steel Strip / Rod / Steel Tube
Rebar Butt Electric Spot Welder , Flash Butt Welding Machine For Steel Strip / Rod / Steel Tube
Rebar Butt Electric Spot Welder , Flash Butt Welding Machine For Steel Strip / Rod / Steel Tube
Rebar Butt Electric Spot Welder , Flash Butt Welding Machine For Steel Strip / Rod / Steel Tube
Rebar Butt Electric Spot Welder , Flash Butt Welding Machine For Steel Strip / Rod / Steel Tube
Specifications
Brand Name :
Chengke
Model Number :
CK-SW
Certification :
ISO
Place of Origin :
Heibei China
MOQ :
1 Set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50 Sets/Month
Delivery Time :
15 Workdays
Packaging Details :
No
Condition :
New
Input Voltage :
380V
Power :
100KVA
Usage :
Rebar Butt Welding
After-sales :
overseas service provided
Color :
Blue,white
Description

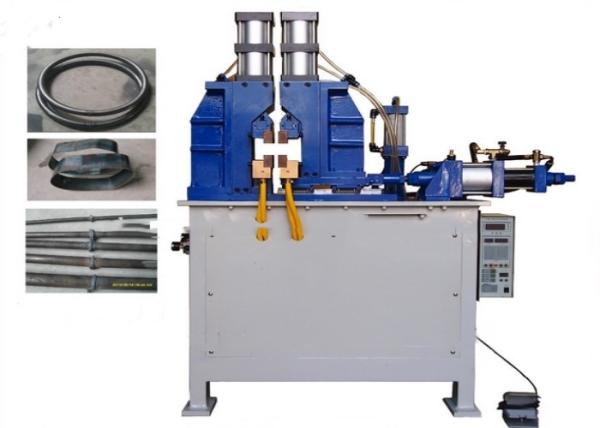

Flash Butt Welding Machine For steel strip , steel rod , steel tube

description

Butt welding machine, also known as current welding machine or resistance touch welding machine using the resistance between the two workpiece interface, instant by low voltage large current, make two mutual butt joint of metal surface instantaneous heat to melt and fusion

Features

Clamp the welding parts by welding electrode firstly without touch, then driving the welding electrode

slowly together with a preheat current to flash clean the oxidation and uneven surface to make welding

area as hot plasticizing. The temperature of welding area turn to more and more heat and the welding

current density increasing together, flash and splash make two touch surface has melted together.

Finally perform a fast upsetting force on welding joint to finish welding and breaking current. This type

welding joint has high strength without false welding and pores.

Specification

Model

Rated

Power

Rated

Voltage

Rated

Frequency

Max

Short

Current

Rated

Duty

Cycle

Max

Clamping

Force

Max

Upsetting

Force

Cooling

Water

Required
CK-50 50KVA 380V 50/60Hz 19000A 50% 4000N 2000N 150L/H
CK-75 75KVA 380V 50/60Hz 24000A 50% 6500N 3000N 150L/H
CK-100 100KVA 380V 50/60Hz 28000A 50% 6500N 3000N 150L/H
CK-150 150KVA 380V 50/60Hz 32000A 50% 8500N 4000N 300L/H
CK-200 200KVA 380V 50/60Hz 37000A 50% 8500N 4000N 300L/H
CK-250 250KVA 380V 50/60Hz 45000A 50% 12000N 6000N 600L/H
CK-300 300KVA 380V 50/60Hz 52000A 50% 12000N 6000N 600L/H

Usage

1. All kinds of dinnerware,knives

2. Bicycle rim,motorbike rim,car rim,or similar strip rings

3. Various steel strip,steel rod, construction rebar,round tube and square tube
