25 - 35 Bottles / Min Automatic Bottling Line , Round Cans Commercial Bottling Equipment
25 - 35 Bottles / Min Automatic Bottling Line , Round Cans Commercial Bottling Equipment
Specifications
Brand Name :
V-pack
Power :
up to 1.6KW
Speed :
40 ~ 60 cans / minute
Weight :
500KG (about)
Usage :
zip-top can packaging
Sealing height :
40-200mm
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Packaging Details :
Wooden case
Delivery Time :
1 Month
Payment Terms :
50% deposit and 50% be paid before shipment
Supply Ability :
80 sets/ month
Description

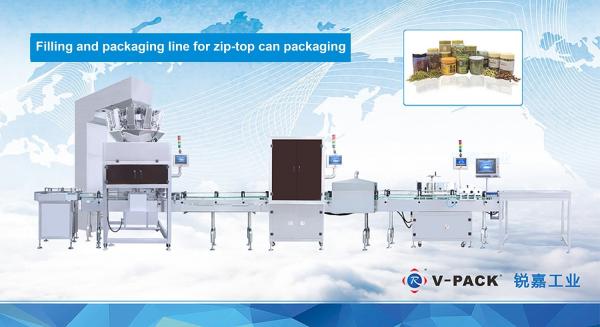

filling and packaing line for zip-top can packaging

The packaging line is applicable to all categories of medicines (including plant roots, stems, leaves, flowers, seeds, fruits), whose formula granule was mixed by the sieving of the extracted, dried powder and fine powder after dry granulation or wet granulation (particles containing powder ≤13%). The packaging line is with automatic unscrambling bottle, weighing, filling, capping, sealing and labeling functions. The device is able to achieve artificial bottle, after the material's ready, following by manual putting the bottles, it automatic unscramble the bottle, weighing, filling, capping, sealing, labeling, the whole process until the bar code and RFID reader identifies the poor.

Description:

This packaging line is applied to the packaging of a variety of PE zip-top cans, aluminum cans, paper cans and other round zip-top cans. It consists of bottle unscrambling, weighing and filling, capping and labeling machines. Easy to operate, and is widely to use in food, beverage, pharmaceutical, scented tea, health care products and big health industry.

Specifications:

  • Name: turntable bottle machine

Model: VPA-5V1

Total power: AC220V±10% 3P 50Hz/60Hz

Total power: up to 0.2KW

Bottle efficiency: 40 bottles / min

Gas source: dry compressed air 0.6MPa

Function:

The main function of this machine is to complete the sorting and conveying of the bottles. Controlled by Siemens PLC and MCU. Operation mode: automatic mode and semi-automatic mode. Transmission system chain drive can ensure the stability of feeding. The contact material parts are made of food grade stainless steel and meet the national standards. The utility model has the advantages of beautiful appearance, reasonable structural design, and quick and easy replacement of wearing parts. Easy to operate, stable operation and so on.

Function: Power the rotation of the turntable to realize the function of bottle transport.

  • VPA-908B automatic weighing filling machine

Function:

The main function of this machine is to complete the weighing and filling of materials. Controlled by Siemens PLC and MCU. Mode of operation: automatic mode. The transmission system adopts imported servo motor feeding and linear electromagnetic feeder feeding, which can ensure the stability of feeding efficiently. The contact material parts are made of food grade stainless steel and meet the national standards. The utility model has the advantages of beautiful appearance, reasonable structural design, and quick and easy replacement of wearing parts. Easy to operate, stable operation and so on.

Technical parameters:

Model: VPA-908B

Total power: AC220V±10% 3P 50Hz/60Hz

Total power: up to 1.6KW

Filling efficiency: 25 ~ 35 bottles / min

Gas source: dry compressed air 0.4 ~ 0.7MPa

Specifications:

Power supply: single phase 220V ± 10% 50Hz

Power: up to 1.6KW

Air source: dry and clean compressed air 0.4-0.7ba

Weight: 200Kg

  • VPCA150618 automatic capping machine

Specifications:

Power supply: single phase 220V +/-10% 50Hz

Power: up to 1.6KW

Air source: dry and clean compressed air 0.6 Mba

Speed: 40 ~ 60 cans / minute

Weight: 500KG (about)

Sealing height: 40-200mm

Applicable bottle diameter: 35-100mm

Working temperature: 0 ~ 45 degree, working humidity: 35 ~ 85%
