Full Servo 2-color Silk Screen Printer Plus Hot Stamping With Vision Camera Orientation For Cream Jar SF-MP310
Full Servo 2-color Silk Screen Printer Plus Hot Stamping With Vision Camera Orientation For Cream Jar SF-MP310
Full Servo 2-color Silk Screen Printer Plus Hot Stamping With Vision Camera Orientation For Cream Jar SF-MP310
Full Servo 2-color Silk Screen Printer Plus Hot Stamping With Vision Camera Orientation For Cream Jar SF-MP310
Full Servo 2-color Silk Screen Printer Plus Hot Stamping With Vision Camera Orientation For Cream Jar SF-MP310
Full Servo 2-color Silk Screen Printer Plus Hot Stamping With Vision Camera Orientation For Cream Jar SF-MP310
Full Servo 2-color Silk Screen Printer Plus Hot Stamping With Vision Camera Orientation For Cream Jar SF-MP310
Full Servo 2-color Silk Screen Printer Plus Hot Stamping With Vision Camera Orientation For Cream Jar SF-MP310
Full Servo 2-color Silk Screen Printer Plus Hot Stamping With Vision Camera Orientation For Cream Jar SF-MP310
Full Servo 2-color Silk Screen Printer Plus Hot Stamping With Vision Camera Orientation For Cream Jar SF-MP310
Full Servo 2-color Silk Screen Printer Plus Hot Stamping With Vision Camera Orientation For Cream Jar SF-MP310
Full Servo 2-color Silk Screen Printer Plus Hot Stamping With Vision Camera Orientation For Cream Jar SF-MP310
Specifications
Brand Name :
EASY-SHENFA
Model Number :
SF-MP310
Certification :
CE
Place of Origin :
Guangzhou, China
MOQ :
1SET
Payment Terms :
TT, LC
Supply Ability :
10sets/Month
Delivery Time :
About 3-4weeks
Packaging Details :
Wooden case
Product Size :
φ(25-100)X H(40-300)mm
Max.speed :
60 pcs/min
Air Pressure :
5-7bar
Dimension :
L 290 x W 260 x H 235cm
Power :
AC380V 50/60Hz 35kw
Warranty :
1 Year
Dryer :
LED Dryer or UV dryer
Color :
2 colors screen printing plus hot stamping
Description

Application:

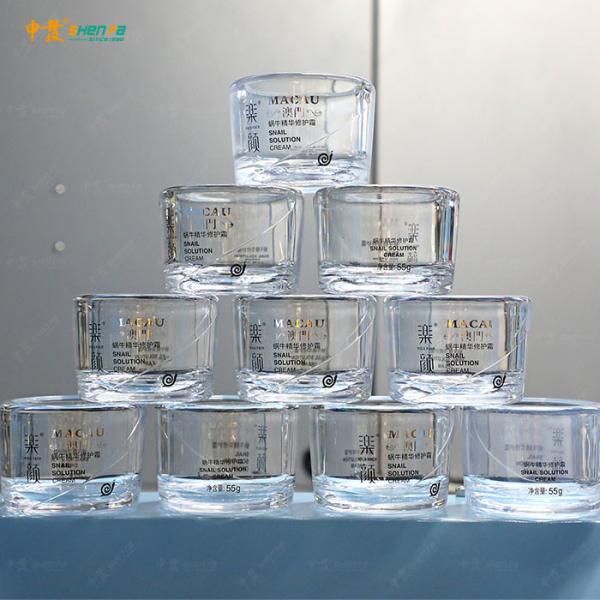

This machine is designed for round, oval, square, more irregular glass /plastic/metal bottles and cream jar screen printing and hot stamping.

It is capable of printing multicolor on round containers without color registration point.

Technical Parameters:

Model Name Max.printing size Speed(Pieces/minute) Machine size(LxWxH) Net Weight Air Pressure(bar) Power
SF-MP310

Automatic

2-color

Screen Printing Plus Hot Stamping Machine

 φ(25-100)xH (40X300)cm 60 290X260X235cm 3000kg 5-7 AC380V 50/60Hz 35kw

Features:

1.All jigs installed with servo motors for rotation(no need gears ,easy and fast product changeover);

2.Can print multicolor on cylindrical bottles and jar without registration point.

3.This machine adopts module design,can combine screen printing and hot stamping according to customer specific need.

4.Vision positioning system and visual Inspection system are optional upon customer's requirement.

5.Screen printing and hot stamping in 1 process.

6.Auto anti-static dust cleaning system before printing optional.

The machine details:

1.Anti-static system:

Full Servo 2-color Silk Screen Printer Plus Hot Stamping With Vision Camera Orientation For Cream Jar SF-MP310

2.Auto Unloading system:

Full Servo 2-color Silk Screen Printer Plus Hot Stamping With Vision Camera Orientation For Cream Jar SF-MP310

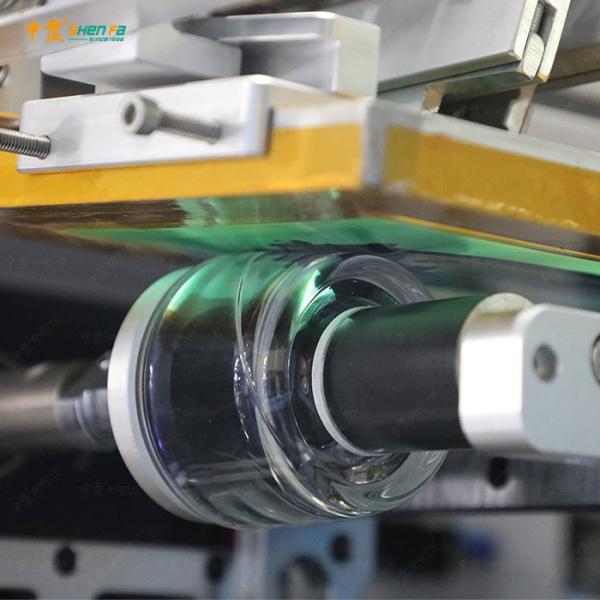

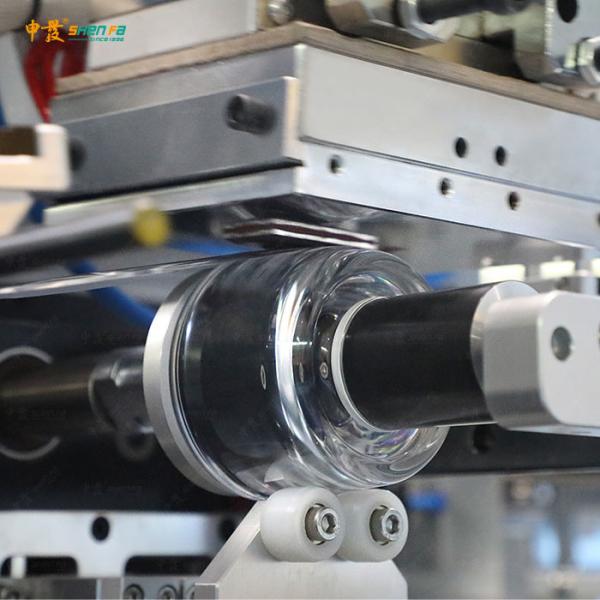

3. Screen printing device:

Full Servo 2-color Silk Screen Printer Plus Hot Stamping With Vision Camera Orientation For Cream Jar SF-MP310

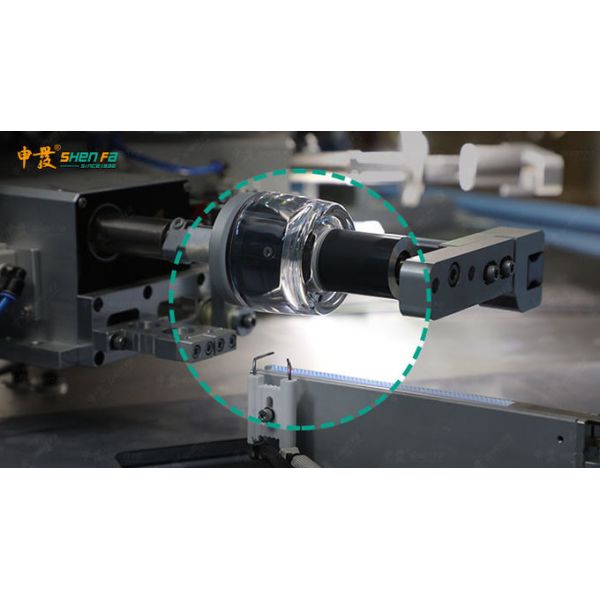

4.Vision Camera Orientation:

Full Servo 2-color Silk Screen Printer Plus Hot Stamping With Vision Camera Orientation For Cream Jar SF-MP310

5.Flame treatment system:

Full Servo 2-color Silk Screen Printer Plus Hot Stamping With Vision Camera Orientation For Cream Jar SF-MP310

6.LED drying or UV drying

Full Servo 2-color Silk Screen Printer Plus Hot Stamping With Vision Camera Orientation For Cream Jar SF-MP310

7.Hot stamping device:

Full Servo 2-color Silk Screen Printer Plus Hot Stamping With Vision Camera Orientation For Cream Jar SF-MP310
