4 Colors Automatic Screen Printing Machine 45KW For Irregular Shapes Products
4 Colors Automatic Screen Printing Machine 45KW For Irregular Shapes Products
4 Colors Automatic Screen Printing Machine 45KW For Irregular Shapes Products
4 Colors Automatic Screen Printing Machine 45KW For Irregular Shapes Products
4 Colors Automatic Screen Printing Machine 45KW For Irregular Shapes Products
4 Colors Automatic Screen Printing Machine 45KW For Irregular Shapes Products
4 Colors Automatic Screen Printing Machine 45KW For Irregular Shapes Products
4 Colors Automatic Screen Printing Machine 45KW For Irregular Shapes Products
4 Colors Automatic Screen Printing Machine 45KW For Irregular Shapes Products
4 Colors Automatic Screen Printing Machine 45KW For Irregular Shapes Products
Specifications
Brand Name :
EASY
Model Number :
SF-MP412
Certification :
CE,UL
Place of Origin :
China
MOQ :
1set
Price :
negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50sets per month
Delivery Time :
20-30 days
Packaging Details :
Wooden packing
Voltage :
380V/50HZ
Usage :
bottle Printer
Condition :
New
Warranty :
1 Year
After-sales service provided :
Engineers available to service machinery overseas
Automatic grade :
Automatic
Color & page :
Multicolor
Weight :
6500KG
Plate type :
Screen Printer
Dimensions(l*w*h) :
4740*3140*2350mm
Gross power :
45KW
Application :
silk screen printing
Type :
Silk Screen Printing,hot stamping printing,automatic machine
Printing size :
(25-100)x(25-100)xH(40-250)
Description

4 Colors All Automatic Silk Screen Printing Machine for irregular shapes products

Product specification:

Model SF-MP412
Product size Round φ(25-100)x H(40-250)mm
Max speed 60pcs/hour
Air pressure 5-7 mpa
Dimensions L474xW314xH235
Power supply AC380V 50/60Hz 45Kw

Based on the design concept of universal automatic silk screen printing and hot stamping,

the machine can carry out partial or 360°whole circle silk screen printing and hot stamping on the surface of rubber/plastic/glass container with irregular shapes such as round,cone,triangle,polygon(24 sides),and print exquisite packaging patterns of one color to six colors with full servo and high efficiency.

1.This machine is full servo system, can save very much labor for changing different products ,

shorten the adjustment time, working would be more easier.

2. All servo driven screen printer with best accuracy.

3. All jigs installed with servo motors for rotation(no need gears ,easy and fast product changeover)

4. colors print in 1 process

5. Auto UV curing after printed ,electric UV system with high efficiency.

1.4-color overprint

4 Colors Automatic Screen Printing Machine 45KW For Irregular Shapes Products

2. Anti-static system:

4 Colors Automatic Screen Printing Machine 45KW For Irregular Shapes Products

3. Bottle bottom orientation

4 Colors Automatic Screen Printing Machine 45KW For Irregular Shapes Products

4. Automatic loading system

4 Colors Automatic Screen Printing Machine 45KW For Irregular Shapes Products

5. Silk screen printing

4 Colors Automatic Screen Printing Machine 45KW For Irregular Shapes Products

6. Automatic Unloading system

4 Colors Automatic Screen Printing Machine 45KW For Irregular Shapes Products

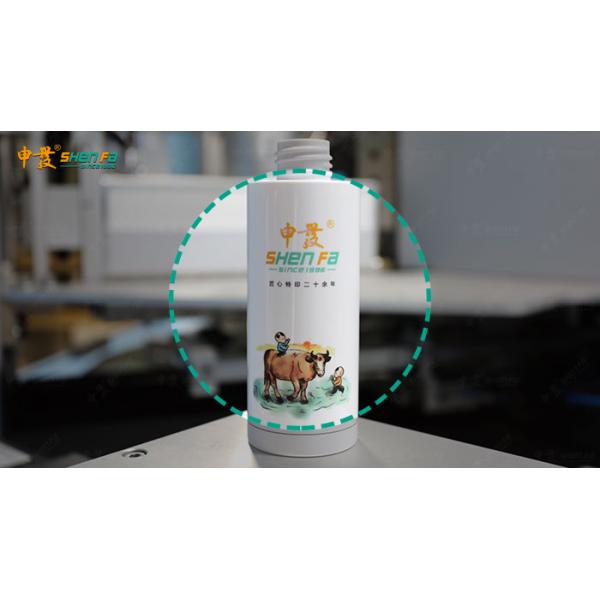

7.Printing samples

4 Colors Automatic Screen Printing Machine 45KW For Irregular Shapes Products

4 Colors Automatic Screen Printing Machine 45KW For Irregular Shapes Products
