Specifications
Brand Name :
GATECH
Model Number :
GR300AL
Certification :
CE,ROHS
Place of Origin :
China
MOQ :
50
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
2000 sets per month
Packaging Details :
Carton package
Type :
300kg rolling shutter motor
Color :
Blue,Green,Red
Phase :
Single Phase
Product name :
electric AC rolling shutter motor
Warranty :
1 year
Material :
AluminiumCopper Wire,Aluminum alloy and ABS
Application :
Shopping mall
Copper :
Aluminum wire
Description

Ac 220V Single Phase 300Kg Rolling Shutter Motor With 1 Year Warranty

GATECH specializes in the production of rolling shutter door motors and their control systems. Our main production lines include AC and DC rolling door motors. This roller shutter motor has been continuously exported for more than ten years and is our hot selling product, it adopts the most advanced production technology and the latest technology to provide reliability in multiple functions.

Features

1. It can be installed on both sides.

2. Electric and manual can be easily operated.

3. The rolling shutter door motor has beautiful design, advanced structure and strong power.

4, using imported components, safe and stable.

5. The motor has low noise, small vibration and low power consumption.

6. Light weight, small size, easy installation, durable and reliable performance.

7. Overheating protection: When the temperature of the rolling shutter door motor exceeds 110 degrees Celsius, it will automatically stop working, and it will restart when the temperature returns to below 70 degrees Celsius.

Model

Rated voltage

(V/Hz)

Max lifiting force

(kg.f)

Rated output torque

(N.m)

Rated output speed

(r/min)

Motor power

(w)

Max lifiting height

(m)

Standard Barrel Dim(inch)
GR300AL 220/50 300 225 5.4 200 6 6''

See application and details of rolling shutter motors

Single Phase 300Kg Rolling Shutter Motor Electric Ac 220V
Single Phase 300Kg Rolling Shutter Motor Electric Ac 220V
Single Phase 300Kg Rolling Shutter Motor Electric Ac 220V
Single Phase 300Kg Rolling Shutter Motor Electric Ac 220V

Packing

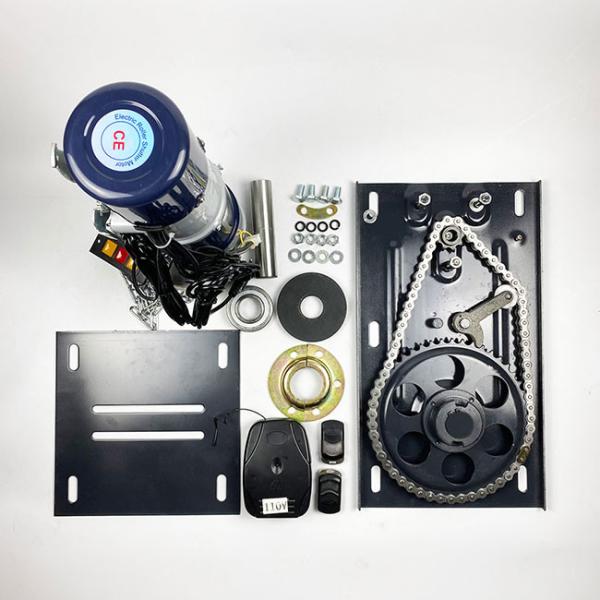

our set is packed into two cartons with foam inside

carton 1: motor and remote

carton 2: brackets and other accessories

Terms of Shipping ----

By express:DHL.UPS.TNT.EMS..etc.

Air or Sea Freight: Goods will be delivered by air or sea according to customer's request.

Agent designated by client:Please ues the contact detail of your shipping agent and we will arrange the delivery.

FAQ

1. Do you have your own factory?

Yes, We are a professional manufacturer of rolling door motor in zhangzhou, we have our own factory and welcome your visit.

2. What is your delivery time?

The time of delivery is about 15 days after receiving deposit, this is decided by order quantity.

3. What is the term of payment?

We accept 30% T/T in advance, and 70% against copy of B/L before shipment.

4. Can you make an OEM for me?

Yes! OEM orders is acceptable, please let's know your requirements, we'll offer you a reasonable price and make samples for you ASAP.

5. Do you provide sample?

Yes, we can provide you with sample, but there's a charge for the sample and shipping cost.
