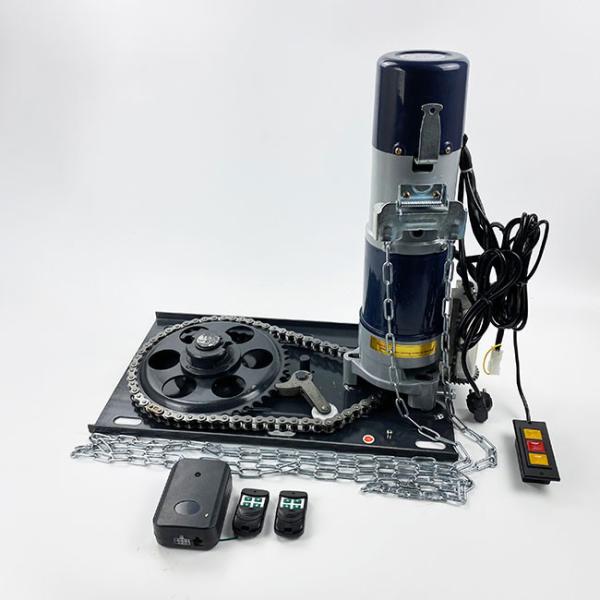

Ac 380v Three Phase 2000kg Copper Garage Roller Shutter Motors Industrial Use

Garage door rolling door motors have been widely used in our lives.Such as buildings, garages, shopping malls, factories, warehouses, docks, airports, etc.As a standard accessory for garage doors, it brings people the most convenient way to open them, saving time and effort. Our rolling door motor has its excellent quality.

1. Nice designs with powerful drive.

2. With overheat protection, overload protection.

3. Easy to install and maintain, long useful life.

4. Could operate by remote control, push button, and manual chain.

5. Could work with UPS, so without worrying about power off.

6. With Chain-break protection device, could also work with safety by brake, ensure the safety of your life and property.

7. bracket size:505*280*3.0/ 280*280*3.0, 495*280*3.0/280*280*3.0, also other size can be chosen

1. Beautiful shape, advanced structure, strong power;

2. Using imported electrical components, safe and stable;

3. Low noise, small vibration and low power consumption;

4. Ligh weight, small size, easy installation, long life, reliable performance;

5. Manual operation is convenient in course of power failure, and power storage device can also be equipped;

6.It could be equipped with remote control assembly to realize remote operation; With motor operation overheating protection device.

Installation Precautions

●The roller shutter door motors should be installed exactly horizontally with precision.

●The roller axle of the shutter should be homocentric and horizontal .

●The roller shutter should be free of any obstructions.

●The vertical hanging length of the chain must be adjusted within 3-6mm-adjustment should be made before hanging the shutter onto the roller axis.

●It is strictly forbidden to pull on the motor down lead.

●External power cord should be ≥1.0mm diameter.

●Special attention should be given to protecting the motor from humidity and rain, to prevent short-circuiting.

●The motor must be satisfactorily to prevent potential injury from shocks .The earthing connection bolts should be fixed to the chain wheel support board or electric appliance control box.

●The switch box has to be installed on the dry wall and placed at a high of over 1.5 meters high, this is to ensure that children couldn’t operate and remote controller.

●The disabled and the people lack of experience (including the children) are forbidden to operate the shutter door motors,unless they are guarded by someone could respons for their safety or reading the instructions carefully in advance.
