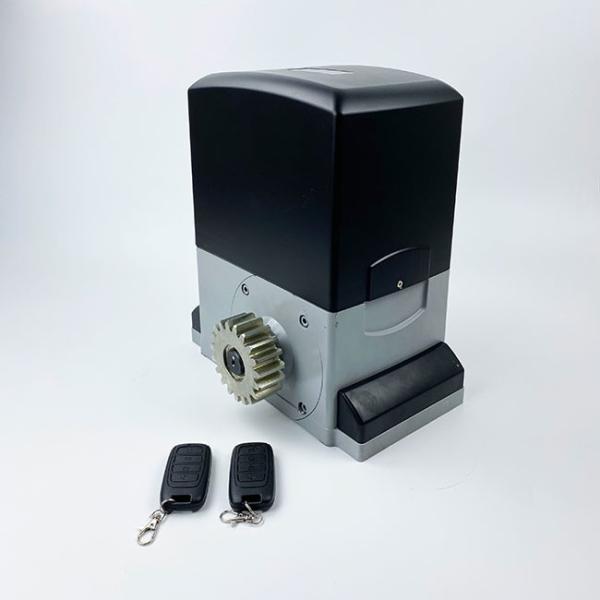

3T Auto Gate Motor For Automatic Sliding Gate 50Hz Single Phase 230V 750W
3T Auto Gate Motor For Automatic Sliding Gate 50Hz Single Phase 230V 750W
3T Auto Gate Motor For Automatic Sliding Gate 50Hz Single Phase 230V 750W
3T Auto Gate Motor For Automatic Sliding Gate 50Hz Single Phase 230V 750W
3T Auto Gate Motor For Automatic Sliding Gate 50Hz Single Phase 230V 750W
3T Auto Gate Motor For Automatic Sliding Gate 50Hz Single Phase 230V 750W
Specifications
Brand Name :
GATECH
Model Number :
G30
Certification :
CE
Place of Origin :
China
MOQ :
50
Price :
Negotiation
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
2000 sets per month
Packaging Details :
Carton package
Name :
Smart Gate Motor Sliding Opener
Open style :
Sliding
Color :
Red,Purple,Orange
Material :
Aluminum
Type :
Entry Doors
Feature :
Waterproof
Frame finishing :
Powder Coated,Galvanized+PVC Coated
Frame material :
Metal
Opening pattern :
Automatic
Metal type :
Aluminum
Surface treatment :
Galvanized
Application :
Industrial,Shop,Store
Usage :
Hospital,House,Villa,Factory
Size :
Width 27cmX Height 32cm
Advantage :
Easy entrance,Safety,Convenient
Alarm lighting :
Optional
Description

Heavy Duty AC 3000kg Sliding Door Motors Industrial Use

GATECH automation achieves maximum power with Maxi series heavy duty sliding door motors.This industrial sliding door opener is made entirely of high-strength components and is designed for the automation of very heavy sliding doors (up to 3000 kg).

G30 Industrial Use

Power Supply220V +/- 10%, 50Hz- Single Phase
Power of motor750W
Output Pinion19 Tooth Mod 4
Operating Speed12m/min
Motor CoolingDirect Drive Fan (1400RPM)
Ambient Temperature RangeFrom-37'F (-35°C) to 149.F (+65'C)
Motor Thermal ProtectionElectronic
Maximum Gate length20m
IPRating44
Shipping Mass of Unit19 kgs(~ 42 Ibs)
Maximum Gate Mass3000 kgs ( ~ 6615 lbs)


Limit Switch Type: Magnet or Spring limit
Without Electricity: Manual, Key Usage
Warranty Perriod: 2 year
Extented Warranty: Available

perator 230V for sliding doors up to 3000 kg. Leaf speed 12m/min. Limit switch electromechanical. Equipped with a mechanical safety clutch.

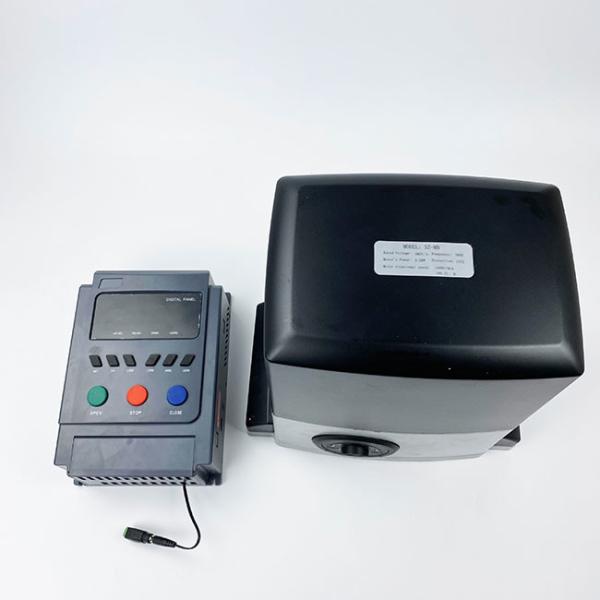

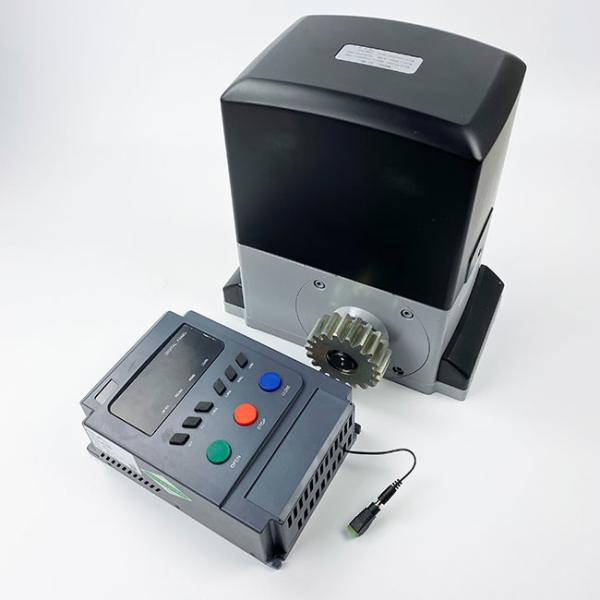

Application: Control unit for 1 230V operator for sliding doors
Board power supply: 230V single-phase
Operator Power: 230V 750W
Key Features: Removable terminal blocks with new standard color coding, simplified scene-based programming
Built-in dual-channel receiver, opening and closing deceleration
Main functions: automatic reclosing, quick closing, pedestrian opening

The package includes:
Gear Motor, 2x Remote Controls, Safety Sensors, Directional Lights, Rack and Pinion

G30 series is light duty gate motors and support standard sliding gate with 3000kg in weight.Galvanized steel gear rack is one of the necessary for this gate motor to work.

Remote controls for 3000kg sliding gate openers
3T Auto Gate Motor For Automatic Sliding Gate 50Hz Single Phase 230V 750W3T Auto Gate Motor For Automatic Sliding Gate 50Hz Single Phase 230V 750W



FAQ


What is the input voltage for this gate motors ?
220V input voltage.

What is the Max weight of gate?
Max weight supporting is 3000kgs.

How many models do you have for sliding gate openers ?
G6,G8,G15,G20,G30

What is the frequncy of your remote control for this sliding gate motors?
Remote control models are 433Hz.

What is the longest remote control distance in meters?
Long range distance reach 100m.

How many gate motors can be controlled by a remote control?
4 gate motors for a remote control.

Is there a requirement for the MOQ?
One unit is available,but it is sample cost. For large quantity,Please negotiable with us.

What kind of payments do you support?
Payment<=5000USD, 100% T/T in advance. Payment>=10000USD, 30% T/T in advance ,balance against of copy of B/L.If you have another questions, pls feel free to contact us.

What is your warranty terms?
2 year warranty

How long is your delivery time?
For standard products, 10-25 days are available.
