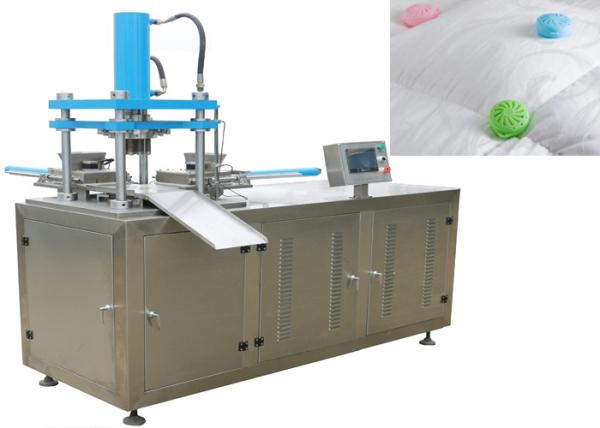

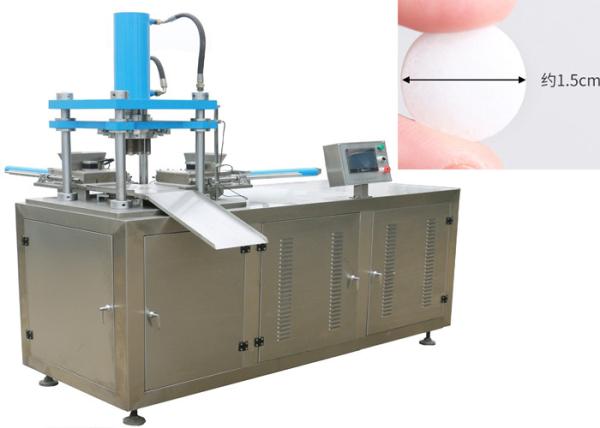

Single Punch Tablet Making Machine For Naphthalene Ball Powder Hydraulic Press Machine

Features of Hydraulic Tablet Press Machine:

Economical and practical ,hydraulic control adopt insert type compact valve system,with reliable operation,long service life,minimized hydraulic shock, minimized duct connection and possible leak point. Two operation model, pressure regulation and stroke regulation which can be selected through operational panel,with the character of pressure-keeping and time-delaying, Delay time is adjustable, working pressure and stroke can be adjusted within the prescribed scope.Adopting centralized control buttons, with both manual and semi-automatic operation mode.

1.There are slot in slider and workbench,easy to put mold.
2.PLC control,photoelectric protection device are available.
3.With centralized control button, manual and semi-automatic two mode of operation.
4.The overall casting body,with high strength,good quality.

Instruction of Hydraulic Tablet Press Machine:

1.The machine adopts integral cast steel,with good rigidity and not deformed.
2.Accessories are imported and domestic well-known brands.
3.With advanced technology,low energy consumption, high speed, low noise and high efficiency
4.Activity crossbeam has safety limiter in both up and down directions
5.Equipped with photoelectric protection device, could guarantee the safety of the operation
6.With the function of automatic and manual, it’s convertible
7.Two operation model, viz. pressure regulation and stroke regulation which can beselected through operational panel, and has the character of pressure-keeping andtime-delaying

Technical Parameters of Hydraulic Tablet Press Machine:

Design Characteristics

High efficiency, low-noise
Well hydraulic control
Excellent quality
Can add Press Brake Mould for Bending Function
Table can be lifted through a chain driven by the main cylinder

Optional Special Device

Manual Book
Foot Pedal
Micro-switch for traverse adjustment
Hydraulic press include replaceable top tools V-block and support table with stops.
Operating modes: Semi-automatic

Tablet press machine is continuous automatic, it is the pharmaceutical, chemical, food processing, electronics and other industrial department granular materials into one of the necessary equipment, it is suitable for small batch production, laboratory, hospital departments such as pressing tablets, catalyst, sugar tablets, calcium tablets, coffee, powder metallurgy, electronic components and various agricultural fertilizer agent, etc.It can suppress all kinds of special-shaped, ring tablet, and can suppress double-sided engraved with trademarks, text and simple graphics tablets, because of the pressure, strength, particularly suited to suppress difficult molding powder tablets, such as ceramic powder, metal powder, etc

(1). Excellent performance, strong adaptability, convenient operation.
(2). Machine has big pressure, could press big tablet, for small capacity.
(3). Material filling and depth adjusted.
(4). Machine could be operated by electricity and hands.
(5). Machine could press different tablet size and tablet shape by changing mould.
