Residential SL600ACL Chain Drive Automatic Sliding Gates Opener AC110V/220V Power Supply
Residential SL600ACL Chain Drive Automatic Sliding Gates Opener AC110V/220V Power Supply
Residential SL600ACL Chain Drive Automatic Sliding Gates Opener AC110V/220V Power Supply
Residential SL600ACL Chain Drive Automatic Sliding Gates Opener AC110V/220V Power Supply
Specifications
Brand Name :
SINOMATIC
Model Number :
SN-SL600ACL
Certification :
CE/ ISO
Place of Origin :
Shenzhen, China.
MOQ :
Sample order accepted
Price :
negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
10,000 pcs per month
Delivery Time :
5-10 working days after payment received
Packaging Details :
Carton/Plywood box/Pallet
Max gate weight :
600kg
Power supply :
AC110V/220V
Motor Power :
280W
Max gate length :
8m
Application :
outdoor
Remote control distance :
30M
Description

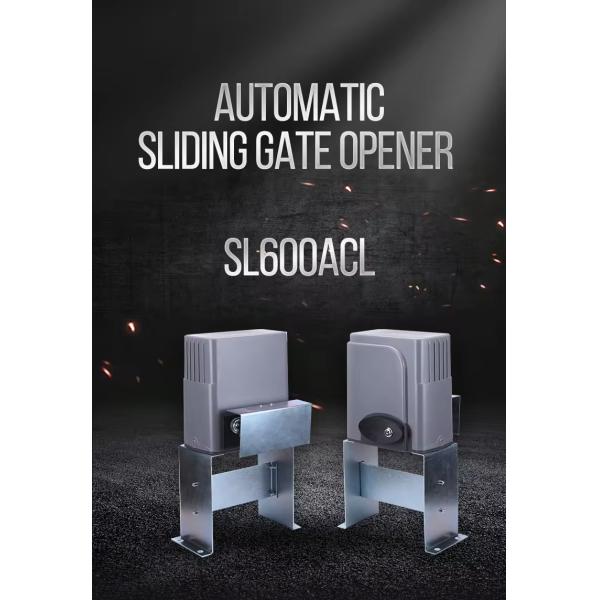

SL600ACL SLIDING GATE OPENER

The SL600ACL gate opener designed for residential use, weight up to 600 Kg and operating distance up to 8 meters, Chain driven.

PRODUCT ADVANTAGES

Compact structure, cost-effective.

Built in control board

Keypad / single button interface.

Alarm lamp, Photo beam & safety beam interface.

User can select auto-close function.

Optional for spring limit switch and magnetic limit switch

Manual key release design for emergency purposes.

Automatic stop when hitting obstacle during opening, auto-reverse when hitting obstacle during closing. (Smart version)

MAIN FEATURES

1. AC motor with built-in control unit

2. Keypad/single button interface

3. Alarm lamp, photo beam and safety beam interface

4. User can select auto-close function

5. Soft start and slow stop(smart version, optional)

6. Auto-reverse function when hitting obstacle during closing(smart version, optional)

7. Manual key release design for emergency power failure

8. Chain driven with built-in control board.

9. RF Hopping Code Technology prevents your remote code from being accessible to others.

10. This powerful sliding gate operator can open gates that are up to 8 meter long and weigh 600KG.

11. In case of a power outage or an emergency you may also use manual release key.

TECHNICIAL SPECIFICATIONS

Unit Model SL600ACL
Power Supply 220V,50Hz;110V,60Hz
Max. Gate Weight 600KG
Motor Power 280W
Gate Moving Speed 11-13 m/min
Limit Switch Spring (mechanical) / magnetic
Recording of up Remotes 20 pcs / 44 pcs
Decoding / Frequency Rolling code / 433.92MHz
Work Duty S2 15min
Noise ≤58dB
Work Temperature -20°C~70°C
Gross Weight 16KG

Residential SL600ACL Chain Drive Automatic Sliding Gates Opener AC110V/220V Power Supply
Installation

Before You Start
· SL600ACL Sliding Gate Automation Kit is suitable for powering the opening and closing motion of gates up to 600kg in weight, up to a length of 12m. (Standard kit contains a 6m chain, if the gate length is over 5.5m, please consider to extend the length of the chain.)
· Gate motion is achieved by the rotating output sprocket of the gate opener driving the chain fitted to the moving gate.
· The gate opener requires you to press the remote control once to open, and once again to close. This is a safety feature to ensure safe operation.
· The gate opener itself must be fitted within private property, never externally to a property’s boundary.
Tools Required
· Tape measure
· Level
· 12mm concrete drill and hammer (when uses expansion screws)
· Phillips head screwdriver
· Straight screwdriver

FOR MORE DETAILS, PLEASE CLICK THE BELOW LINK TO DOWNLOAD THE USER MANUAL.

SL600ACL User Manual.pdf
