Specifications
Brand Name :
SINOMATIC
Model Number :
SN-BG102
Certification :
CE/ ISO
Place of Origin :
Shenzhen, China.
MOQ :
Sample order accepted
Price :
negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
3,000 pcs per month
Delivery Time :
5-10 working days after payment received
Packaging Details :
Carton/Plywood box/Pallet
Brand :
SINOMATIC
Motor :
AC motor
Material thickness :
2mm carbon steel
Arm length :
Max 6m
Boom type :
straight, folding and fencing
Warranty :
2 year
Speed :
1s, 1.8s, 3s, 6s
Voltage :
220V/110V
Rated power :
120W
Control mode :
Remote control, wire control
Description

5 Million Lifetime AC220V/110V heavy duty Orange blue color boom barrier gate

Introduction

This Automatic Barrier Gate provides a secure and convenient solution of stopping unauthorized vehicle or giving access to authorized vehicle, for parking lots with high traffic flow such as toll gate, shopping center, exhibition center, hospitals, airport etc.

Technician specification

Product Name Traffic Barrier Boom Gate/Parking Barrier Gate
Model Nuber SN-BG102
Operation Time 1s,1.8s,3s,6s
Arm Type Straight arm,fence arm,folding arm
Rating Voltage AC220V/110V±10%,50/60HZ
Power Supply 120W
Size 320*280*920mm(L*W*H)
Material 2.0mm thickness cold roll steel sheet
Remote Control Distance ≥30meters
Working Temperature -35℃ to +75℃
Packing

1030*380*450mm,with seven layers carton size

inside with air bubble film for protection
Delivery

By sea:big order(more than 100 sets) cheap,suggested

By Air or Express: sample order,quick and cheap,suggested
Payment T/T,Western Union,Moneygram, Credit card,Cash(according to your requirement)
MOQ 1 set

Production photo

Copper Motor 120W 6m Fencing Boom Automatic Barrier Gate

Details:

Copper Motor 120W 6m Fencing Boom Automatic Barrier Gate

Copper Motor 120W 6m Fencing Boom Automatic Barrier Gate

DIFFERENT SPEED WITH BOOM LENGHT AND BOOM TYPE FOR YOUR CHOICE

Model No. (BG) Open/Close Speed Max Boom Length Boom Type
102-16 6 sec 6m straight boom
102-13 3 sec 4.5m straight boom
102-11 1 sec 3m straight boom
120-26 6 sec 5m 90 degree,Articulated boom
102-23 3 sec 3m 90 degree,Articulated boom
102-36 6 sec 5m 180 degree,Articulated boom
102-33 3 sec 3m 180 degree,Articulated boom
102-46 6 sec 4.5m Two-level, fence boom
102-56 6 sec 4m Three-level, fence boom

MACHINE CORE DIAGRAM

Copper Motor 120W 6m Fencing Boom Automatic Barrier Gate

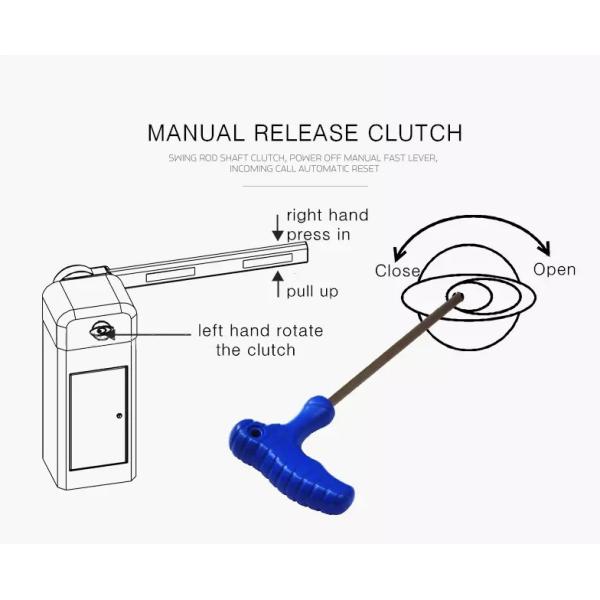

MAIN RELEASE CLUTCH

Copper Motor 120W 6m Fencing Boom Automatic Barrier Gate

CONTROL BOARD

Copper Motor 120W 6m Fencing Boom Automatic Barrier Gate

PRODUCT ACCESSORIES

Copper Motor 120W 6m Fencing Boom Automatic Barrier Gate

FUNCTIONS & FEATURES

1. For security, the barrier will automatically go back when meet obstacles during closing.

2. Beam can be chosen from 3 meters to 6 meters, and barrier closing time is also arranged from 1s to 6s.

3. All the operation process is soft without any noise and shaking.

4. Infrared photocell interface, Loop detector interface and IC system interface are reserved for the other functions.

5. Green light and red light are used inside for indication the position of the beam.

6. Manual release device to operate the barrier when power failure.

7. Barrier motor with die-casting aluminum alloy is high-hermetic and easy for heat dissipation.

8. Motor cooling fan to avoid the over-heating possibility.

9. Auto closing realization through menu setting on the control panel.

10.Wire control, remote control optional

11 Infrared protection (requires correlation infrared device)

CASE DISPLAY

Copper Motor 120W 6m Fencing Boom Automatic Barrier Gate

FAQ

Q: What's your monthly production capacity for barrier gate?

A: 1000 units.

Q: What is the warranty for the machine?

A: 12 months.

Q: When will you make the delivery?

A: In general, Regular products: 2-7 days.

Q: How does your factory control the quality?

A: Quality controlling from the beginning to the ending.

Q: What is your MOQ?

A: Any quantity is acceptable.

Q: Payment term?

A: 100% for sample. 30% deposit, 70% before delivery for volume order.
