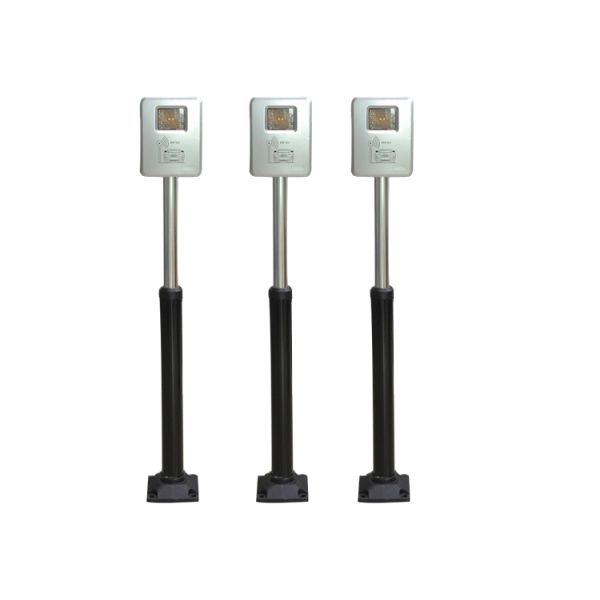

Infrared 38K RFID 433MHz RFID Long Range Reader Bluetooth RS485
Infrared 38K RFID 433MHz RFID Long Range Reader Bluetooth RS485
Infrared 38K RFID 433MHz RFID Long Range Reader Bluetooth RS485
Infrared 38K RFID 433MHz RFID Long Range Reader Bluetooth RS485
Specifications
Brand Name :
SINOMATIC
Model Number :
SN-BTR01
Certification :
CE/ ISO
Place of Origin :
Shenzhen, China.
MOQ :
Sample order accepted
Price :
negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1,000 pcs per month
Delivery Time :
5-10 working days after payment received
Packaging Details :
Carton/Plywood box/Pallet
Product name :
Bluetooth reader parking system
Material :
Aluminium alloy
Power supply :
12V DC/3A
Interface :
VG26/34, RS485
Reading distance :
3-15 meters
Frequency :
Infrared 38K, RFID 433MHz
Description

PRODUCT DESCRIPTION

RFID Bluetooth Long Range Reader Introduction

The SN-BTR01 is a long range reader that reads RFID Long Range Cards in a highly secured single direction.

It has up to 15m reading distance.

The N-BTR01 has a high impact and scratch resistant mild steel housing and is 100% weatherproof for outdoor

applications. SN-BTR01 is an ideal unit for parking and vehicle control applications.

SN-BTR01 also able to connect directly to barrier gate using barrier gate output.

Infrared 38K RFID 433MHz RFID Long Range Reader Bluetooth RS485

RFID Bluetooth Long Range Reader Features

1.Long Range Reader: Up to 15 meters of reading distance with a long range card;

2.Reader Scanner parts in one single reader unit;

3.Encrypted tag ID and Secure Protocols between Reader and Tags;

4.Supports Standard Wiegand 26bit, 34bit, RS485 output;

5.Direct barrier gate Output (Open Collector : 1sec) OTR (One Time Reading) and HOLD Control Input;

6. Applications : Parking Control, Logistics Tracking, Asset Control, Personal Tracking.

Intelligent Bluetooth Reader

Design

Industrial Grade

ARM Architecture

Powerful Functions

Stable Performance

Working Mode

60° infrared scanning recognition

Dual-frequency complementary

Bidirectional way communication

Anti-Interruption

Multi-body code verification to prevent follow-up and interrupt from near channels

Signal mode

Strong and weak signals can be changed easily. Two working modes for outdoor use

Outputs

Relay output can be set randomly, open the barrier when card is read

Specification

Power: DC12V/3A

Interface: VG26/34, RS485

Read distance: 3-15m, Strong/weak mode

Frequency: Infrared/38K, RFID/433MHZ

RFID Bluetooth Long Range Reader Specifications

Power Supply DC12V/3A
Power ≤12W
Frequency Infrared/38K, RFID/433MHZ
Communications Interface RS485/19200bps;Wiegand 26bits;Wiegand 34bits
Eletrical Interface Loop detector input
Eletrical Output Relay
Reading Speed <0.2s / ≤80Km/h
Reading Distance 3-15m
Reading Range 60-degree tamper area
Working mode Standard outdoor mode (default);Indoor parking mode (adjustable)
Humidity 10%~90%
Installation

Reading head direction-free adjustment(defualt);

Railing (Optional)
Net Weight 5kgs
IP Rating IP65
Dimension 247*276*58(mm)
