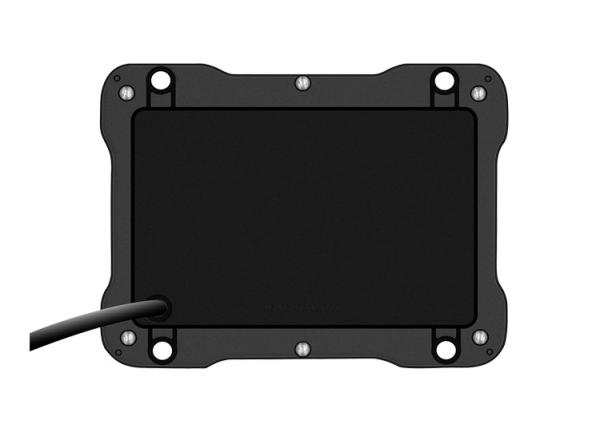

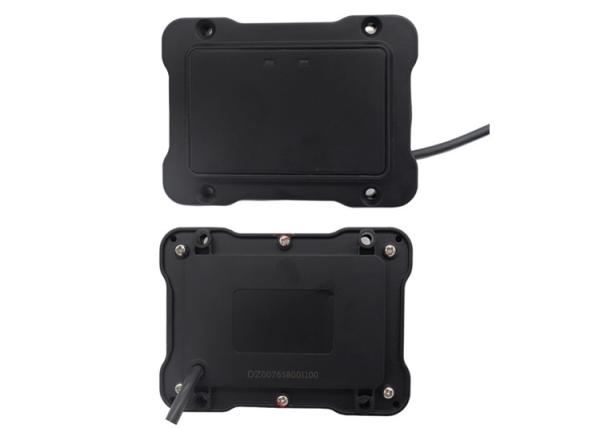

100ms Response Time 0m～6m Coverage Range Vehicle Radar Detector Sensor

Radar Vehicle Detector Brief Introduction

Radar Vehicle Detector is a non-contact detection device for targets such as vehicles and pedestrians. It works in the millimeter wave band.

The radar detector transmit linear frequency-modulated continuous wave signals to the target to perform high-speed real-time processing

on the target's reflected echoes to achieve fast target Detection.

Radar Vehicle Detector Advantages

The Radar Vehicle Detector has the advantages of convenient installation and maintenance, no need to damage the road surface, no impact on vehicle access, advanced technology, reliable and stable operation, high cost performance, convenient setting of working distance, all-weather and all-weather work, compatible with straight poles and billboards/fence Advantages such as brake lever application.

Product Specification

Specifications

• Center Frequency: 24 GHz
• Vertical Beam Width: 43°
• Horizontal Beam Width: 11°
• Coverage Range: 0 m～6 m
• Distance Adjustment Range: 2.0 m～6 m (8 levels);
• Response Time: 100ms;
• Signal Output: switching value.

2.2 Detection Accuracy

• Vehicle Inspection Miss Rate: 0.1%;
• Pedestrian Detection Miss Rate: 0.1%;
• False Detection Rate: 0.05%.

2.3 Mechanical properties

Dimensions: 105 mm×78 mm×26 mm; ·

Weight: 85g; ·

Waterproof: IP65

Supply Voltage Range: DC 6V～18V

Supply Current: less than 90 mA/12V. ·

Operating temperature: -40℃～+85℃; ·

Humidity: relative humidity 99% at 25℃.

2.4 Reliability

The equipment can work continuously day and night under the specified conditions, and the

Mean Time between Failure (MTBF) meets: MTBF≧15000 h.

3. Applicable Environment

This radar detector is only applicable to the scenario where the vehicle passes straight

through the barrier gate, and cannot be used when the vehicle turns through the barrier

gate.

4. Key Features

4.1 Blind Zone without Detection Distance

The closest distance of the radar detection target of the barrier gate is zero, which truly

realizes the work without blind spots.

4.2 All-weather Work

The working signal of the barrier radar detector is in the millimeter wave frequency band, with no need for special

heat dissipation. Under the weather conditions such as rain, snow, hail, haze, etc., it has the ability to work continuously

day and night. The detector shell has IP-65 waterproof requirements, there is no need to worry about rainwater entering

the radar and causing radar damage.

4.3 Detection Accuracy

With millimeter wave working signal, radar detector has high working frequency, directional

accuracy and strong anti-interference and so on excellent performance. The radar is not

interfered by the outside world and does not cause interference to outside electronic

equipment. The signal propagation attenuation is large, and the radiation signal strength is

in line with National environmental protection requirements. The detection rate of different

types of vehicles (including cars, trucks, and aluminum vehicles) is higher than 99.9%. When

the vehicle and the barrier radar are at a large angle, they can be reliably detected. The

detection rate of pedestrians is higher than 99.9%.

4.4 Work Reliability

The radar detector shell adopts a waterproof design that conforms to the IP-65 standard. The product has low

power consumption, adapts to extreme high and low temperatures, and works continuously day and night.

Under normal operating environmental conditions, the product will not be accidentally damaged.

4.5 Installation Flexibility

The barrier radar detector is installed and fixed on the outer surface of the barrier machine, and vertical irradiation

passes through the gate of the vehicle or pedestrian. The installation

is very convenient and flexible. For the gate openings of different widths, the radar has the

convenience of setting different sensing distances through the DIP switches, eliminating the

inconvenience of adapting to different distances by relying on computer downloading

software or delimiting the detection area.

4.6 Low Cost to Install and Maintain

The barrier radar is easy to install, maintenance-free, highly reliable and easy to replace. It

not only overcomes the problems of high construction cost and maintenance difficulties for

the installation of the ground sense coil that needs to damage the road surface by personnel, but also solves

the problem of barrier rod control.

4.7 Convenient Power Supply

The barrier radar detector adopts standard 12V DC power supply, which can adapt to

the 6V~18V power supply voltage range, adapt to large voltage fluctuations, and the power

supply current requirement is not large. It can be directly powered by the barrier control

panel, without the need for a separate power supply device.

4.8 Use Environment Adaptability

The barrier radar detector adopts the environment automatic detection technology, without human operation,

and can meet the application of straight pole barrier and

billboard/fence barrier. 5. Installation and Deb

The schematic diagram of radar installation and connection is shown in Figure

The barrier radar detector adopts standard 12V DC power supply, which can adapt to the 6V~18V power supply voltage range, adapt to large voltage fluctuations, and the power supply current requirement is not large. It can be directly powered by the barrier control panel, without the need for a separate power supply device.
