Security 550 Passage Width Full Height Sliding Double Wing 40 person per minute turnstile entry systems

PRODUCT DESCRIPTION

Elegant in appearance and yet meet the stringent specification of high security, safety and fast traffic throughput. It is fitted with stainless steel housing with centrally position glass barrier. The pedestal top is of stainless steel (as standard supply). Optional choice for the pedestal top are: wood or poly stone, to match the friendly environment and modern front lobby entrance.

APPLICATION

Sliding gate turnstile is arm at intelligent management of pedestrian access control, this kind of model often use in luxury office building, Luxury residential, subway, star hotel, and some other High-grade places.

Spotlight functions

1. Functions of breakdown self-checking and alarm warning;
2. Double Anti-Pinch function;
3. Anti-rushing function;
4. Doors can be adjusted into synchronization (for double machine core)
5. Automatic returning/resetting function.
6. One-way and two-way in and out control of passer

PRODUCT PARAMETER

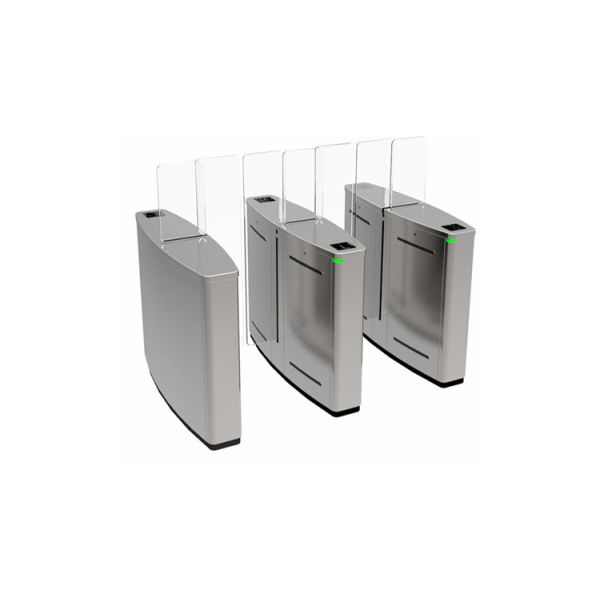

PRODUCT PHOTO

Features:

1. Fault detection and alarm functions, easy to use and maintenance.

2. The running status can be programmed and controlled with the built-in keyboard on the main board.

3. Mechanical antipinch function. If the gate meets resistance in the reset process, motors will stop working automatically within the prescribed time and reset again after the default delay (till fully reset).

4. Anti-breakthrough function. The gate is locked automatically until opening signal received.

5. Synchronization functions (for dual gates).

6. Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically.

7. Gate can be set as normally open or normally closed.

8. Can be used with variety of card readers: RFID readers, bar codes, fingerprints, etc. (Access controller needed).

9. Direction can be set as uni-direction or bi-direction.

10. LED direction indicator.

11. Gate auto opens when power off and auto close when power on, complying with fire safety requirements

12. Alarm function, in case of illegal intrusion and reverse intrusion

13. Support infrared photocell for anti-pinch and reset function

Compatible with all kinds of access control
