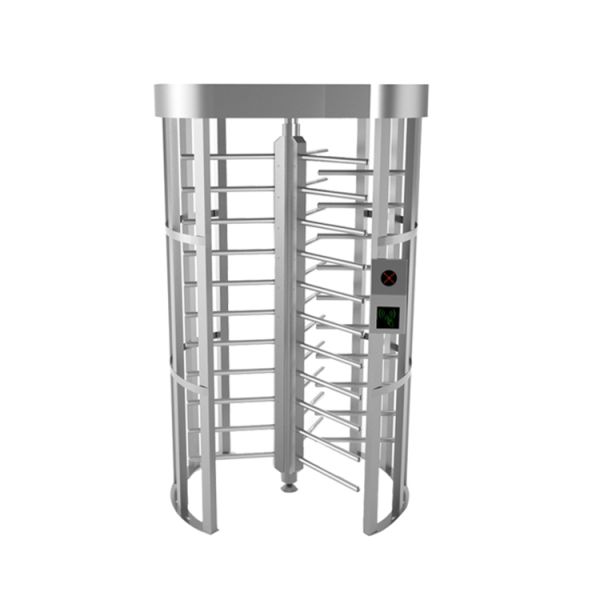

High Security 120 Degree Semi-automatic Full Height Turnstile Access Control System

Product advantages

• Staninless steel material strengthen the entrance security grade.
• Only authorized pederstrian allow enter and exit at a time.
• 3 or 4 units 90 degree bending arm ensure pedestrian one by one pass through.

• The full height ensure the entrance site is unattended to save labor.
• When there is a fire emergency. It turns to free exit mode to help escape (default)
• Suitable for various scenarios, outdoor waterproof, corrosion resistant.

Technician specifications

Main function and features

1. Rainproof housing, anti-corrosion coating iron, 304 or 316 stainless steel.

2. Mechanical drive unit with solenoid locking mechanism eliminate the use of expensive electric motor and reduce maintenance cost.

3. If arm rotated more than half, it will auto-rotate to the next idle position. If arm rotated less than half, it will auto-rotate back to the current idle position.

4. Built in adjustable tensioner to control rotation force to minimize over rotation. Arm just need to be pushed lightly to rotate therefore even elderly or children are able to use the turnstile.

5. Turnstile can be configured to be bi-directional or uni-directional. Housing is locked with special key to avoid tampering.

6. Innovative and unique mounting surface ensures simple and convenient installation for system integrator.

7. Can be used with variety of access control devices: IC / ID card readers, bar-code scanner, fingerprints, etc. (Access controller needed)

8. Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically.

9. The mechanism is equipped with an automatic regulated hydraulic buffer device. There is no noise and impact when running.
