Gear Driven 800kg DC Motor Residential Automatic Door Opener / Sliding Door Motor/ Gate operator

PRODUCT DESCRIPTIONS

* DC24V motor with built-in control unit
* Optional connect backup battery
* Solar system compatible
* Keypad/single button interface
* Alarm lamp, photo beam and safety beam interface
* User can select auto-close function
* Soft start and slow stop(smart version, optional)
* Auto-reverse function when hitting obstacle during closing(smart version, optional)
* Manual key release design for emergency power failure

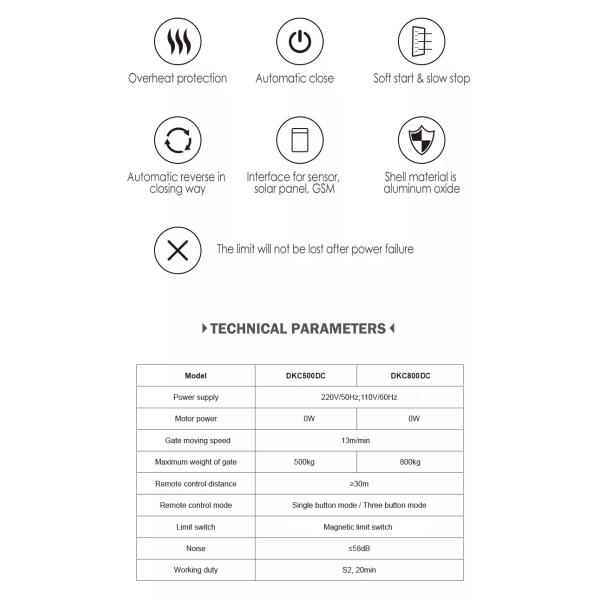

Technicial specifications

Function and features

1. The DKC500DC/DKC800DC gate opener designed for residential use, weight up to 500/800 Kg and operating distance up to 8 meters.
2. Compact structure, novel appearance, easy installation.
3. Built-in control board, optional for backup battery and solar charger.
4. MCU is supplied to control the gate opener.
5. Keypad / single button interface.
6. Alarm lamp, Photo beam & safety beam interface.
7. User can select auto-close function.
8. Magnetic limit switch, soft start & slow stop function.
9. Manual key release design for emergency purposes.
10. Automatic stop when hitting obstacle during opening, auto-reverse when hitting obstacle during closing.
11. Solar System compatible

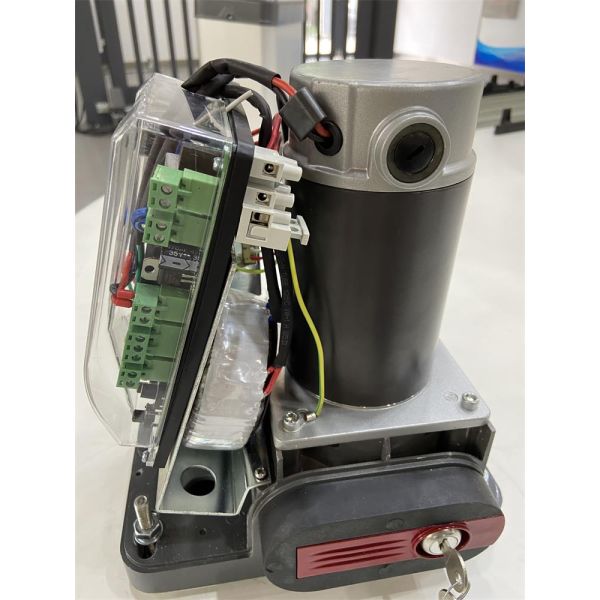

Product inside photo

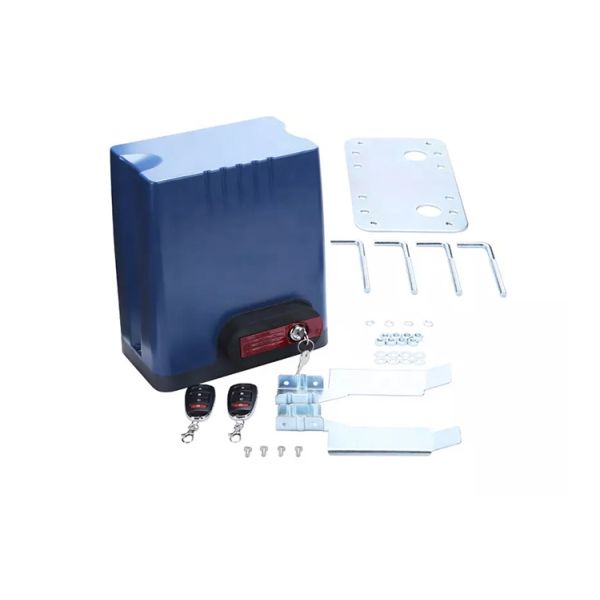

Optional Accessaries

• Metal Gear Rack & Nylon Gear Rack are optional, you can order the rack length accordig to your gate length;
• Photo beam sensor;
• Keypad systems;
• Push button;
• Warning light;
• Solar panel;
• Backup batteries;

Installation

DKC500DC/DKC800DC sliding gate opener is applicable to gate weight less than 500kg/800kg, and
length of the sliding gate less than 8m. The drive mode adopts the rack and gear transmission. This
gate opener must be installed inside the enclosure or yard for protection.

Installation procedures

Preparation work before installation
Please make sure that the sliding gate is correctly installed, the gate rail is horizontal, and the gate
can be manually moved smoothly before installing the gate opener.

Cable installation
In order to guarantee the normal operation of the gate opener and protect the cables from damages,
please bury the motor & power cable and controlling cable separately with two PVC tubes.

Concrete pedestal
Please cast a concrete pedestal with the size can be 400mm x 250mm, depth be 200mm in advance,
so as to firmly install DKC500DC/DKC800DC gate opener. Please make sure the distance
between the gate and gate opener is appropriate before casting the pedestal.

FOR MORE DETAILS, PLEASE CLICK THE BELOW LINK TO DOWNLOAD THE USER MANUAL.

DKC500DC, DKC800DC User Manual.pdf
